Netwerk-transceivermodule BlueOptics PAN-QSFP28-100GBASE-SR4-BO 100000 Mbit/s QSFP28

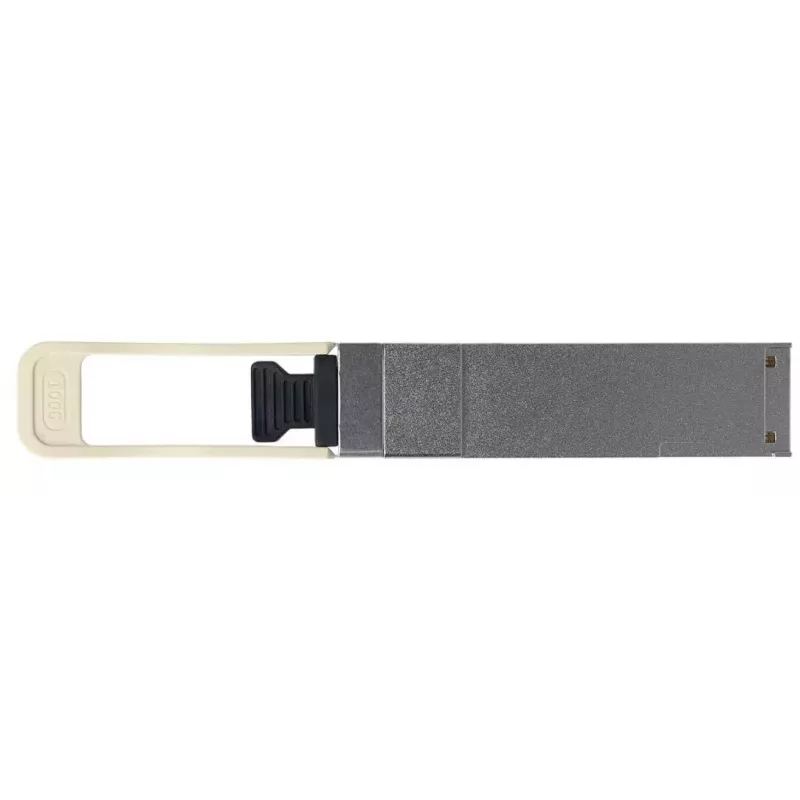

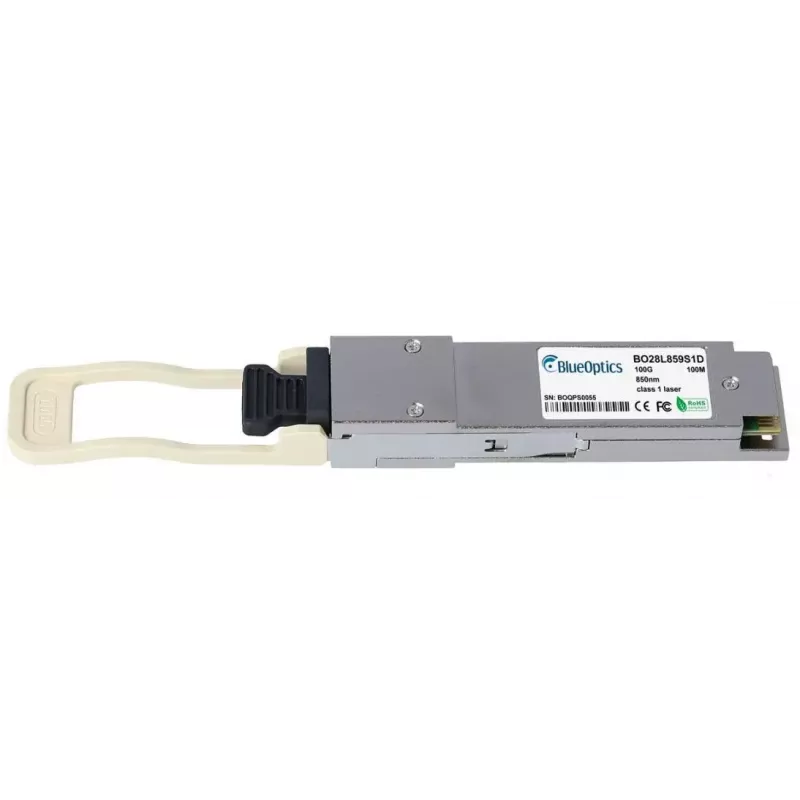

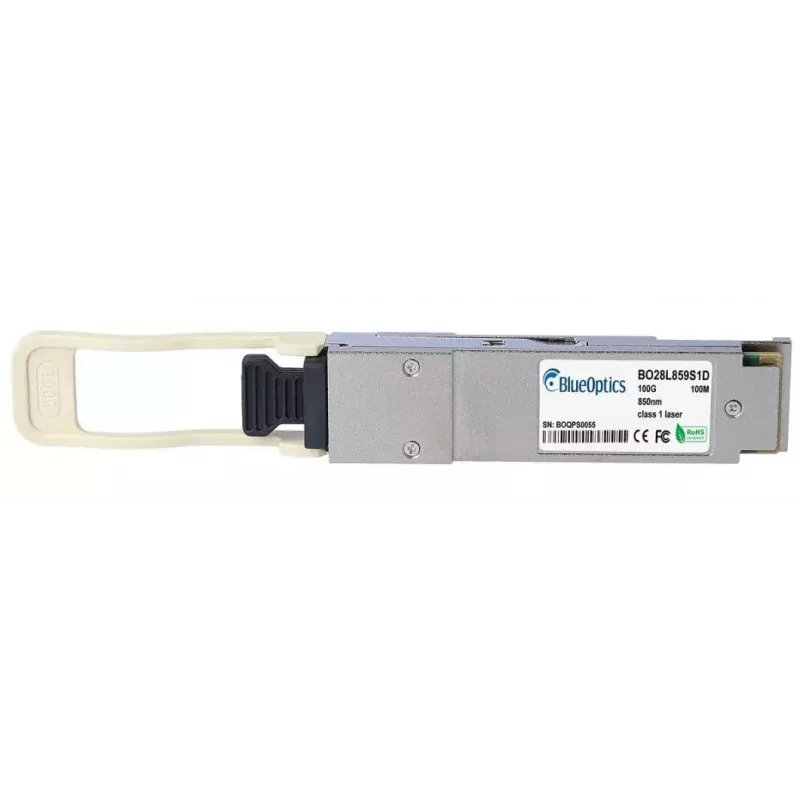

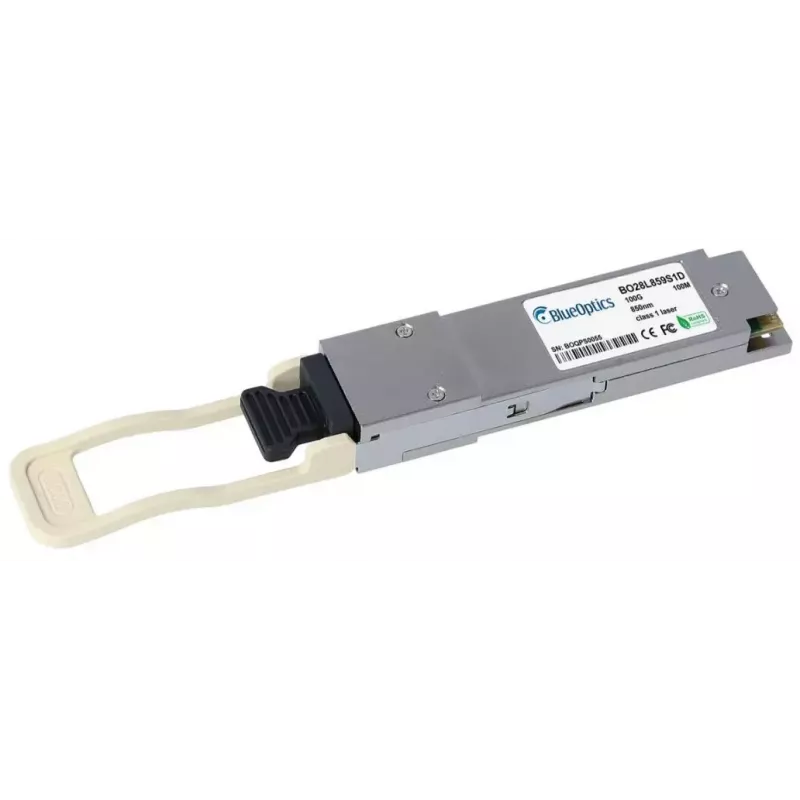

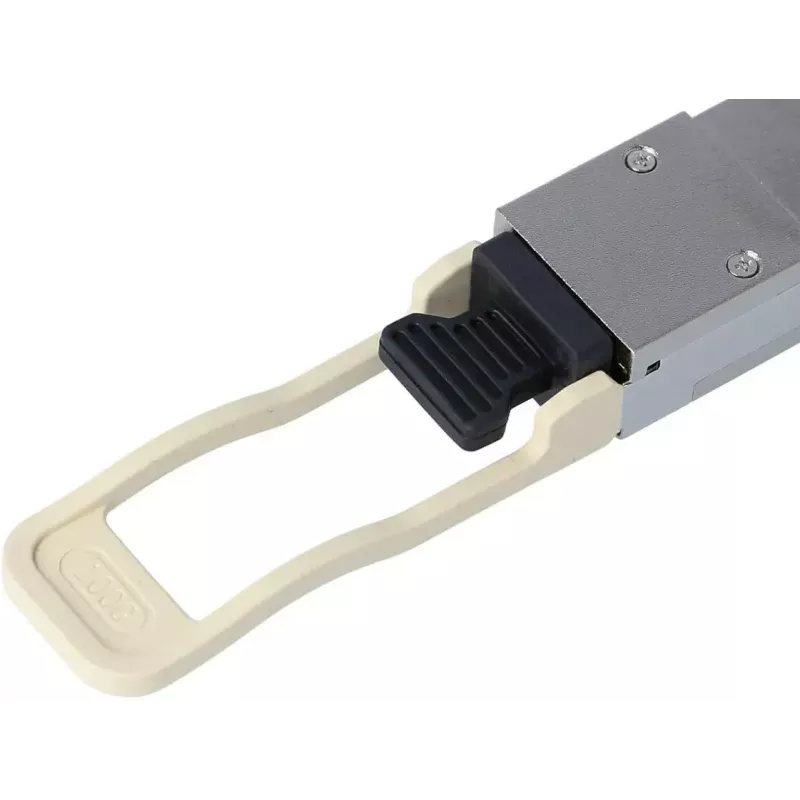

The BlueOptics PAN-QSFP28-100GBASE-SR4-BO is a 100G QSFP28 fiber optic transceiver module designed for multimode fiber links. It supports a maximum data transfer rate of 100000 Mbit/s and uses an MPO/MTP connector with 850 nm transmit and receive wavelengths. The module follows QSFP28 electrical and mechanical specifications and is compatible with hardware platforms that accept 100GBASE-SR4 QSFP28 transceivers.

Advantages

The module provides high-speed 100G data transmission over multimode fiber up to the vendor-specified distance for SR4 applications and includes digital diagnostic monitoring for real-time information on supply voltage, laser bias current, optical transmit and receive power, and temperature. Constructed to MSA-compliant QSFP28 form factor standards, it is intended for interoperability with systems supporting 100GBASE-SR4 optics and is lightweight at approximately 40 g.

Suitable for

• 100G aggregation links in data center switch fabrics
• High-performance interconnects between switches, routers, and storage systems
• Short-reach multimode fiber connections (SR4) within racks and across adjacent rooms

Key specifications

• Interface type: QSFP28
• Maximum data transfer rate: 100000 Mbit/s (100G)
• Connector: MPO/MTP (multifiber)
• Optical wavelength: 850 nm transmit and receive
• Fiber type: Multimode fiber (MMF) for SR4 applications
• Form factor: QSFP28 (MSA compliant)
• Weight: 0.04 kg
• Digital Diagnostics: DDM / DOM (SFF-8472 compliant)

How to use

Install the QSFP28 transceiver into a compatible QSFP28 slot on supported networking equipment following the equipment vendor's instructions. Connect an MPO/MTP multimode fiber patch cord to the transceiver ensuring correct orientation and polarity, and verify link status through the host device. If the host supports DDM/DOM, monitor optical parameters via the management interface for link verification and troubleshooting.

Recommendations

For optimal performance, use high-quality multimode MPO/MTP patch cords and ensure fiber type and link distance meet SR4 specifications. Verify host compatibility with 100GBASE-SR4 QSFP28 modules and enable digital diagnostics if supported to monitor link health. Avoid exposure of the optical interfaces to dust and follow ESD precautions when handling the transceiver.
