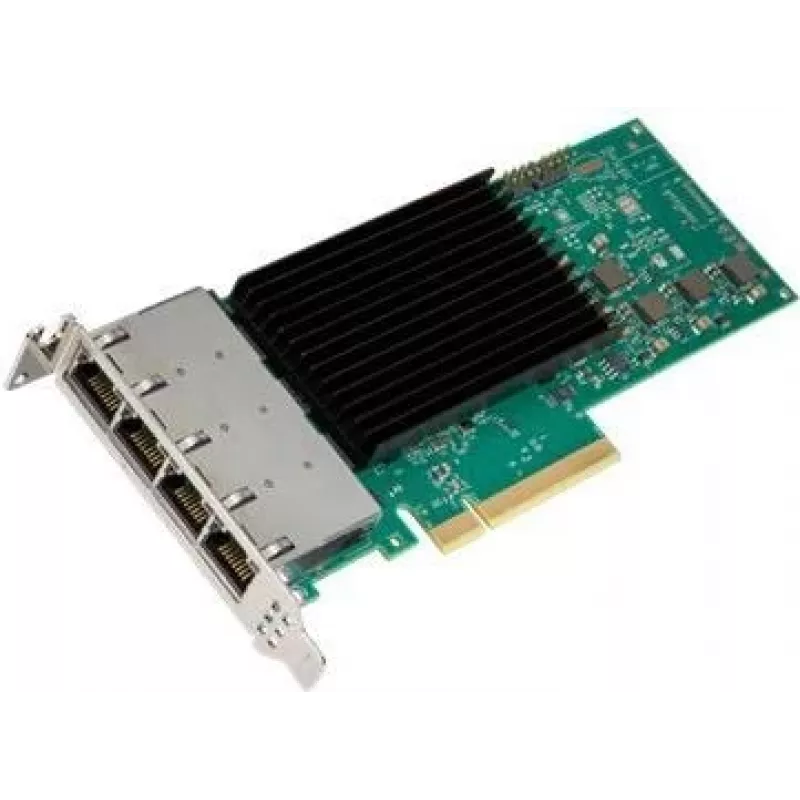

Netwerkadapter INTEL E610-XT4 PCIe 4.0 x8 10 Gigabit Ethernet 4 poorten

The INTEL E610-XT4 PCIe 4.0 x8 10 Gigabit Ethernet 4 ports network adapter is a multi‑port 10GbE card designed for servers and high‑throughput workstations. It provides four independent 10 Gigabit Ethernet ports over a single PCIe 4.0 x8 interface, enabling increased network capacity, reduced latency, and support for link aggregation and virtualization workloads. The card is compatible with standard PCIe x8 and x16 slots and is intended for integration into data center, storage, and enterprise network environments.

Advantages

The adapter offers four 10GbE ports on a single expansion card, allowing consolidation of multiple network connections while saving slot space. PCIe 4.0 x8 support increases available bandwidth to the host, reducing bottlenecks for high‑bandwidth traffic. Hardware features and driver support from the manufacturer facilitate offloading, efficient packet processing, and improved latency characteristics for virtualization and storage networking. The card’s form factor and cooling profile are suitable for 1U–4U server chassis and workstation builds.

Suitable for

• Virtualized server hosts requiring multiple 10Gb connections
• High‑performance storage networks and NAS systems
• Aggregation of multiple links for increased throughput and redundancy
• Workstations used for media editing, scientific computing, or data transfer tasks
• Edge and enterprise servers needing low‑latency network interfaces

Key specifications

• Interface: PCI Express 4.0 x8 (backward compatible with x8/x16 slots)
• Ports: 4 × 10 Gigabit Ethernet (10GbE) copper or SFP+ depending on module configuration
• Throughput: Up to aggregate 40 Gbps theoretical line rate across ports
• Form factor: Low‑profile/full‑height bracket options (adapter may include removable bracket)
• Offload features: Support for common network offloads to reduce CPU utilization
• Multiprotocol support: VLAN tagging, link aggregation (LACP), and virtualization features

How to use

Install the network adapter into an available PCIe x8 or x16 slot following the server or workstation manufacturer guidelines and ensure proper seating and bracket installation. Connect each 10Gb Ethernet port to the network using compatible cables or transceivers supported by the system. Install vendor drivers and firmware updates provided by the manufacturer to enable full functionality, offload features, and optimized performance. Configure network interfaces in the operating system or virtualization platform, set up link aggregation or VLANs as required, and verify link status and throughput with standard network diagnostics.

Recommendations

For sustained high throughput, use compatible PCIe 4.0 slots and ensure adequate airflow in the chassis. Match cable types and transceivers to the intended media (copper or fiber) and use certified components. Keep firmware and drivers up to date and validate settings in your OS or hypervisor to fully utilize link aggregation, offloads, and virtualization capabilities.
