Netwerkantenne Panorama Antennas LPAM-BC3G-26-3SP 26 dBi SMA

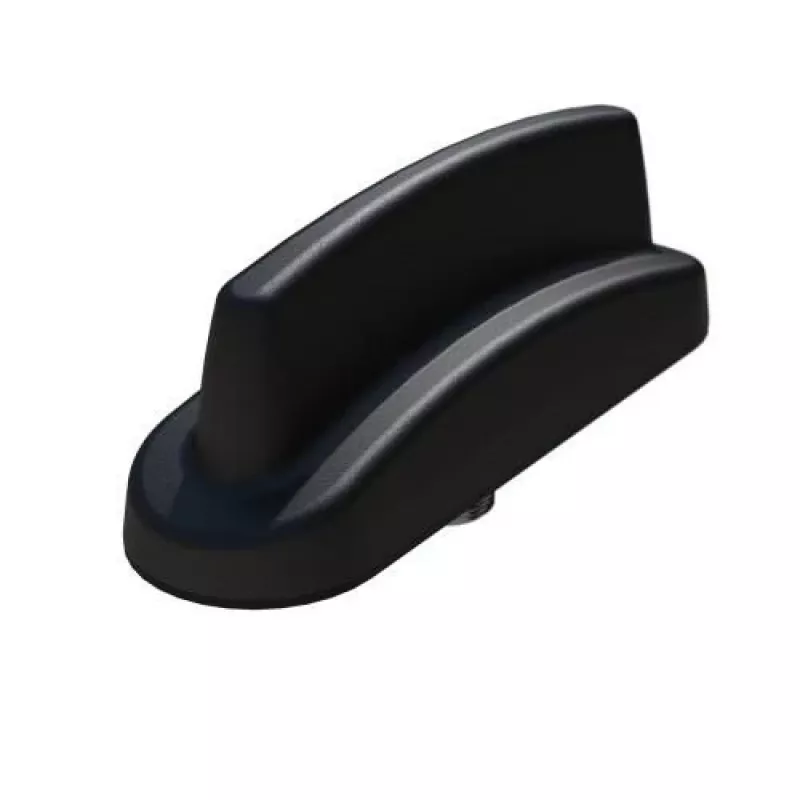

The Panorama Antennas LPAM-BC3G-26-3SP is a compact, weatherproof MiMo cellular/LTE network antenna designed for IoT and M2M applications. It houses two antenna elements with good isolation and low correlation, providing wide frequency coverage across 698–960 MHz and 1710–3800 MHz. The low-profile black enclosure includes integrated 3 m cables with SMA plug connectors and supports single-hole mounting with an acrylic adhesive sealing pad for secure, weatherproof installation.

Advantages

This antenna offers high gain (up to 26 dBi) in a compact, robust housing suitable for outdoor use. Dual-element MiMo design ensures improved link reliability and throughput for cellular and LTE connections across global bands. Supplied with 3 m cables and SMA plugs, it enables straightforward plug-and-play connectivity with compatible terminals and routers. The single-hole mounting bush and adhesive sealing pad simplify installation on non-conductive panels when required.

Suitable for

• IoT and M2M devices requiring cellular or LTE connectivity
• Fixed wireless installations and remote terminals
• Routers, gateways, and modems with SMA antenna ports

Key specifications

• Frequency range: 698–960 MHz and 1710–3800 MHz
• Maximum gain: 26 dBi
• Connectors and cable: integrated 3 m cables with SMA plug connectors
• Housing: weatherproof, low-profile, black

How to use

Mount the antenna using the single-hole mounting bush on a suitable surface; for non-conductive panels, use the included adhesive sealing pad to ensure a weatherproof seal. Route the integrated 3 m SMA cables to the terminal or router and connect the SMA plugs to the corresponding antenna ports. Position the antenna to maximise signal reception, keeping it clear of large metal obstructions for best performance.

Recommendations

Install the antenna as high as practical and maintain clear line-of-sight to the serving cell for optimal performance. Verify compatibility of SMA connectors with your equipment and secure cable runs to prevent strain on the connectors.
