Netwerkkaart InLine 51124I intern 2500 Mbit/s PCI Express bedraad

Robust M12 interfacefor industrial and professional network applications
High data rates10/100/1000 Mb/s & 2.5 Gb/s (auto-negotiation)
PoE/PoE+(up to 25.5 W) to power compatible devices
VLAN tagging, PXE bootand Wake-on-LAN support

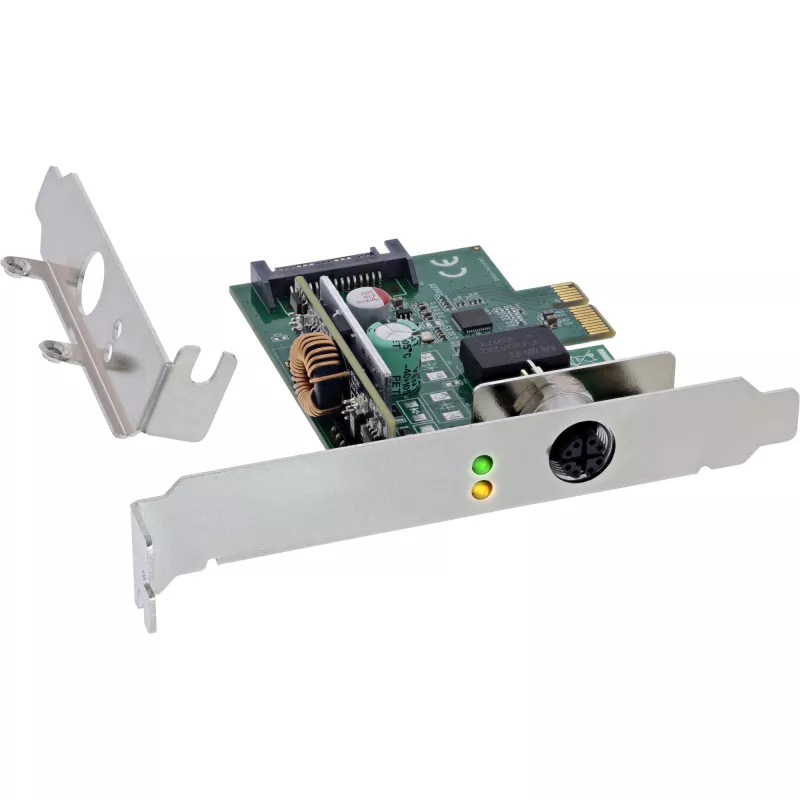

Standard and low-profile slot bracketsfor maximum compatibility;for maximum compatibility

The InLine® Gigabit network card was specially developed for robust and reliable network connections in industrial environments. Thanks to the M12 x-coded connection, it offers a secure and resilient connection that is ideal for use in machines, control systems and monitoring solutions. With a data rate of up to 2.5 Gb/s via the PCIe 2.1 x1 interface, it ensures fast and stable transmission of large amounts of data. Thanks to the integrated PoE+ support (IEEE 802.3af/802.3at), connected devices such as surveillance cameras, sensors or access points can be supplied with power directly via the network cable; a separate power source is not required. Additional functions such as Jumbo Frames (up to 16 KB) for more efficient data transmission, VLAN tagging for network segmentation, Wake-on-LAN for remote system startup and remote access to the network;for remote booting of systems and PXE support for network-based boot processes make the card a versatile solution for demanding network environments.
Technical data:

External: 1x M12 socket, 8-pin, x-coded
Internal: 1× PCI Express x1 (2.1), 1 x SATA 15-pin power connector
Bus type: PCIe v2.1, x1 lane (operational in x1, x4, x8, x16 slots)
Chip set: Realtek RTL8125B
Supported protocols: IPv4, IPv6
LED: Indicator for action (green) and connection (orange)

Supported IEEE standards:

IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Flow Control), IEEE 802.1Q (VLAN)
IEEE 802.3af (PoE) / 802.3at (PoE+)
IEEE 802.1P Layer 2 Priority Encoding - Prioritize network: Efficiently control QoS

Advanced functions:

Supports PXE (Preboot Execution Environment)
Supports RealWoW (Remote Wake-on-LAN üover the Internet)
Supports crossover detection and automatic correction
Supports Microsoft NDIS5/NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP)
Jumbo Frames: Up to 16 KB

Environmental conditions:

Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90%

Supported operating systems:

Windows: 11, 10, 8.1, 8, 7 (32/64 bit)
Linux: Native support for Fedora, SUSE, Ubuntu, Red Hat
DOS and Novell

InLine 51124I. Host interface: PCI Express. Country of origin: Taiwan. Chipset: Realtek RTL8125B. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Other operating systems supported: DOS, Novell. Width: 120 mm, Depth: 101.5 mm, Height: 21.5 mm

How to use

Install the card into an available PCIe x1 (or larger) slot in the host system and secure it with the provided bracket suited to the chassis (standard or low-profile). If PoE power is required, connect compatible PoE switches or midspans to the M12 port and, if necessary, attach the SATA 15-pin power connector for additional power. Configure network settings in the operating system using the supplied or native drivers; enable PXE in BIOS/UEFI if network boot is needed. Use VLAN and QoS settings on connected switches and in the driver to segment and prioritize network traffic.

Recommendations

For reliable operation in industrial environments, use shielded M12-compatible cables and verify PoE power budgets on switches. Keep operating temperature within the specified range and ensure firmware/drivers are up to date for best performance and compatibility.
