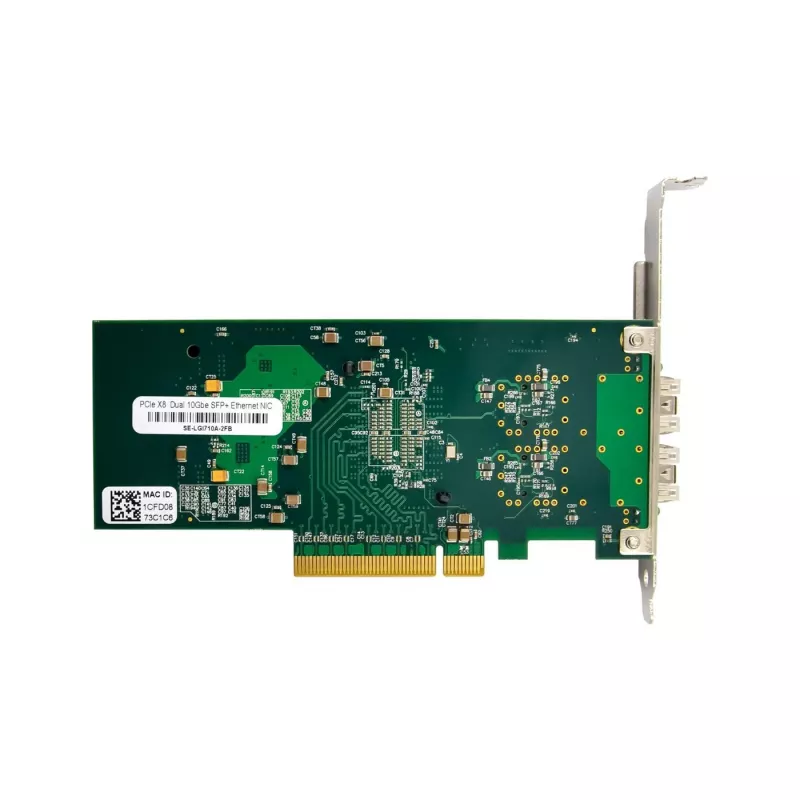

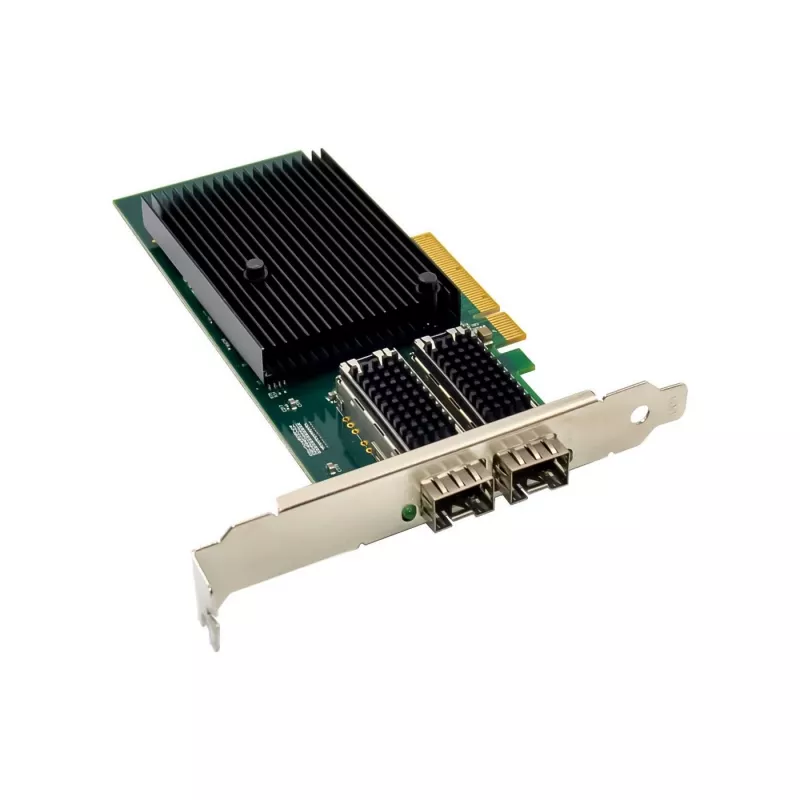

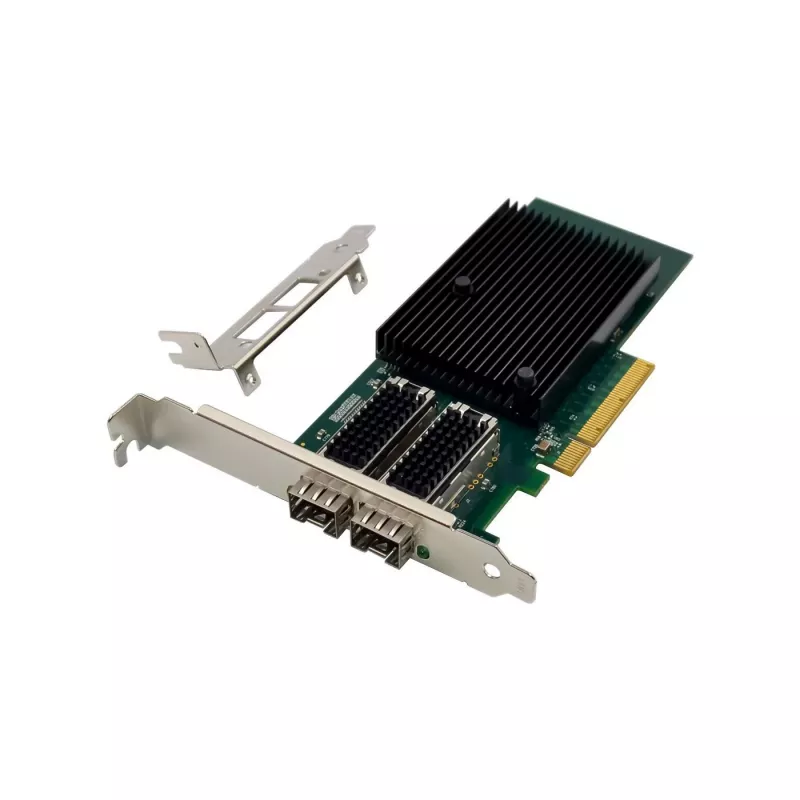

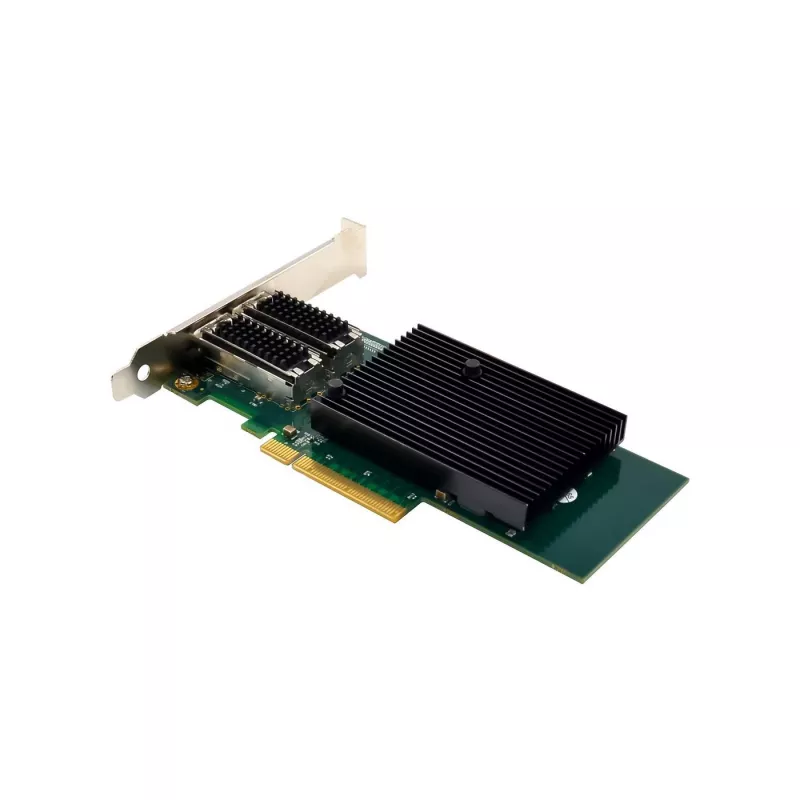

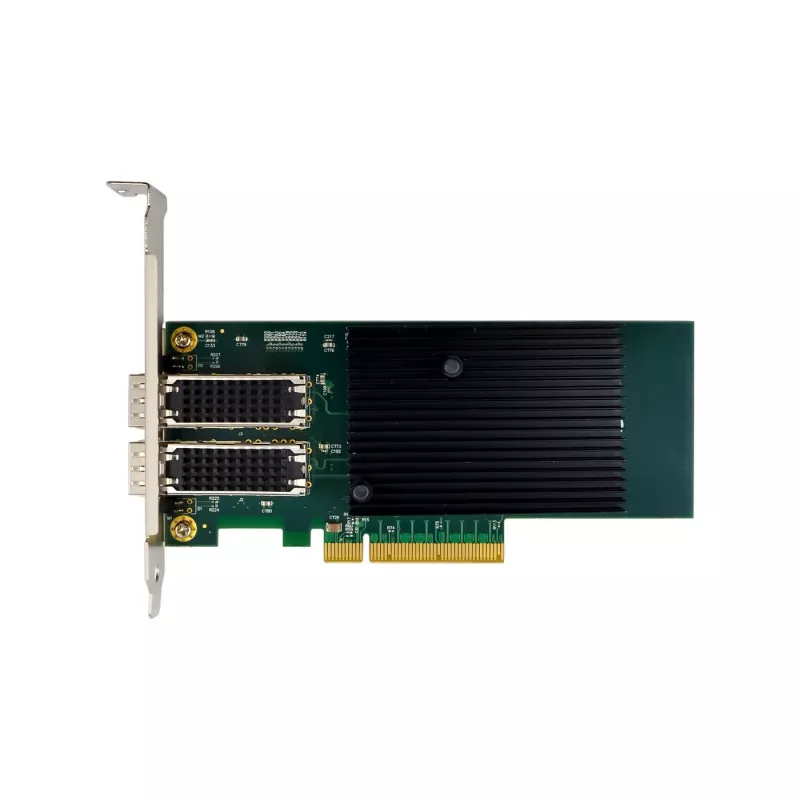

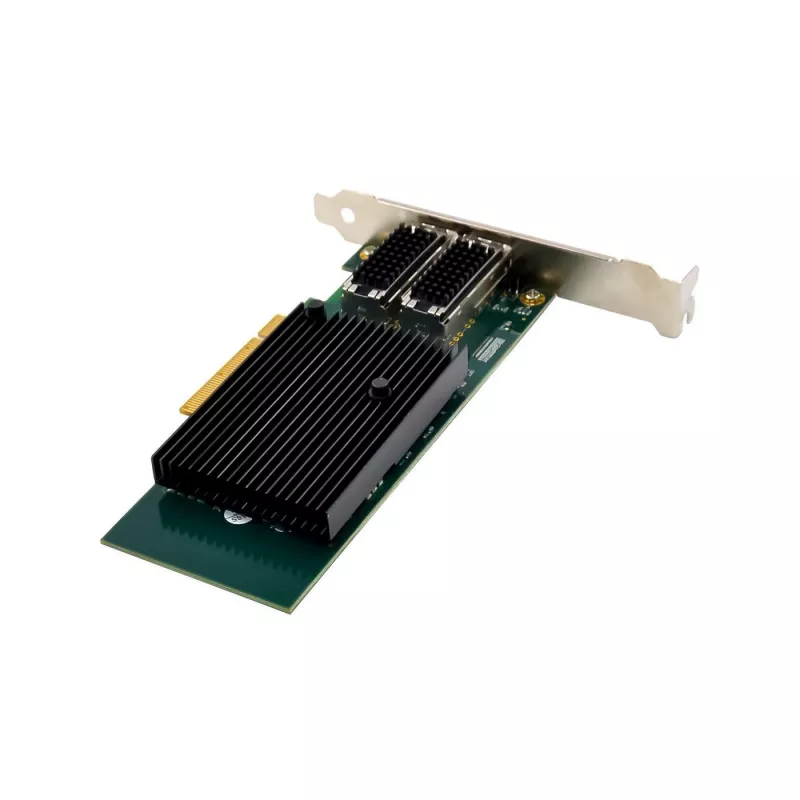

Netwerkkaart MicroConnect X710-DA2 PCIe x8, dual port 10GbE

MicroConnect X710-DA2 PCIe x8, dual-port 10GbE is a network interface card designed to deliver high-throughput, low-latency wired connectivity for servers and workstations. The card provides two 10 Gigabit Ethernet ports on a PCIe x8 form factor, enabling faster data transfer, improved network performance and support for bandwidth‑intensive tasks such as virtualization and storage networking. It fits standard PCI Express x8 slots and is intended for environments where reliable, high-speed wired links are required.

Advantages

The dual-port 10GbE configuration allows aggregation and redundancy while maintaining full 10 Gbps throughput per port. The PCIe x8 interface supports sustained data rates with reduced CPU overhead, and the card is engineered for low latency and consistent performance under heavy load. Compact bracket and standard slot compatibility make installation straightforward in many server and workstation chassis.

Suitable for (tasks / use cases)

• Virtualization hosts and hypervisor servers
• High‑performance storage networks (SAN/NAS)
• Server-to-server cluster links and backbone connections
• Workstations running bandwidth-intensive applications (video editing, large dataset processing)
• Networked services requiring low-latency, high-throughput connectivity

Key specifications

• Interface: PCI Express x8
• Ports: 2 × 10 Gigabit Ethernet (10GbE)
• Form factor: Low‑profile/standard bracket compatibility (fits standard PCIe x8 slot)
• Supported link speeds: 10 Gbps per port
• Typical use: Server and workstation wired networking for high-throughput tasks
• Latency: Optimized for low-latency transmission

How to use

Power down the system and install the MicroConnect X710-DA2 into an available PCIe x8 slot, securing the card with the chassis bracket screw. Connect each 10GbE port to the network using compatible cabling or transceivers as required by your infrastructure. After powering on, install any necessary drivers or firmware updates provided by the system or adapter vendor and verify link status and speed in the operating system network settings. Configure IP addressing, link aggregation, or VLANs according to your network design and enable any offload or performance features supported by the host OS and applications.

Recommendations

Use quality 10GbE-compatible cabling or optical modules and follow the system manufacturer's guidelines for driver and firmware updates. For maximum throughput and stability, place the adapter in a full x8 PCIe slot, ensure adequate airflow for cooling, and configure link aggregation or redundant paths where needed to increase resilience.
