Netwerkkaart MikroTik R11E-2HPND intern RF draadloos

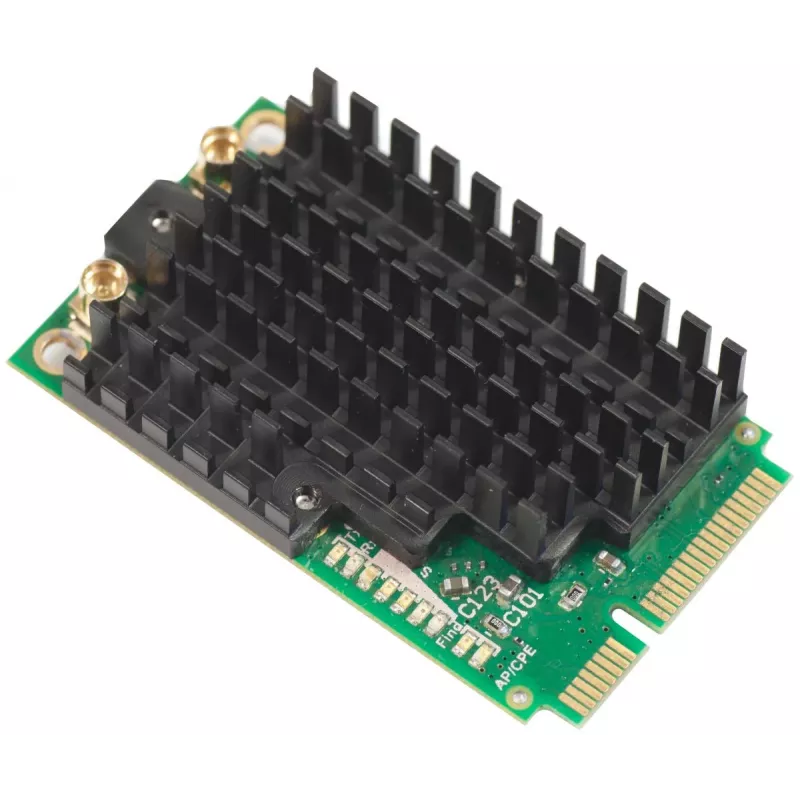

R11e-2HPnD is an internal RF wireless miniPCIe card that supports IEEE 802.11b/g/n (Wi‑Fi 4) standards and delivers up to 1000 mW transmit power on a full 2192–2732 MHz frequency range. The card uses a Mini PCI Express interface and is compatible with MikroTik RB912 and RB800 series as well as miniPCIe adapter modules such as RB14e/RB14eU.

Advantages

The card offers a compact Mini PCIe form factor with dual-chain high-power RF, enabling extended wireless range and stronger signal in the supported frequency band. Its Mini PCI Express host interface ensures straightforward integration into compatible router and adapter platforms. The product is built to standard networking specifications (802.11b/g/n) and comes in a durable printed circuit design.

Suitable for

• Upgrading wireless capability in MikroTik RB912 series routers
• Use in RB800 series devices that accept miniPCIe radio modules
• Installation into miniPCIe adapters such as RB14e and RB14eU
• Projects requiring high-power 2192–2732 MHz RF transmission

Key specifications

• Model: MikroTik R11E-2HPnD (MPN: R11e-2HPnD)
• Standards: IEEE 802.11n / 802.11g / 802.11b (Wi‑Fi 4)
• Transmit power: up to 1000 mW (high power)
• Frequency range: 2192–2732 MHz
• Interface: Mini PCI Express (miniPCIe)
• Connectivity technology: Wireless RF
• Product colour: Green, Black
• EAN: 5704174116738

How to use

Install the R11e-2HPnD into a compatible Mini PCIe slot of the target router or adapter (for example RB912, RB800, RB14e/RB14eU). Secure the module with the mounting screw and connect any required external antennas according to the host device instructions. Configure wireless settings (channel, frequency, transmit power, SSID, security) in the router’s RouterOS or the host device management interface to match the local regulatory requirements and network design.

Recommendations

Ensure the operating device supports miniPCIe radio modules and verify regional regulations for operation in the 2192–2732 MHz range. Use appropriate antennas and grounding to optimize performance and observe local transmit power limits. Follow the host device manual for installation and RouterOS configuration steps.
