Netwerkkabel BlueOptics 470-ABOF compatibel MPO-4xLC multimode OM4-patchkabel 1 meter

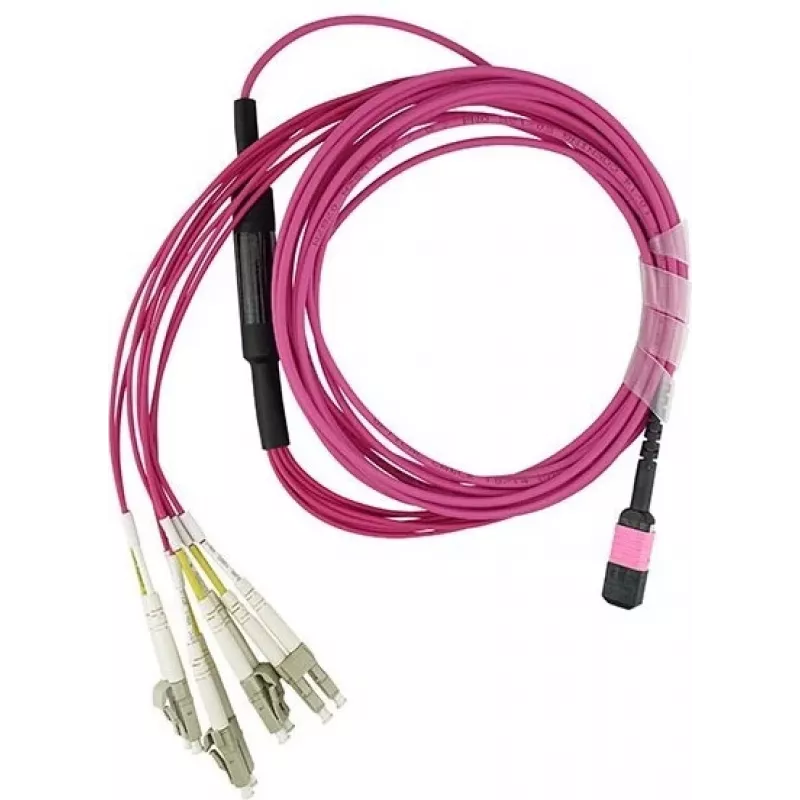

The BlueOptics 470-ABOF Compatible MPO-4xLC Multimode OM4 Patch Cable 1 Meter is a short-range fiber optic cable designed for high-density networking environments. It connects MPO ports to four LC connectors, using multimode OM4 fiber to support high bandwidth transmission over short to medium distances. The 1 meter length suits rack-to-rack or chassis-to-panel connections in data centers, server rooms, and telecommunications closets.

Advantages

This MPO to 4xLC OM4 patch cable provides high modal bandwidth and low insertion loss for reliable multi-channel transmission. Its multimode OM4 fiber core is optimized for 10GbE, 25GbE and 40GbE links in short-reach applications, while the compact MPO and LC connector configuration enables high-density patching. The cable assembly is built for mechanical stability and consistent performance in structured cabling systems.

Suitable for

Key specifications

How to use

Install the cable by aligning the MPO connector with the MPO adapter or port and gently insert until it seats. Route the breakout end to the LC ports and plug each LC connector into the corresponding LC adapter or transceiver port, ensuring correct polarity and secure latching. Avoid tight bends and maintain recommended bend radius for multimode fiber during installation. Label both ends if needed for easy identification in patch panels.

Recommendations

For optimal performance, use in environments with controlled bend radius and minimal mechanical stress. Verify polarity and perform insertion loss or optical return loss checks if required by your network testing procedures. Keep connectors clean and protected when not in use to preserve low loss and stable transmission characteristics.
