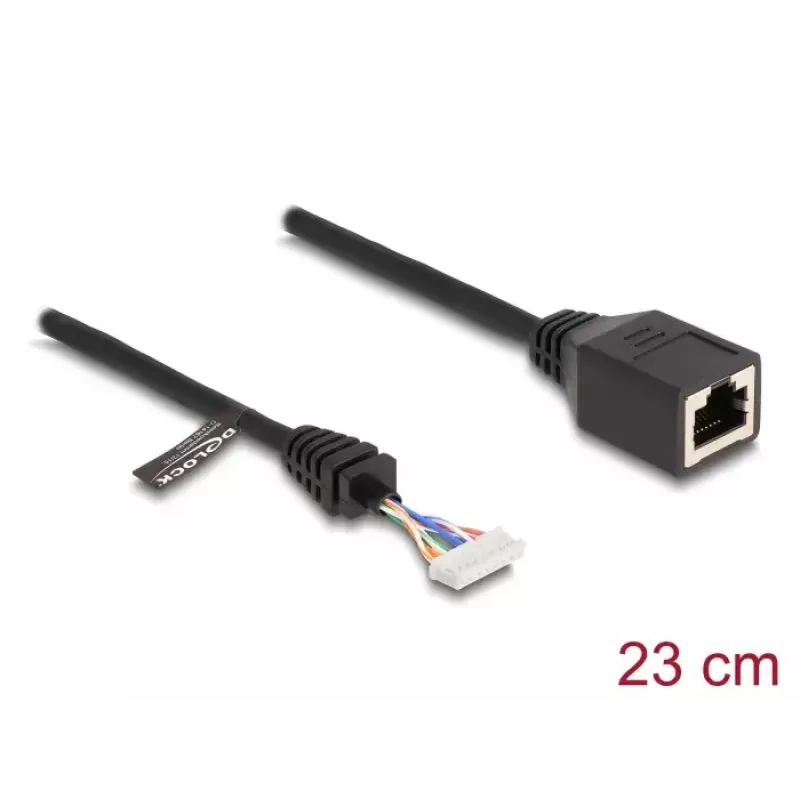

Netwerkkabel DeLOCK 88006 RJ45-bus naar pinheader bus Cat5e 0,23 m zwart

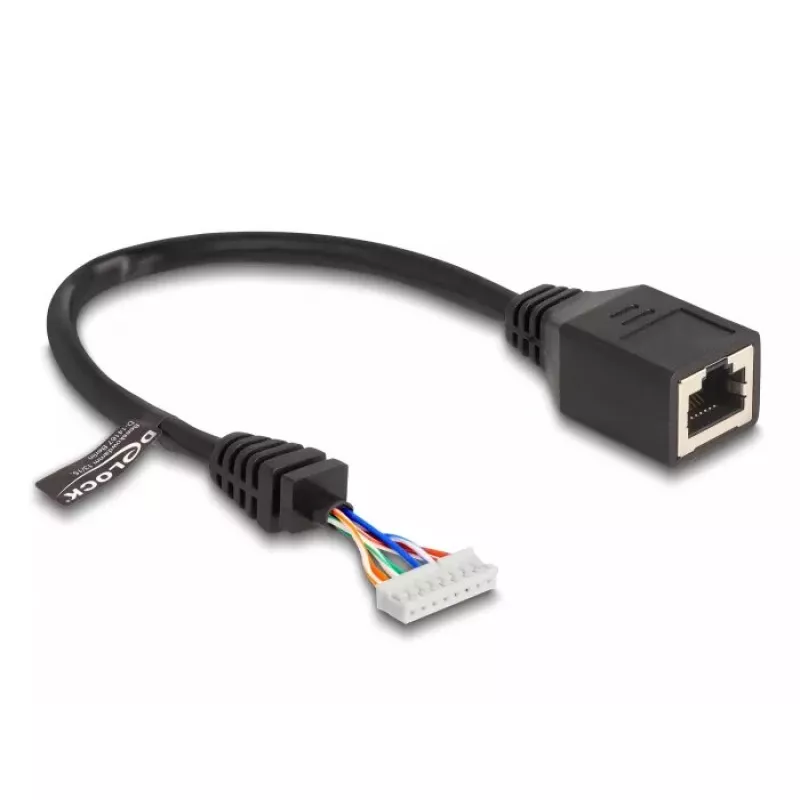

The DeLOCK 88006 network cable is a Cat5e RJ45 jack to female pin header adapter cable, 0.23 m in length. It is intended for connecting devices with PCB pin headers, PC motherboards and other electronic DIY applications where a short, reliable Ethernet connection is required. The black cable provides a compact solution for data transmission between an RJ-45 plug and a pin header interface.

Advantages

This Cat5e cable offers stable data transmission and is suitable for short interconnections thanks to its 0.23 m length. The RJ-45 jack to female pin header design enables direct connection to PCB-mounted pin headers or adapter boards without requiring additional connectors. The black jacket provides a discreet appearance and basic protection for internal conductors.

Suitable for

Key specifications

How to use

Insert an RJ-45 plug into the RJ-45 jack and align the female pin header with the target PCB or adapter board header. Ensure correct orientation of the pin header to match signal mapping on the board. Secure the connection mechanically if necessary and avoid excessive bending near the connectors to maintain cable integrity.

Recommendations

Use this short Cat5e adapter cable for close-proximity connections and prototyping. Verify pin assignments on the target board before applying power or signals, and avoid using the cable for long-distance runs where cable category and length requirements differ.
