Netwerkkabel EFB Elektronik K5530.0,5

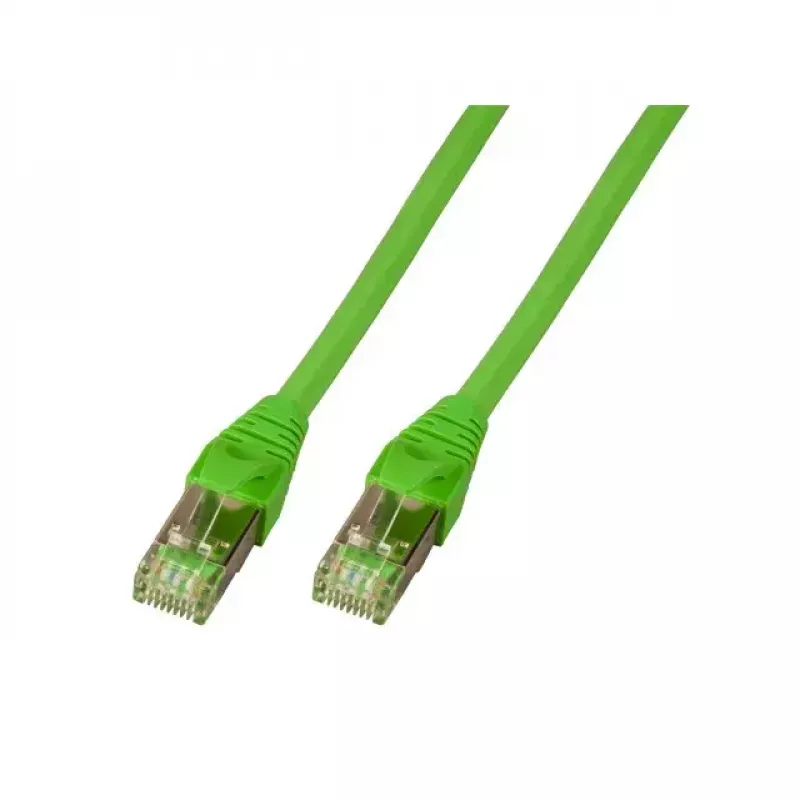

The EFB Elektronik K5530.0,5 is a 0.5 m Cat5e networking cable with SF/UTP (S-FTP) shielding and moulded RJ45 plugs. It features 50 μ gold-plated contacts and a PUR jacket in green (RAL6018). The cable is designed for reliable signal transmission with low differential impedance and provides extended temperature operation from -40°C to +80°C.

Advantages

The shielded SF/UTP construction with 360° shield contact improves EMC performance and reduces interference. Gold-plated RJ45 contacts (50 μ) ensure durable, low-resistance connections with a minimum contact durability of 750 mating cycles. The molded strain relief with latch protection increases connector longevity, while the PUR jacket offers mechanical robustness and resistance to environmental influences.

Suitable for

• Connecting network devices over short distances (0.5 m)
• Industrial and office environments requiring improved EMI/EMC immunity
• Applications needing durable, flexible cable with extended temperature range

Key specifications

• Standard: Cat5e (SF/UTP, S-FTP)
• Length: 0.5 m
• Conductor: 4 x 2 x AWG26/7
• Connectors: 2x RJ45 moulded, shielded
• Contact plating: 50 μ gold
• Contact durability: min. 750 cycles
• Cable jacket: PUR, colour RAL6018, Ø = 6.2 mm
• Temperature range: -40°C to +80°C
• Standard/connector compliance: IEC 60603-7-3

How to use

Plug the RJ45 connectors into the corresponding shielded Ethernet ports on your devices. Ensure that both connected ports provide proper shielding contact to benefit from the SF/UTP construction. Route the PUR cable without sharp bends and avoid mechanical strain on the moulded strain relief to maintain connector integrity.

Recommendations

For optimal EMC performance, connect both ends to shielded ports or equipment chassis earth. Avoid repeated sharp bending near the connector; inspect contacts periodically if used in harsh environments.
