Netwerkkabel EFB Elektronik K8110GR.3 RJ-45 Cat5e 3 m grijs

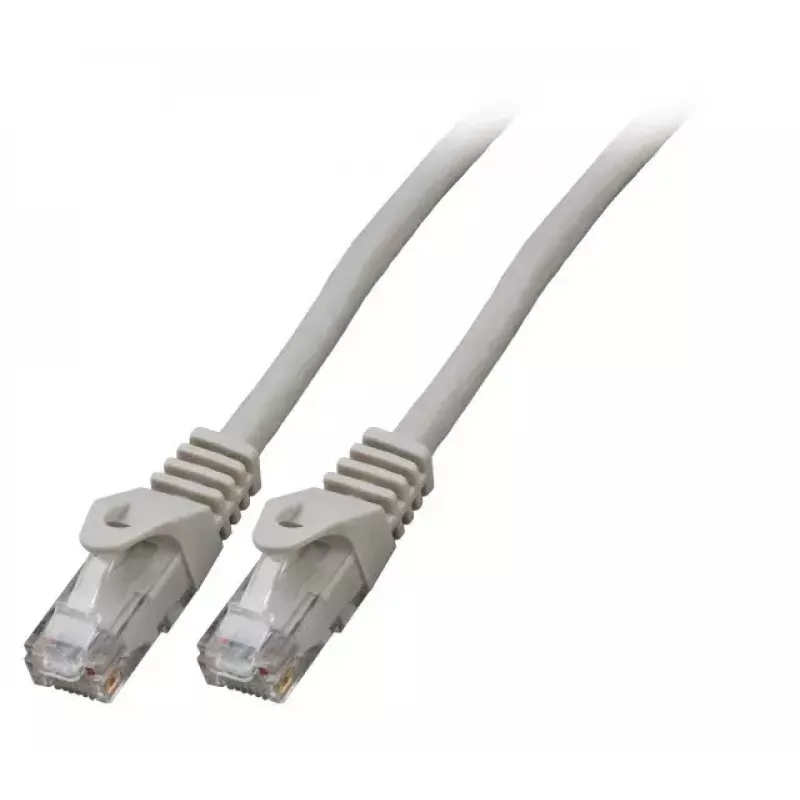

The EFB Elektronik K8110GR.3 is a 3 m Cat5e U/UTP patch cable with AWG24/7 stranded conductors and LSZH (low smoke, halogen‑free) jacket. It is fitted with two moulded Cat.5e RJ45 plugs wired 1:1 to IEC 60603‑7 and offers 3 µm gold‑plated contacts and integrated strain relief with bend and latch protection. The cable meets ISO/IEC 11801 and EIA/TIA 568 standards and is suitable for typical network connections in home and office environments.

Advantages

This Cat5e cable provides reliable Gigabit Ethernet performance (10/100/1000Base‑T(X)) using four AWG24/7 stranded pairs and U/UTP construction. The LSZH jacket reduces smoke and halogen emissions in case of fire. Moulded connectors with strain relief and 3 µm gold plating on contacts improve durability and signal transmission quality. The 3 m length and grey colour make the cable practical for desktop and patch‑panel connections.

Suitable for

• Connecting PCs, switches and routers in home or office networks
• Patch panel to switch or wall outlet connections
• Gigabit Ethernet (1000 Mbit/s) and lower speed networks

Key specifications

• Length: 3 m
• Standard: Cat5e, ISO/IEC 11801, EIA/TIA 568
• Cabling: U/UTP, 4 pairs, AWG24/7 stranded
• Connector: 2 × RJ‑45 Cat.5e plugs wired 1:1 (IEC 60603‑7)
• Contacts: 3 µm gold plated
• Jacket: LSZH (low smoke, halogen‑free)
• Colour: Grey

How to use

Plug one RJ‑45 connector into the network device (router, switch or PC) and the other connector into the corresponding network port. Ensure connectors click into place and the moulded latch protection is not obstructed. Route the cable without sharp bends and avoid excessive tension to preserve the integrity of stranded conductors and strain relief.

Recommendations

For best performance, keep cable runs within recommended lengths for patching (3 m in this case) and avoid running parallel to power cables or sources of electromagnetic interference. Use LSZH cable in enclosed or public areas where reduced smoke and halogen emissions are required.
