InLine B-76807Y Cat.6A S/FTP (PiMf) halogeenvrije patchkabel, 7,5 m, geel, 15-pack (B-Pack)

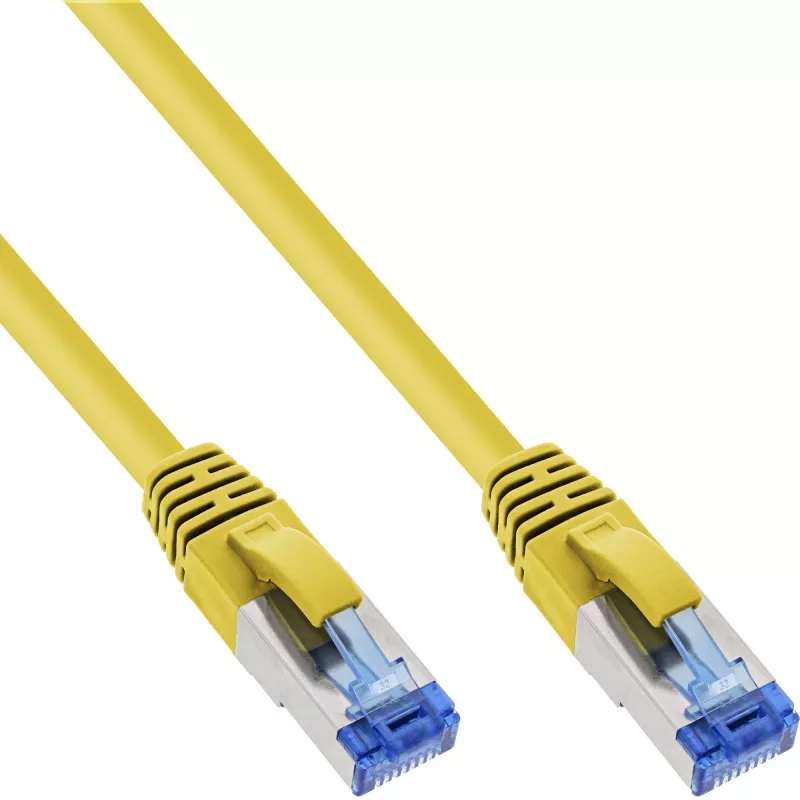

The InLine B-76807Y is a Cat.6A S/FTP (PiMf) halogen-free patch cable in yellow, supplied as a 15-pack in bulk eco packaging. It features a solid copper conductor, overall braided shield with pair-wise foil shielding, and RJ45 connectors with 50µ" gold-plated contacts and snap-in protection.

Key features

• Cat.6A patch cable
• S/FTP (PiMf) shielding
• Halogen-free (LSZH) sheath
• RJ45 plug straight on both ends
• Blue-coloured connector for differentiation
• Suitable for Gigabit and 10 Gigabit applications
• Up to 500MHz
• Includes enclosed test report
• 15 pieces packed in a PE bag and outer carton

Specifications

• Brand: InLine
• MPN: B-76807Y
• Product colour: Yellow
• Length: 7.50m
• Cable construction: S/FTP (PiMf) 4x2xAWG26/7, solid copper wire
• Conductor material: CU (copper)
• Outer diameter: 6.2mm
• Sheath: Halogen-free (LSZH), compliant with IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034
• Connector contacts: 50µ" gold-plated
• Assignment: 1:1
• Assignment according to TIA/EIA 568B2.1
• Operation temperature: -10 to +60°C
• Storage temperature: -20 to +70°C
• Max. supported data transfer rate: 10Gb/s
• Max. supported PoE standard: 802.3bt
• Max. supported power: 90W
• PoE/PoE+/PoE++: Yes
• Design: Round cable
• Diameter: AWG 26
• Signal: Network
• Packing: Bulk EcoPack
• Country of origin: Taiwan
