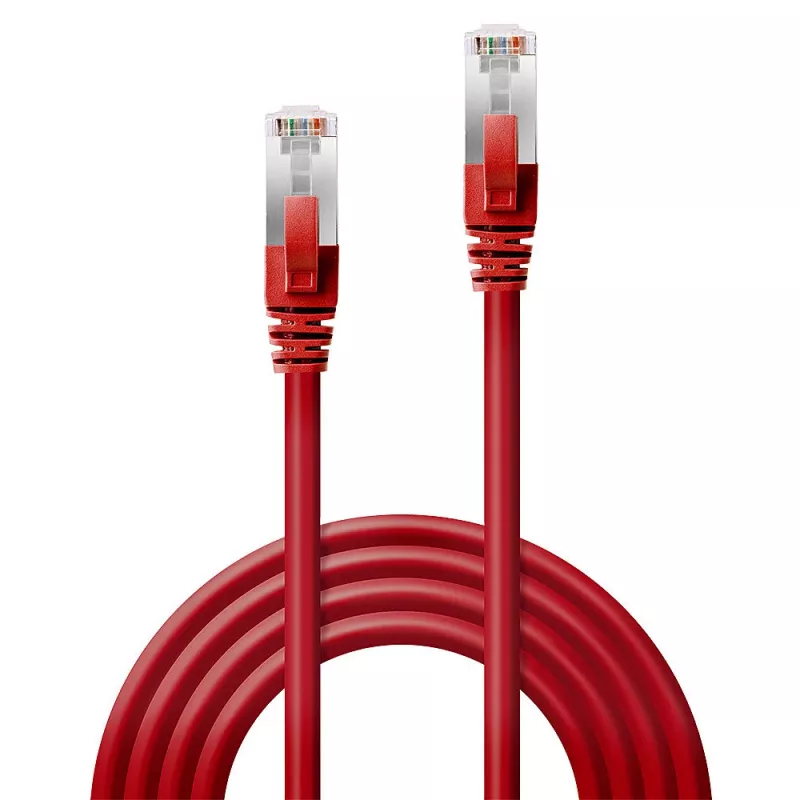

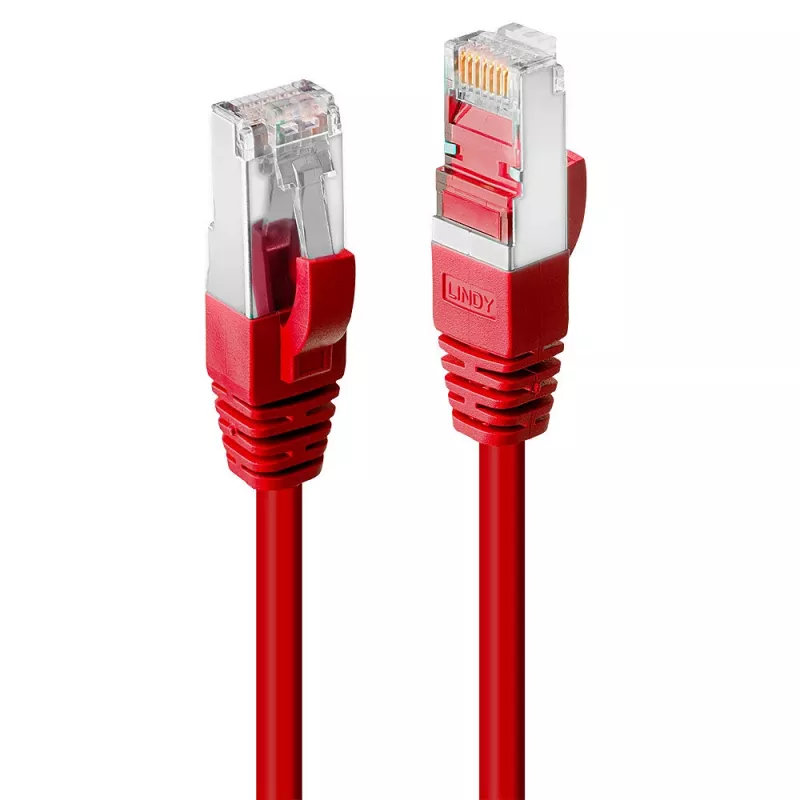

Netwerkkabel Lindy Cat.6 SSTP/S/FTP PIMF Premium 0,5m rood

Cat.6 S/FTP (SSTP/PIMF) networking cable with support for bandwidths up to 250 MHz, designed for Ethernet standards up to 1GBase-T. The cable is 0.5 m long and comes in red with an LSZH (halogen-free) outer sheath. It is manufactured and tested according to ISO/IEC 11801 and supplied individually in a polybag.

Advantages

The S/FTP construction uses an overall braided shield plus foil-shielded individual pairs (PIMF/SSTP) to minimise electromagnetic interference and crosstalk. Gold-plated RJ45 contacts provide corrosion-resistant, reliable connections over time. A snagless strain-relief connector design protects the latch during installation and removal. The LSZH outer sheath reduces smoke and eliminates halogen emissions, making the cable suitable for use in public or enclosed spaces.

Suitable for

• Gigabit Ethernet (1GBase-T) connections
• AV extension and professional network installations
• Short patch runs between devices in server racks, switches or patch panels

Key specifications

• Category: Cat.6 (S/FTP, also described as SSTP/PIMF)
• Bandwidth / frequency: up to 250 MHz
• Length: 0.5 m
• Connector contacts: gold-plated RJ45
• Sheath: LSZH (halogen-free)
• Standards: manufactured and tested to ISO/IEC 11801
• Colour: Red

How to use

Connect one end of the Cat.6 S/FTP cable to an RJ45 port on a network device (switch, router, NIC or AV extender) and the other end to the corresponding port on the second device. Ensure connectors are fully inserted until the latch clicks; the snagless design protects the latch during plugging and unplugging. Use the cable for short patch connections where 1 Gbps performance and shielded transmission are required.

Recommendations

For optimal performance, avoid tight bends and excessive tension on the cable; maintain the manufacturer's minimum bend radius. Use shielded ports and properly grounded equipment where possible to maximise the benefits of the S/FTP shielding.
