Netwerkswitch Trendnet TI-G262 24 poorten 52 Gbit/s

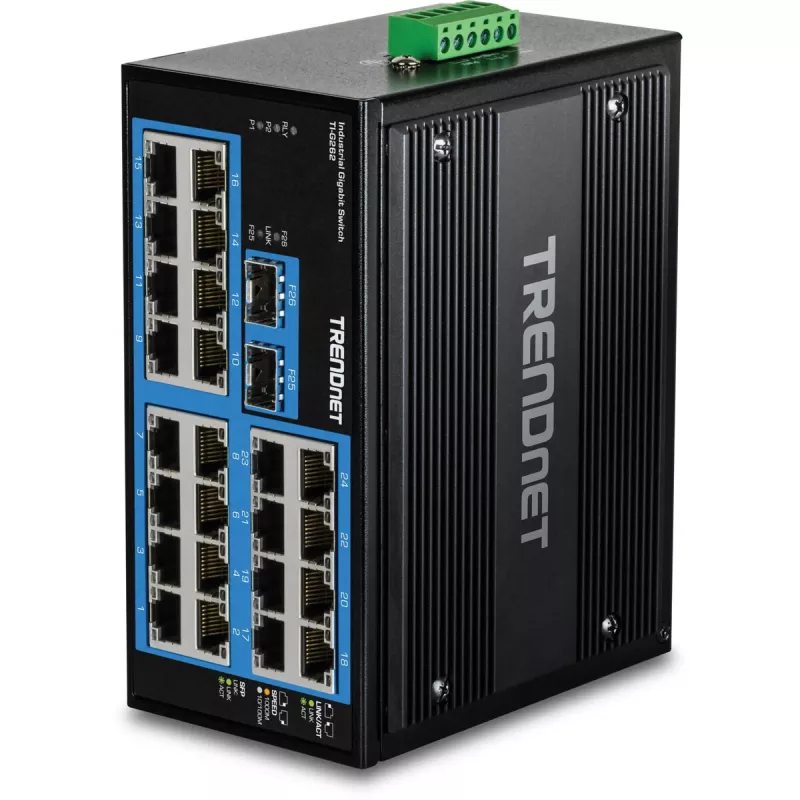

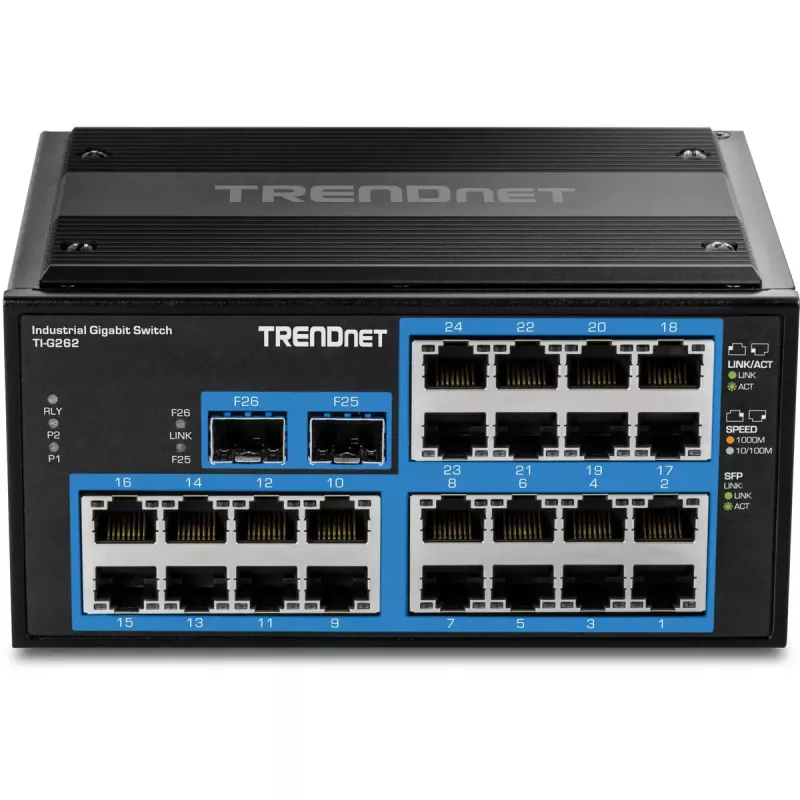

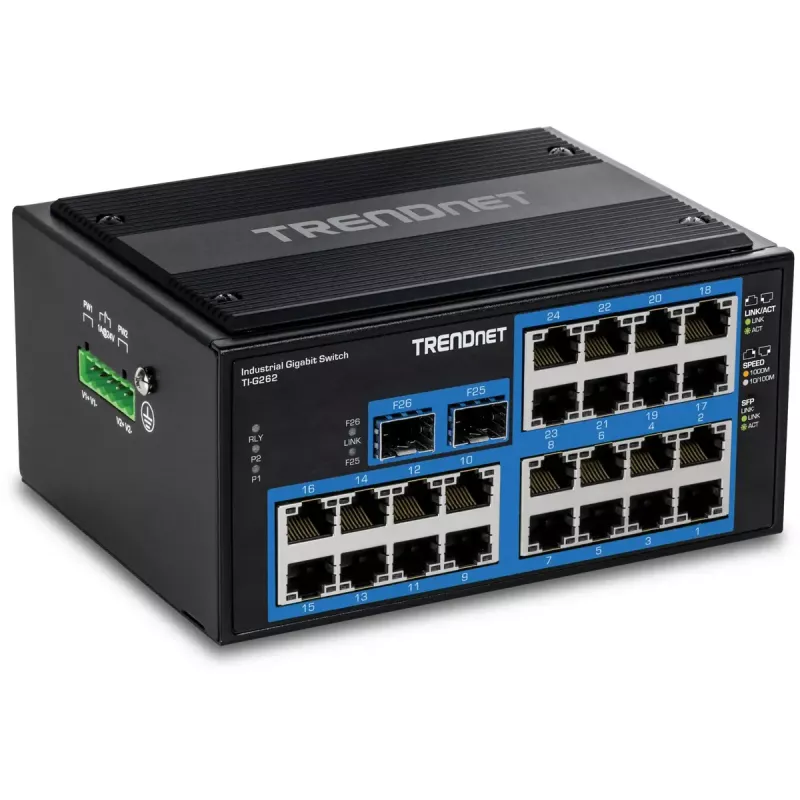

The TRENDnet TI-G262 is an industrial unmanaged Gigabit Ethernet switch with 24 copper Gigabit RJ-45 ports and 2 Gigabit SFP ports. Housed in an IP30-rated metal enclosure, this DIN-rail mountable switch is built for harsh environments and supports an extended operating temperature range from -40° to 75° C (-40° to 167° F). With a switching capacity of 52 Gbit/s and an 8000-entry MAC address table, the TI-G262 provides reliable Layer 2 connectivity for demanding industrial or commercial networks.

Advantages

The industrial metal enclosure and IP30 rating provide mechanical protection suitable for vibration and shock. Redundant DC power inputs with overload current protection and an alarm output for power failure help minimize downtime. Dual Gigabit SFP ports allow long-distance fiber connections while 24 Gigabit RJ-45 ports support high-speed copper device connections. The switch complies with NDAA/TAA where applicable and includes DIN-rail and wall mounting options.

Suitable for

• Industrial automation networks and factory floors
• Transportation and infrastructure installations
• Surveillance and security camera systems requiring long-distance links
• Small to medium backbone segments in commercial networks

Key specifications

• Ports: 24 x Gigabit RJ-45, 2 x Gigabit SFP
• Switching capacity: 52 Gbit/s
• MAC address table: 8000 entries
• Operating temperature: -40° to 75° C (-40° to 167° F)
• Enclosure: Hardened IP30 metal

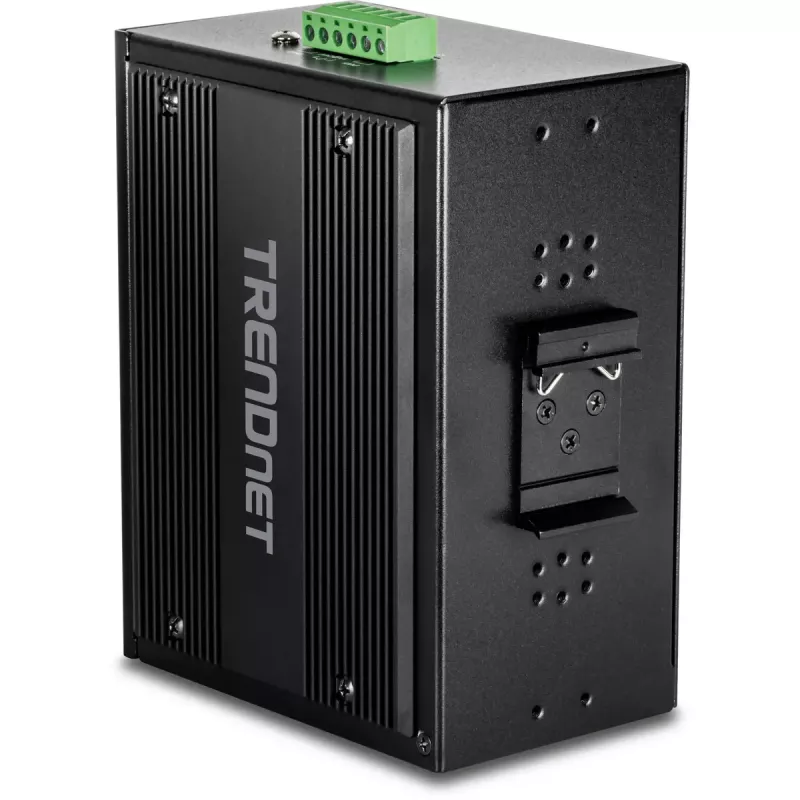

• Mounting: DIN-rail and wall mount included

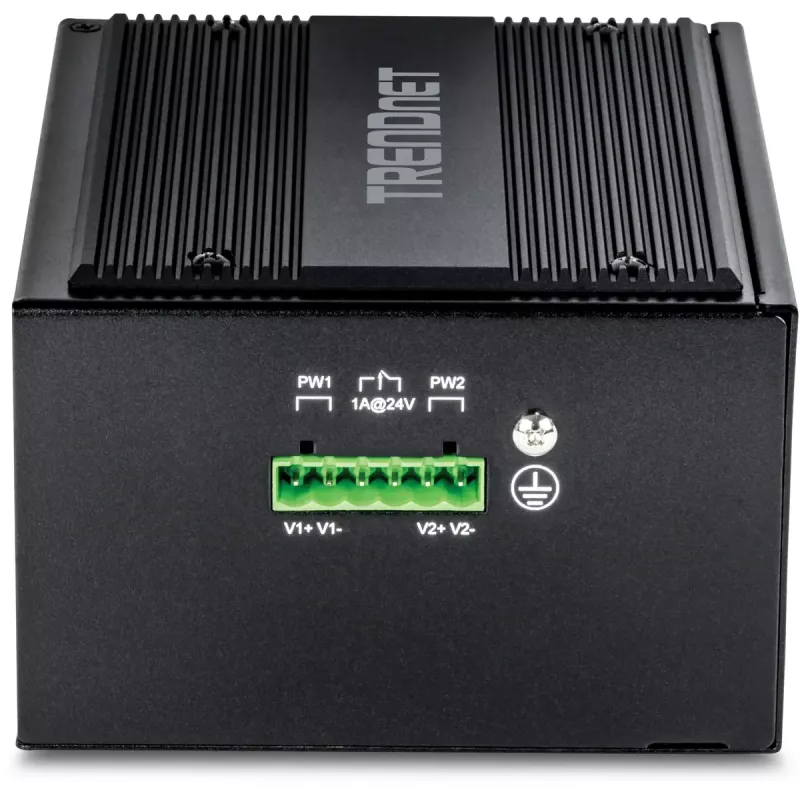

• Power: Redundant DC inputs with overload protection (power supply sold separately; compatible models TI-M6024, TI-S15052)
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3z
• Weight: 0.936 kg

How to use

Install the TI-G262 on a DIN-rail or mount it to a wall using the included hardware. Connect DC power to the redundant power input terminals (power supply sold separately). Attach devices to the Gigabit RJ-45 ports for copper connections and insert SFP modules into the SFP ports for fiber links as needed. The unmanaged switch operates without configuration; devices will establish links automatically according to standard Ethernet negotiation.

Recommendations

Use appropriate DIN-rail or wall-mounted enclosures in environments with dust or moisture and ensure the selected power supply (TI-M6024 or TI-S15052) meets voltage and current requirements. For long-distance fiber runs, choose SFP modules compatible with the TI-G262 and the required fiber type and distance.
