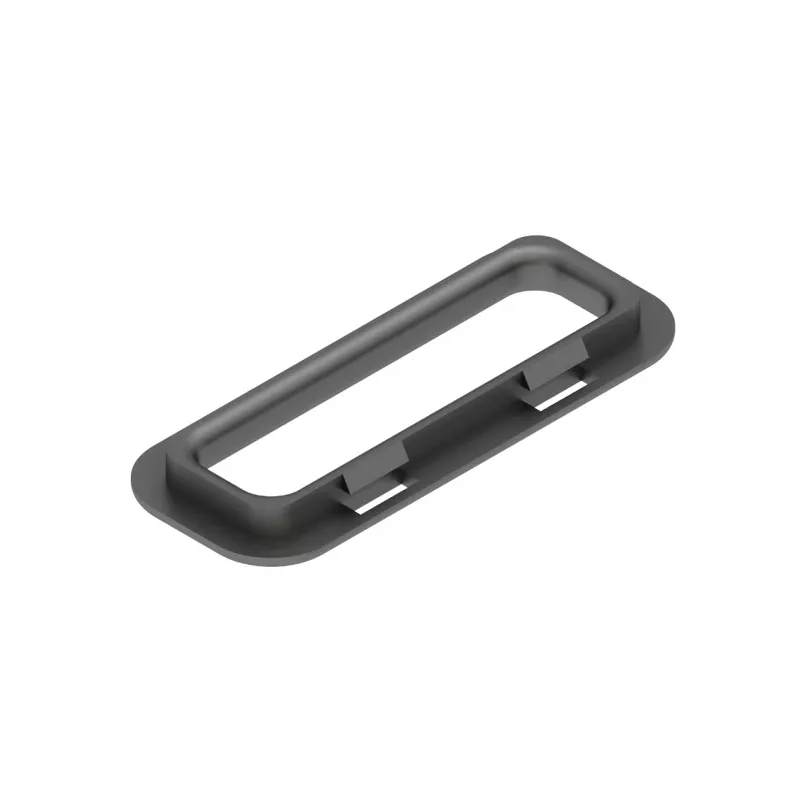

Niedax kabelbeschermring KSR 20 A

The Niedax KSR 20 A cable protection ring is a high-quality polyamide (PA) component designed for reliable edge protection and cable routing in panel feed-through applications. With a nominal diameter of 20 mm, it provides a secure and durable solution for organizing and safeguarding cables in electrical installations, control cabinets, and industrial equipment.

Advantages

This snap-in mounting ring offers quick and tool-free installation, reducing assembly time. Its halogen-free, flame-retardant material (UL94 V2) ensures safety in fire-critical environments. The ring provides excellent electrical insulation, high abrasion resistance, and impact resistance, making it suitable for demanding industrial applications. RoHS and REACH compliance guarantee environmental and health safety.

Suitable for

• Edge protection for cable pass-throughs in panels and enclosures
• Cable routing and strain relief in control cabinets
• Industrial machinery and automation systems
• Electrical installations requiring halogen-free components

Key specifications

• Product Type: Cable Protection Ring
• Material: Polyamide (PA)
• Color: Black
• Nominal Diameter: 20 mm
• Outer Diameter: 24 mm
• Inner Diameter: 18 mm
• Overall Height/Thickness: 2 mm
• Temperature Range: -30 to +100 °C
• Flammability Rating: UL94 V2
• Halogen-free: Yes
• Mounting Type: Snap-in
• Suitable for Panel Thickness: 0.5 - 2 mm
• UV Resistance: No
• Electrical Insulation: Yes
• Abrasion Resistance: High
• Impact Resistance: High
• RoHS Compliant: Yes
• REACH Compliant: Yes

Recommendations

For optimal cable management, pair this protection ring with compatible Niedax cable ties and mounting bases. Ensure the panel thickness is within the specified range (0.5-2 mm) for secure snap-in installation. This ring is ideal for use in control cabinets, switchgear, and industrial automation where reliable cable protection is required.
