Niedax SMU10-50 zeskantmoer- en ringenset M10 gegalvaniseerd

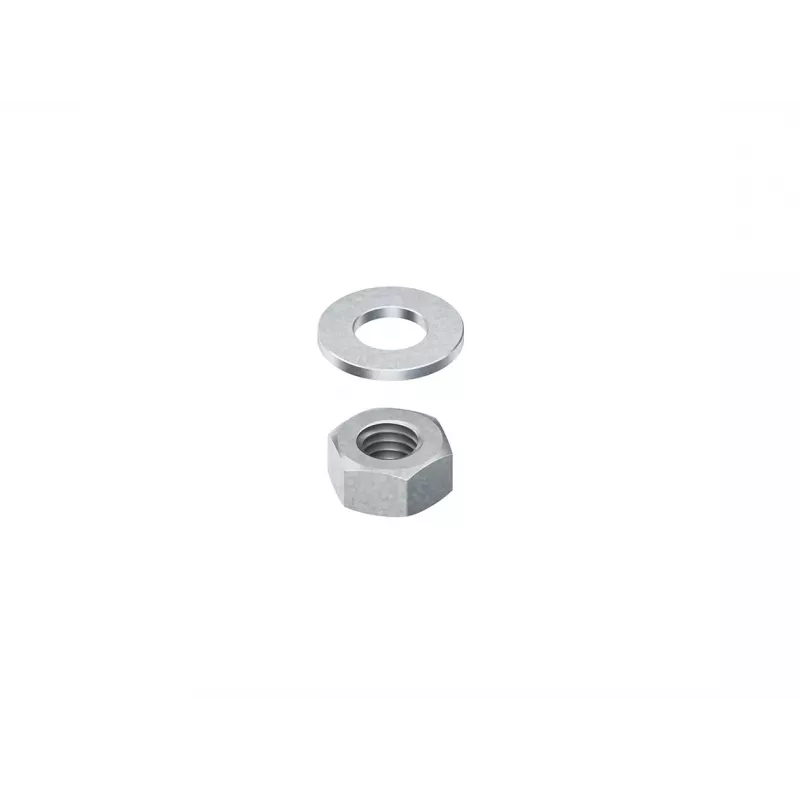

The Niedax SMU10-50 is a high-quality hexagon nut and washer set designed for secure fastening in cable tray systems, general construction, and electrical installations. This set includes one M10 hexagon nut and one flat washer, both made from steel with a galvanized (zinc-plated) surface finish for corrosion protection. The nut conforms to DIN 934 equivalent standards, while the washer meets DIN 125 equivalent standards, ensuring reliable performance and compatibility with M10 threaded rods, bolts, and screws.

Advantages

This hexagon nut and washer set offers excellent corrosion resistance thanks to its galvanized finish, making it suitable for indoor and outdoor applications. The precise M10 thread ensures a secure fit, while the included flat washer helps distribute load and prevent damage to surfaces. The set is easy to install with a standard 17 mm wrench, saving time and effort during assembly.

Suitable for

• Cable tray systems and supports
• General construction and structural fastening
• Electrical installations and conduit mounting
• M10 threaded rods, bolts, and screws

Key specifications

• Product Type: Hexagon Nut and Washer Set
• Thread Size: M10
• Material: Steel
• Surface Finish: Galvanized (Zinc-plated)
• Nut Type: Hexagon Nut
• Washer Type: Flat Washer
• Nut Standard: DIN 934 equivalent
• Washer Standard: DIN 125 equivalent
• Wrench Size (Nut): SW 17 mm
• Nut Height: Approx. 8 mm
• Washer Inner Diameter: Approx. 10.5 mm
• Washer Outer Diameter: Approx. 20 mm
• Washer Thickness: Approx. 2 mm
• Corrosion Protection: Yes
• Color: Silver/Metallic
• Packaging Unit: 1 set (1 nut + 1 washer)

Recommendations

For optimal performance, use this set with compatible M10 threaded components and ensure proper torque during installation. The galvanized finish provides reliable corrosion resistance, but for extreme environments, consider additional protective measures.
