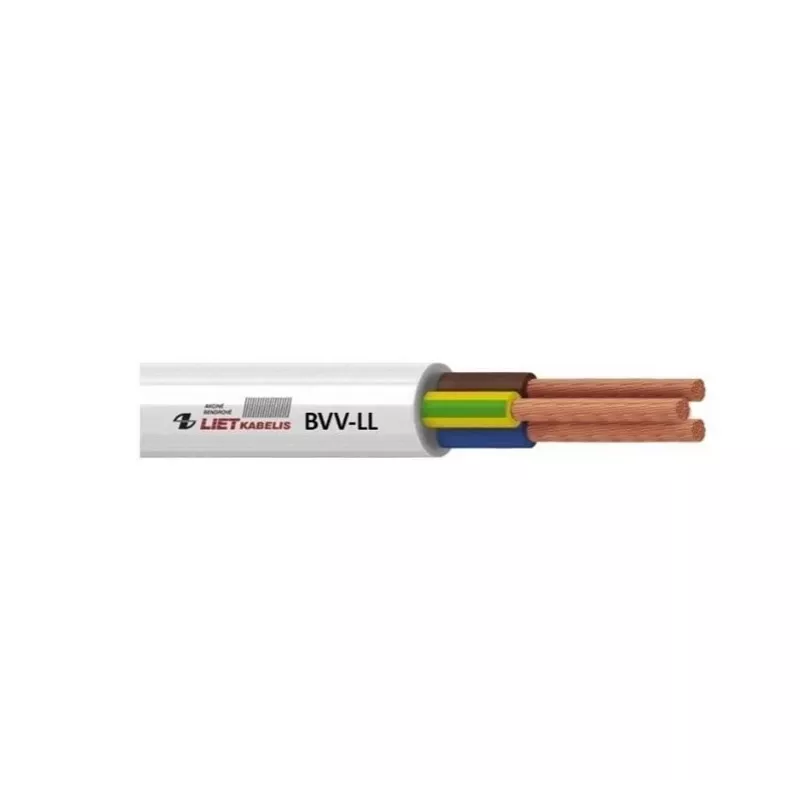

BVV-LL 2x1 mm² witte PVC-geïsoleerde elektriciteitskabel, 50 m rol

Electricians wiring residential or light commercial installations will appreciate this 50-meter coil of BVV-LL cable for dependable fixed-installation performance. Two solid copper conductors, each with a 1 mm² cross-section, are insulated and sheathed in white PVC, providing a clean, professional finish for surface or concealed wiring.

Key specifications

• Conductor: 2 x 1 mm² solid electrolytic copper (Class 1)
• Insulation and sheath: PVC, white
• Rated voltage: 300/500 V
• Current rating: approx. 10 A
• Operating temperature: -30 °C to +70 °C
• Flame retardant: EN 60332-1-2
• Outer diameter: approx. 5.5 mm
• Length: 50 m (coil packaging)
• Standard: LST EN 50525-2-11

Why choose it

Manufactured to EN 50525-2-11, this cable meets strict European safety and performance requirements for fixed wiring. The solid copper conductors ensure low resistance and reliable current transmission, while the durable PVC insulation resists abrasion and everyday mechanical stress. Its flame-retardant sheath adds an extra layer of safety in the event of fire.

Ideal use cases

• Domestic lighting and socket circuits
• Light industrial power distribution
• Surface-mounted or conduit wiring
• Permanent installations in dry or damp environments

Good to know

The cable is supplied on a convenient coil for easy handling and cutting to length. It is not halogen-free, so appropriate ventilation is recommended during installation in confined spaces. Always ensure compliance with local wiring regulations and use appropriate circuit protection.
