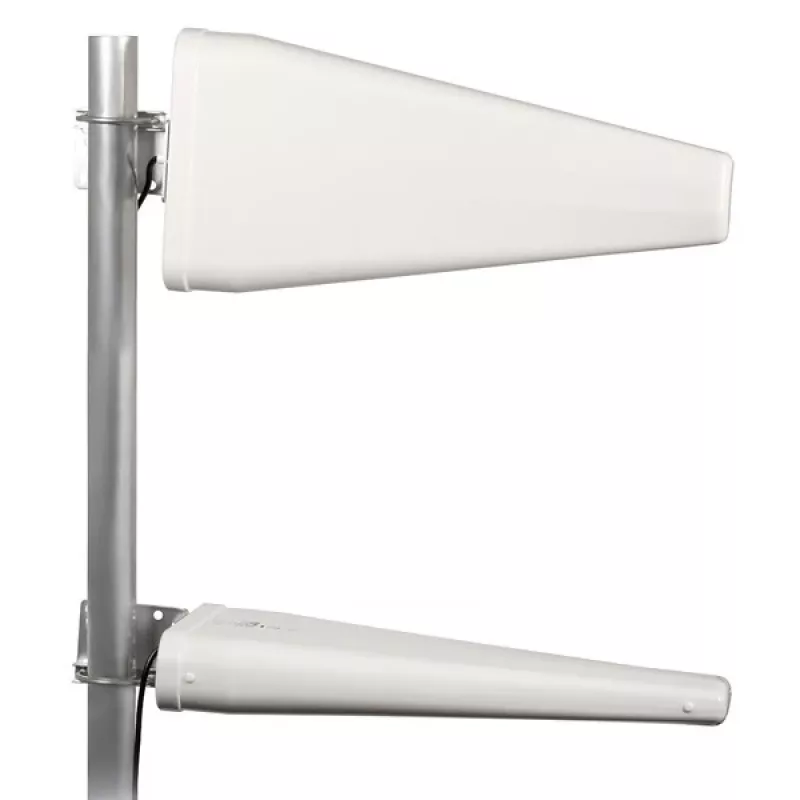

MIMO TD-LTE-KYZ-10/10+10M+SMA logaritmische periodieke antenne GSM/GPRS LTE

In rural and semi-urban locations where mobile signal is weak, this MIMO logarithmic periodic antenna is the go-to solution for reliable 4G LTE connectivity. It is commonly mounted on rooftops, poles, or exterior walls to capture and amplify signals from distant cell towers, feeding them directly to a 4G router or modem. The dual-polarized design ensures consistent performance even in areas with signal reflections, making it ideal for fixed wireless access, remote monitoring, and backup internet links.

Key specifications

• Antenna type: Logarithmic Periodic Dipole Array (LPDA)
• Directionality: Directional with 2x2 MIMO support
• Frequency range: 698–960 MHz and 1710–2700 MHz
• Gain: 2 x 10 dBi
• Polarization: Dual linear (vertical and horizontal)
• VSWR: < 1.8; Impedance: 50 Ohm
• Cable: 2 x 10 m low-loss H155 coaxial
• Connectors: 2 x SMA male
• Mounting: Pole/wall bracket (U-bolt) included
• Beamwidth: ~50° horizontal, ~40° vertical; Front-to-back ratio > 20 dB
• Operating temperature: -40°C to +70°C
• Enclosure: UV-resistant ABS and aluminum; wind load up to 200 km/h

Why choose it

This antenna delivers a stable, high-gain signal for 2G, 3G, and 4G networks, significantly improving data throughput and call quality in fringe areas. Its rugged construction withstands harsh weather, while the dual 10-meter cables provide flexibility in positioning your router indoors. The included mounting kit simplifies installation on various surfaces.

Ideal use cases

• Rural homes and farms needing reliable internet for work, education, or entertainment
• Remote monitoring systems (CCTV, weather stations, IoT sensors) requiring constant connectivity
• Backup internet links for small businesses in areas with unstable wired connections
• Mobile offices or temporary sites where signal boost is essential

Good to know

The antenna supports 2G, 3G, and 4G LTE networks, ensuring compatibility with most carriers. Its dual-polarized MIMO design helps mitigate multipath interference, delivering cleaner signal and higher data rates. For optimal performance, align the antenna towards the nearest cell tower using the adjustable mounting bracket.
