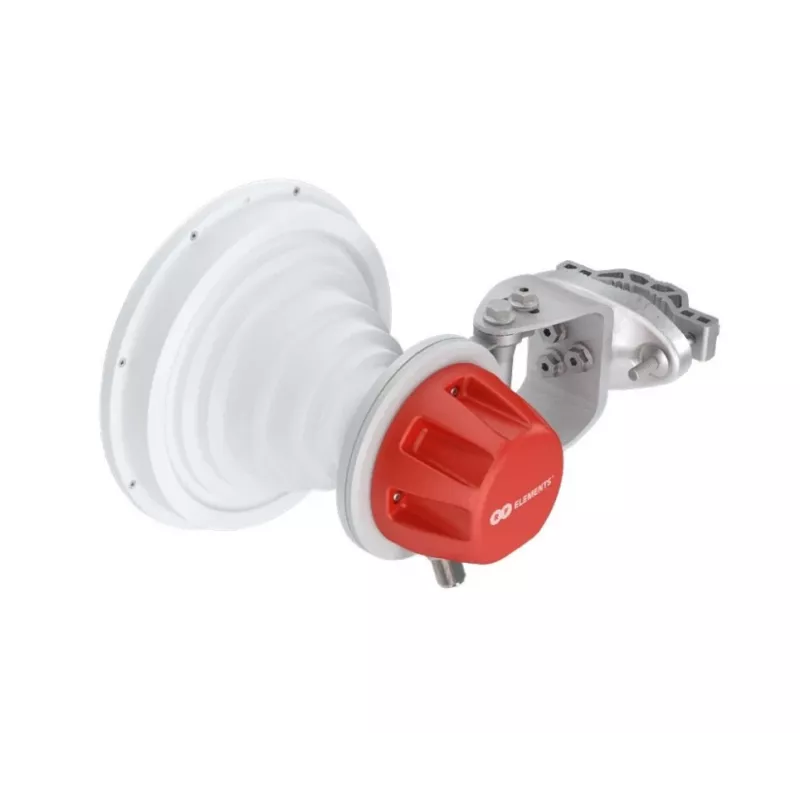

Hoornantenne rf elements 40° symmetrisch 5 GHz 16 dBi winst

The rf elements horn antenna with a 40° symmetrical radiation pattern is a directional antenna designed for operation in the 5 GHz band with 16 dB gain. It provides a concentrated beam for point-to-point and point-to-multipoint wireless links, enabling improved signal strength and reduced interference in targeted sectors. The antenna is intended for outdoor use when combined with appropriate mounting hardware and compatible feeds, and it is optimized to deliver focused coverage over medium distances.

Advantages

This horn antenna delivers a stable, symmetrical 40° beam that helps maintain consistent link quality across the coverage sector. With 16 dB gain in the 5 GHz frequency range, it increases received and transmitted signal levels for better throughput and link margin. The directional pattern reduces off-axis interference and concentrates energy toward intended receivers, which simplifies network planning for sectorized deployments. Designed for integration with standard outdoor mounting solutions and compatible RF feeds, the antenna supports reliable performance in typical wireless backhaul and distribution scenarios.

Suitable for

• Point-to-point links requiring medium-distance, focused coverage in the 5 GHz band
• Point-to-multipoint sector deployments where a symmetrical 40° beam is appropriate
• Outdoor wireless backhaul and distribution when used with compatible mounting and feed equipment
• Environments where reduced off-axis interference improves link stability

Key specifications

• Operating frequency: 5 GHz band
• Radiation pattern: symmetrical 40° beamwidth
• Gain: 16 dB
• Polarization: linear (check compatibility with transceiver polarization)
• Application: directional horn for sector or link-focused coverage

How to use

Mount the horn antenna on a stable outdoor mast or bracket using appropriate clamps and hardware suited to the installation site. Ensure the antenna is aligned precisely toward the target receiver or coverage sector to take full advantage of its 40° symmetrical beam and 16 dB gain. Connect the antenna to your radio or access point using a compatible RF feed or waveguide interface and low-loss coaxial cable where required. Verify polarization alignment and perform link testing to adjust azimuth and elevation for optimal signal strength and throughput.

Recommendations

For best results, pair the horn antenna with radios and feeds that support the 5 GHz frequency and matching polarization, use high-quality low-loss cable and connectors, and secure the mounting to withstand local weather conditions. Regularly inspect the installation and retune alignment after severe weather or structural changes to maintain consistent link performance.
