TECE Base 320 mm toiletinstallatiemodule

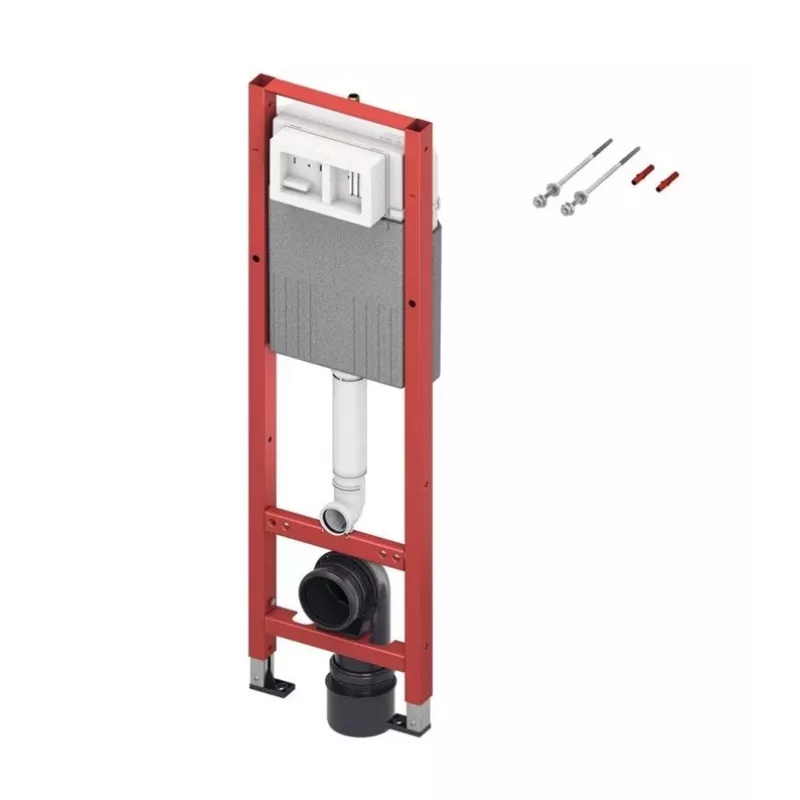

Wall-hung toilets demand a secure, concealed support system that can handle daily use without compromising on style or stability. The TECE Base 320 mm toilet installation module solves this by providing a self-supporting steel frame that disappears behind the wall, leaving only the sleek flush plate and toilet visible. It’s engineered for dry-wall construction and supports up to 400 kg, ensuring long-term reliability in any bathroom.

Who is it for

This module is ideal for plumbers, contractors, and DIY renovators installing wall-hung toilets in residential or commercial settings. It suits anyone who wants a clean, modern look with easy access to the cistern for maintenance, and it’s compatible with all TECE flush plates for a coordinated finish.

Main features

• Self-supporting powder-coated steel frame for dry-wall installation
• Concealed dual-flush cistern with 10 L capacity, adjustable large flush (4.5/6/9 L) and 3 L small flush
• Fully insulated against condensation and sound for quiet operation
• Load capacity up to 400 kg for heavy-duty use
• Front actuation with G 1/2" water connection
• Adjustable installation depth from 130 to 160 mm
• Includes cistern, frame, mounting material, and inlet/outlet connections (flush plate not included)

Specifications

• Installation height: 1120 mm
• Frame width: 500 mm
• Frame material: powder-coated steel
• Cistern material: high-density polyethylene (HDPE)
• Flush volumes: large adjustable 4.5/6/9 L, small 3 L
• Water connection: G 1/2"
• Compatibility: all TECE flush plates

Tips

For a seamless installation, ensure the wall cavity is at least 130 mm deep to accommodate the frame. Pair with a TECE flush plate of your choice to complete the look, and consider using soundproofing mats for additional noise reduction in high-traffic bathrooms.
