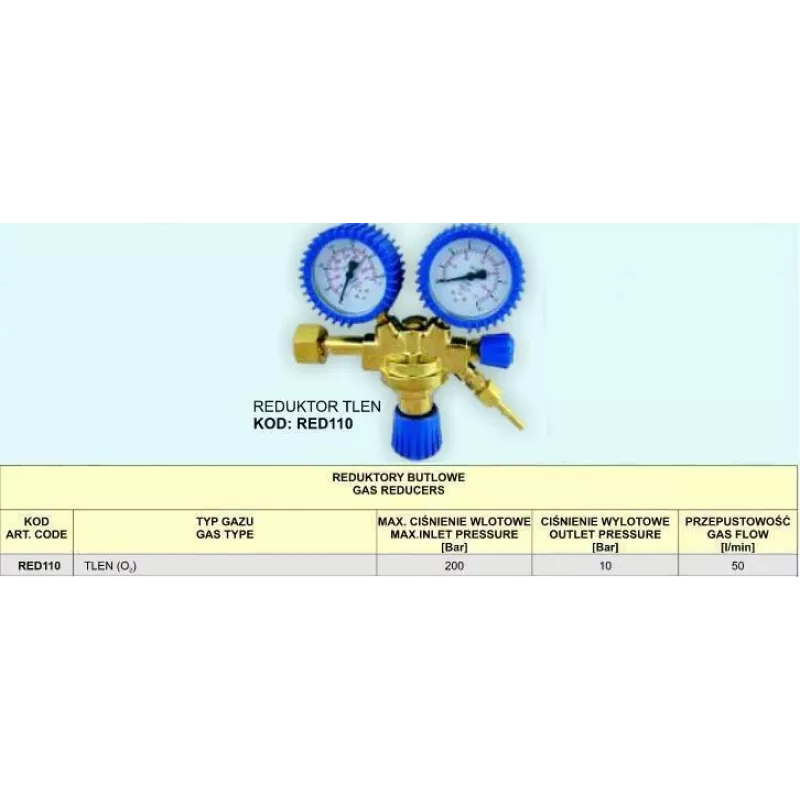

Zuurstoftransmitter 07 RED110 eentraps gasdrukregelaar voor lassen en snijden

In a busy metal fabrication workshop, a welder relies on precise oxygen flow to make clean cuts and strong welds. The Oxygen Reducer 07 RED110 delivers that precision with a rugged single-stage design, built to handle the demands of daily industrial use. With a maximum inlet pressure of 200 bar and an adjustable outlet range from 0.5 to 10 bar, it gives you the control needed for consistent gas delivery. The dual 63 mm gauges show inlet and outlet pressure at a glance, while the integrated safety valve protects against overpressure. Whether you're cutting thick steel or heating for bending, this regulator keeps your oxygen supply steady and safe.

Key specifications

• Gas type: Oxygen
• Regulator type: Single-stage
• Max inlet pressure: 200 bar (20 MPa)
• Outlet pressure range: 0.5 - 10 bar (0.05 - 1 MPa)
• Nominal flow rate: 30 m³/h
• Inlet connection: G 3/4"
• Outlet connection: G 1/4"
• Hose nipple diameter: 6.3 mm
• Body material: Brass
• Diaphragm material: EPDM
• Number of gauges: 2 (inlet and outlet pressure)
• Gauge diameter: 63 mm
• Inlet gauge scale: 0-300 bar
• Outlet gauge scale: 0-16 bar
• Safety valve: Integrated
• Operating temperature: -30°C to +60°C
• Compliance: EN ISO 2503

Why choose it

The RED110 is engineered for reliability in tough environments. Its brass body resists corrosion, and the EPDM diaphragm ensures long-lasting performance with oxygen. The large, easy-to-read gauges reduce the chance of misreading pressure, while the integrated safety valve adds an extra layer of protection. This regulator meets the EN ISO 2503 standard, so you can trust it for professional welding, cutting, and heating tasks.

Ideal use cases

• Oxy-fuel welding and brazing
• Oxy-fuel cutting of steel and other metals
• Heating for bending, straightening, or forming
• Industrial gas supply systems requiring precise pressure control

Good to know

The RED110 is a single-stage regulator, meaning the outlet pressure may vary slightly as the cylinder pressure drops. For applications requiring constant outlet pressure regardless of cylinder pressure, consider a two-stage regulator. Always use with compatible oxygen hoses and fittings, and ensure the regulator is cleaned for oxygen service to prevent contamination. The operating temperature range of -30°C to +60°C makes it suitable for both indoor and outdoor use in most climates.
