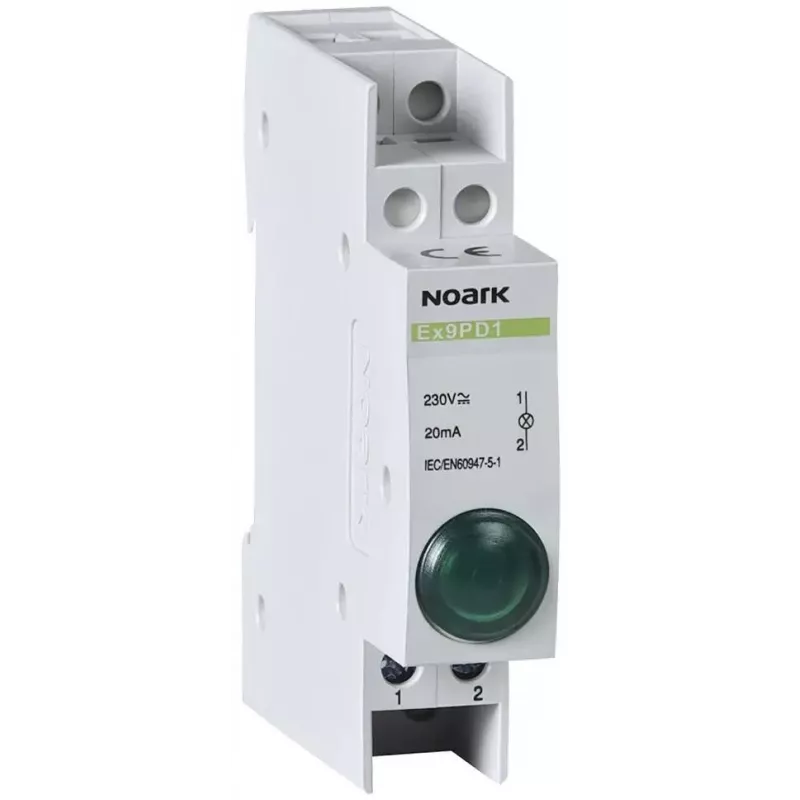

NOARK Ex9PD1g groene LED-indicatielamp 230V AC/DC 22mm inbouw IP65

The NOARK Ex9PD1g is a high-quality LED indicator light designed for industrial control panels and automation systems. With a green LED light source and a rated voltage of 230V AC/DC, this pilot light provides clear visual status indication in demanding environments. Its robust construction and IP65 front protection ensure reliable operation even in harsh conditions.

Advantages

Long electrical lifespan of over 30,000 hours reduces maintenance costs. The IP65 front protection rating makes it suitable for outdoor or dusty environments. Screw terminals simplify wiring, and the compact 22mm mounting diameter fits standard panel cutouts.

Suitable for

• Industrial control panels
• Automation systems
• Machine status indication
• Power distribution units
• Building management systems

Key specifications

• Product Type: LED Indicator Light
• Light Colour: Green
• Operating Voltage: 230V AC/DC
• Mounting Diameter: 22 mm
• Light Source Technology: LED
• Terminal Type: Screw Terminals
• Front Protection Rating (IP): IP65
• Terminal Protection Rating (IP): IP20
• Operating Temperature Range: -25°C to +70°C
• Storage Temperature Range: -40°C to +85°C
• Electrical Lifespan: >30,000 hours
• Rated Insulation Voltage (Ui): 500V
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Pollution Degree: 3
• Standards Compliance: IEC/EN 60947-5-1
• Housing Material: Thermoplastic
• Number of Indicator Elements: 1
• Connection Capacity: 1 x 2.5 mm² / 2 x 1.5 mm²
• Illumination Type: Continuous
• Installation Type: Panel Mount

Recommendations

For optimal performance, ensure the mounting hole is 22mm and the panel thickness is within the specified range. Use appropriate screw terminals for secure connections. This indicator light is ideal for applications requiring a durable and long-lasting visual signal.
