Novoflex TRIOBAL houder

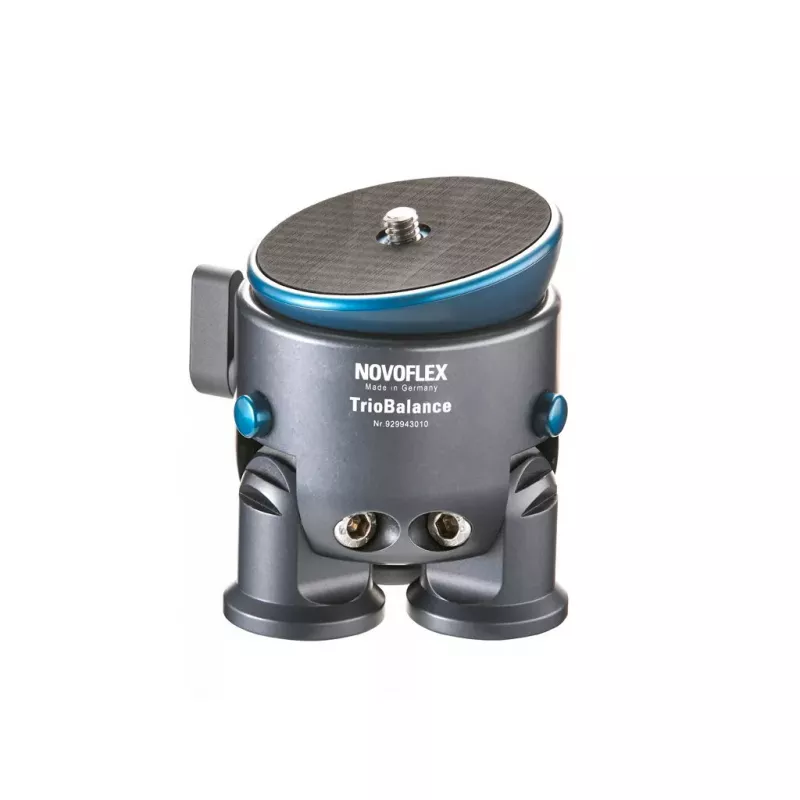

Novoflex TRIOBAL tripod base with integrated leveller and single connection, designed to provide stable and adjustable support for photographic equipment. The compact holder features a 1/4" upper thread for camera or accessory attachment, side accessory connections and selectable leg angles to suit different working conditions.

Advantages

The integrated leveller allows adjustment up to 15° in all directions to achieve a precise horizontal position. Lightweight construction (470 g / 1.04 lbs) combines portability with robust build quality. Multiple connection threads (1/4" and 3/8") on the sides increase compatibility with a wide range of accessories and tripod heads. Four resting angles for leg connections (20°, 40°, 60° and 87°) provide flexible setup options for low or high positioning.

Suitable for

• Photographers who need a compact, level-adjustable tripod base
• Attaching cameras or small accessories to tripods using 1/4" thread
• Situations requiring precise leveling on uneven terrain
• Setups that require different leg spreading angles for stability or low-angle shots

Key specifications

• Weight: 470 g (1.04 lbs)
• Upper thread connection: 1/4"
• Side accessory connections: 1/4" and 3/8"
• Integrated leveller: ±15° adjustability
• Resting angles of leg connections: 20°, 40°, 60°, 87°
• Brand: Novoflex, Model: TRIOBAL, EAN: 4030432810188

How to use

Mount the Novoflex TRIOBAL onto your tripod or attach your camera/accessory to the upper 1/4" thread. Use the integrated leveller to correct tilt by adjusting up to 15° in any direction until the equipment is horizontal. Select the desired leg resting angle (20°, 40°, 60° or 87°) according to required height and stability, and secure the legs in position. Attach side accessories to the 1/4" or 3/8" threads as needed.

Recommendations

For best results, check thread compatibility with your equipment before mounting and avoid exceeding load capacities recommended by your tripod or attached head. Use the leveller for fine adjustments on uneven surfaces and choose a wider leg angle for greater stability with heavier loads.
