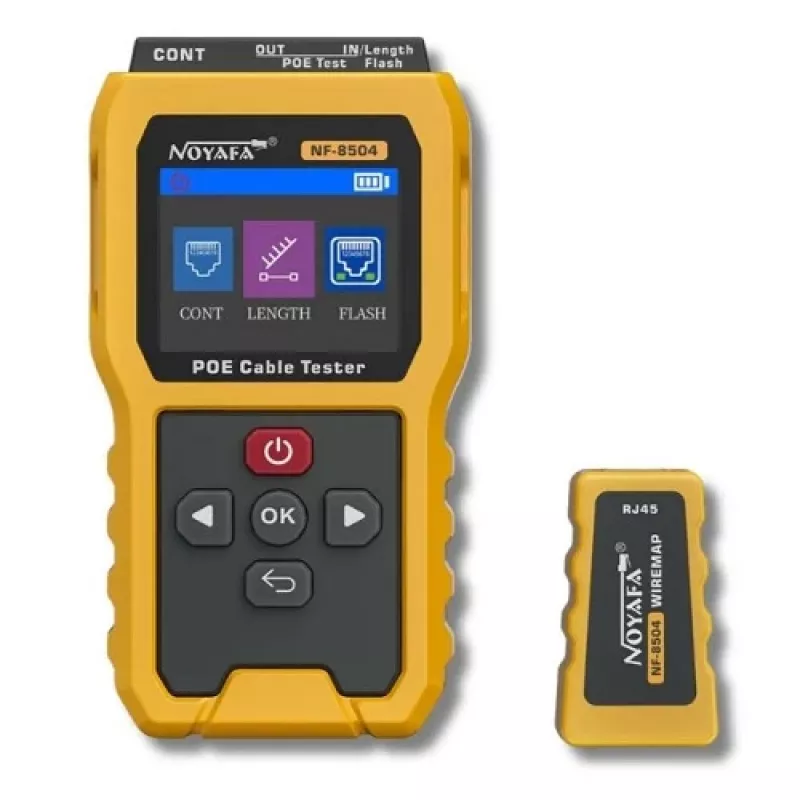

NOYAFA NF-8504 PoE-tester met pinout-detectie en vermogensmeting

Network cable tester with PoE detection, pinout verification, and power measurement. Supports IEEE 802.3af/at/bt standards up to 60V DC and 200W, with PSE type and PD class identification.

Advantages

Backlit LCD display, port blink function, and auto-negotiation status display make it easy to diagnose network issues. Durable ABS housing and low battery indicator ensure reliable field use.

Suitable for

• Network technicians installing PoE devices
• IT professionals troubleshooting Ethernet connections
• Maintenance of IP cameras, access points, and VoIP phones

Key specifications

• PoE standards: IEEE 802.3af, 802.3at, 802.3bt
• Voltage measurement: 0-60V DC, accuracy ±(1% + 0.5V)
• Power measurement: 0-200W, accuracy ±(3% + 1W)
• Cable tests: continuity, open, short, cross, split pairs
• Pinout detection for 10/100/1000Base-T
• PSE type detection: End-span Type A, Mid-span Type B
• PD class detection: Classes 0-8
• Ethernet speed detection: 10/100/1000 Mbps
• Display: backlit LCD
• Power: 2x AAA batteries
• Connectors: 2x RJ45 (input, loopback/output)
• Operating temperature: 0°C to 40°C

Recommendations

Ideal for field technicians who need a portable, all-in-one tool for PoE verification and cable testing.
