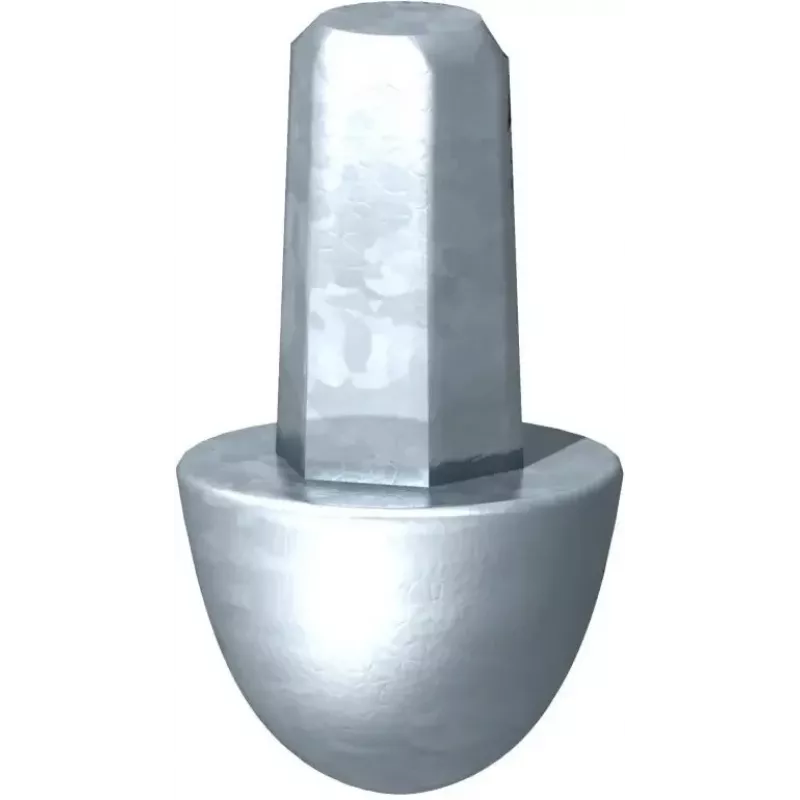

OBO Bettermann aardingspen 1819/25 25mm (3041255)

Electricians and grounding system installers use the OBO Bettermann Earth Spike 1819/25 to drive grounding rods into soil efficiently. This spike is made for outdoor, underground applications where a durable connection to earth is required.

Key specifications

• Product type: Earth Spike / Grounding Rod Tip
• Material: Steel
• Surface treatment: Hot-dip galvanized
• Nominal diameter: 25 mm
• Overall length: 250 mm
• Series: 1819
• Connection type: Drive-in
• Compatibility: Grounding rods with 25 mm nominal diameter

Why choose it

The hot-dip galvanized coating provides high corrosion resistance, ensuring long-term performance in harsh soil conditions. Its drive-in design allows for straightforward installation without special tools.

Ideal use cases

• Grounding rod installation for electrical systems
• Lightning protection earthing
• Telecommunication tower grounding
• Industrial facility earthing

Good to know

This earth spike is part of the OBO Bettermann 1819 series and is designed to facilitate penetration of grounding rods into the ground, meeting the requirements of DIN EN 62561-2 (VDE 0185-561-2).
