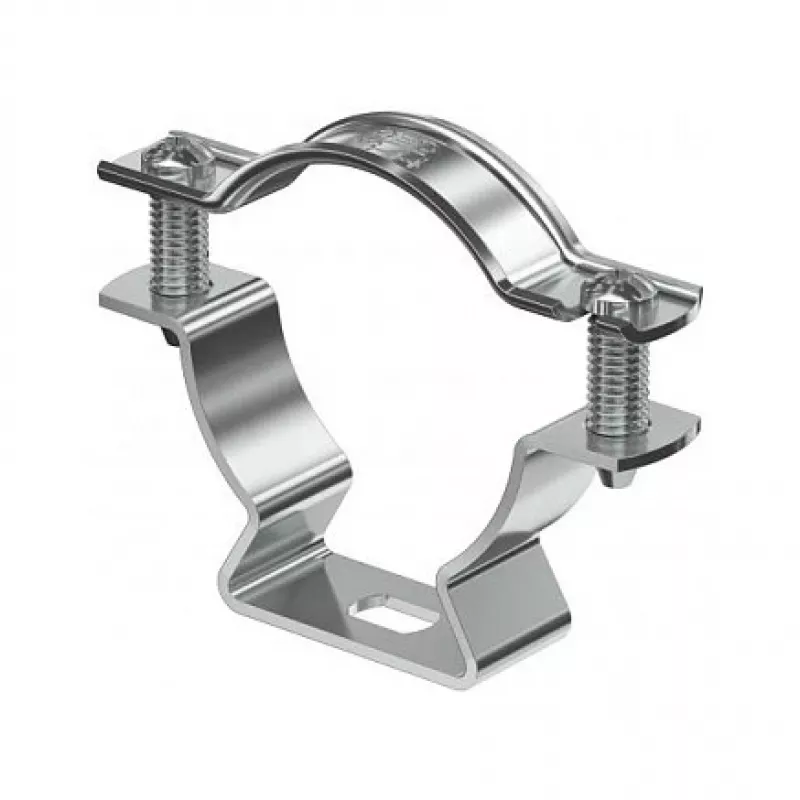

OBO BETTERMANN ASL 733 44 ALU afstandbeugel met langgat, 36-44 mm, aluminium

While many cable clamps rely on plastic, the OBO BETTERMANN ASL 733 44 ALU uses an aluminium body that stays dimensionally stable under heat, cold and UV exposure. This spacer clamp is built for secure single-line fastening of cables, pipes and conduits in the 36–44 mm diameter range. Its sliding slot gives you lateral play during installation, so you can align the clamp precisely before locking it down with a screw.

Highlights

• Clamping range 36–44 mm for one cable, pipe or conduit
• Spacer design sets a defined 44 mm distance from the mounting surface
• Aluminium body with inherent corrosion resistance and UV stability
• 7 x 15 mm slotted hole for easy positioning and screw fastening
• Halogen-free and operational from -50 °C to +150 °C

In daily use

Start by positioning the clamp around the line. The slotted hole accepts standard screws and permits horizontal adjustment before final tightening. The 44 mm standoff keeps the clamped media at a defined distance from the wall, which simplifies routing and inspection. Once fixed, the aluminium body holds firm across a broad temperature range, and the open design makes later removal simple.

Full specifications

• Product series: ASL
• Type: Spacer clamp with slotted hole
• Material: Aluminium
• Clamping range diameter: 36–44 mm
• Distance to wall: 44 mm
• Mounting: Screw fastening via slotted hole 7 x 15 mm
• Width: 18 mm
• Height: 50 mm
• Halogen-free: Yes
• UV-resistant: Yes
• Temperature range: -50 °C to +150 °C
• Colour: Aluminium / metallic

Final note

This spacer clamp is a robust, corrosion-resistant mounting solution for a single cable, pipe or conduit in the 36–44 mm range. Its aluminium body and slotted mounting hole make it a dependable choice for both new installations and retrofits.
