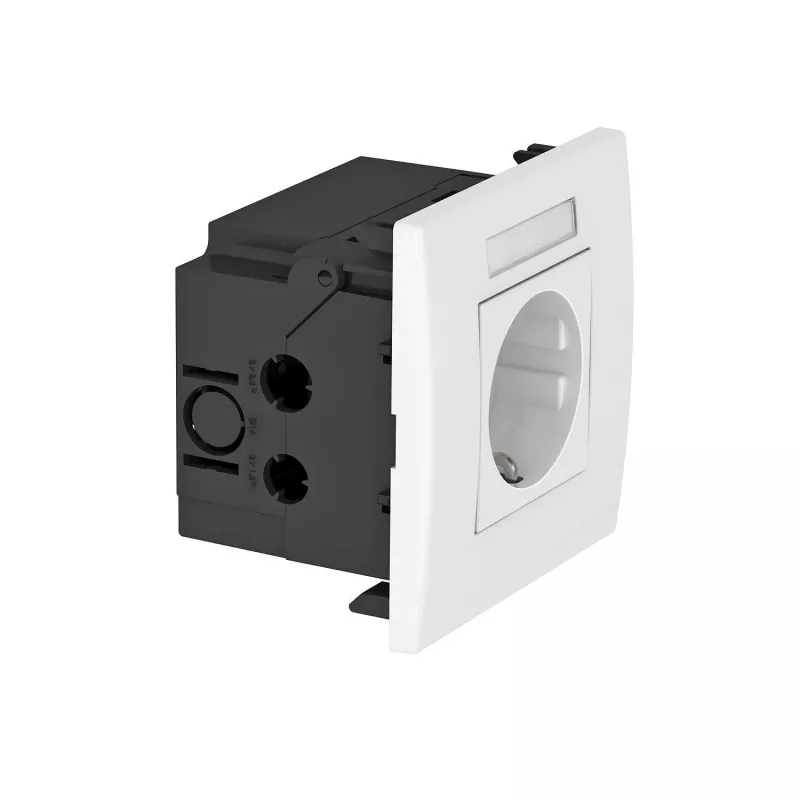

OBO Bettermann BSF apparaat-inbouwstopcontact 1-voudig Schuko zuiver wit IP20 inbouw 6119421

Need a reliable power outlet that integrates seamlessly with OBO BSF trunking systems? The OBO Bettermann 6119421 device installation socket provides a single Schuko socket in a clean pure white finish, designed for flush mounting in dry indoor environments.

Who is it for

Electricians and installers working with OBO BSF device installation trunking who require a halogen-free, screw-terminal socket for horizontal or vertical orientation.

Main features

• 1-gang Schuko socket (Type F) rated at 250 V, 16 A
• Pure white (RAL 9010) polycarbonate housing, halogen-free
• IP20 protection, suitable for dry rooms
• Flush-mounted design compatible with OBO BSF trunking
• Supports horizontal and vertical mounting orientations

Specifications

• Product type: Device installation socket
• Number of sockets: 1
• Socket type: Schuko (Type F)
• Colour: Pure white (RAL 9010)
• Material: Polycarbonate (PC)
• IP rating: IP20
• Rated voltage: 250 V
• Rated current: 16 A
• Mounting type: Flush-mounted
• Connection type: Screw terminals
• Halogen-free: Yes
• Increased touch protection: No
• Series: BSF

Tips

For a consistent look, pair this socket with other OBO BSF components in pure white. Ensure installation is performed by a qualified electrician and that the circuit is de-energized before wiring.
