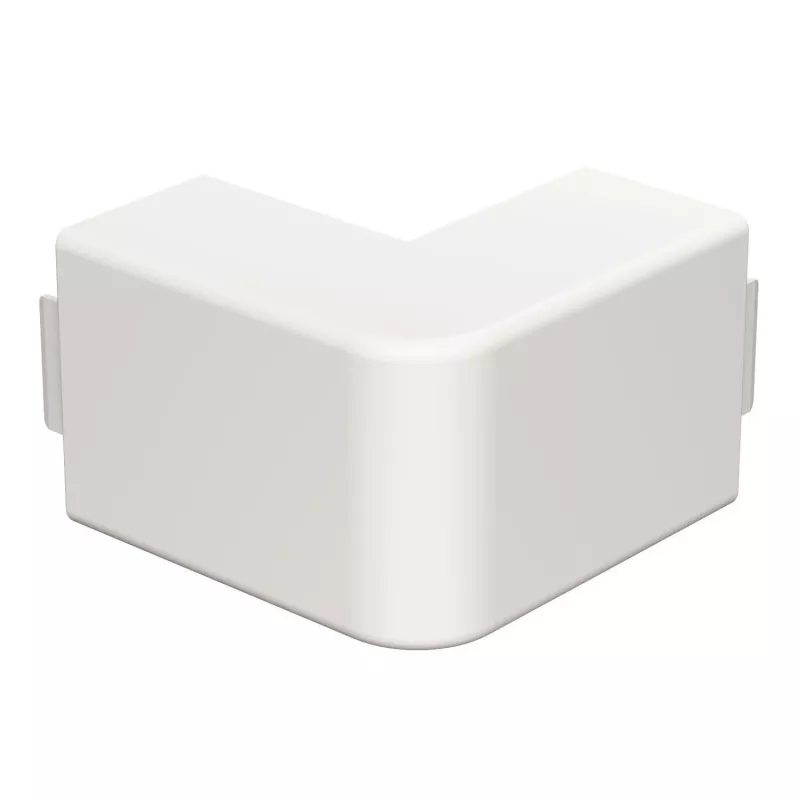

OBO Bettermann buitenhoekafdekking WDK/HA 40060 zuiverwit (6192254)

When cable trunking meets a 90-degree external corner, a standard straight section leaves the bend exposed and the installation looking unfinished. The OBO Bettermann External Corner Cover WDK/HA 40060 solves this by providing a clean, matching cover for the corner of 40 x 60 mm WDK trunking. It snaps onto the trunking base, protecting cables and giving the run a neat, professional appearance.

Who is it for

Electricians and installers who use OBO Bettermann WDK cable trunking and need to route cables around external corners in offices, commercial buildings, or residential projects. It is also useful for maintenance teams extending or repairing existing trunking runs.

Main features

• Designed specifically for OBO Bettermann WDK trunking with dimensions 40 x 60 mm.
• Forms a 90-degree external corner, allowing cables to turn smoothly.
• Clip-on mounting for quick installation without tools.
• Made from PVC in pure white (RAL 9010) to match standard trunking.
• Self-extinguishing material for added safety in case of fire.

Specifications

• Product type: External corner cover
• Compatible trunking dimensions (H x W): 40 x 60 mm
• Corner angle: 90 degrees
• Material: PVC
• Colour: Pure white (RAL 9010)
• Mounting type: Clip-on / snap-on
• Halogen-free: No
• Self-extinguishing: Yes
• Operating temperature range: -5 to +60 °C
• RoHS compliant: Yes
• REACH compliant: Yes

Tips

Ensure the trunking base is cut cleanly and deburred before fitting the corner cover. For a seamless look, use the same colour trunking and accessories throughout the installation. If the trunking is exposed to direct sunlight, consider using a UV-stabilised alternative, as this cover is recommended for indoor use.
