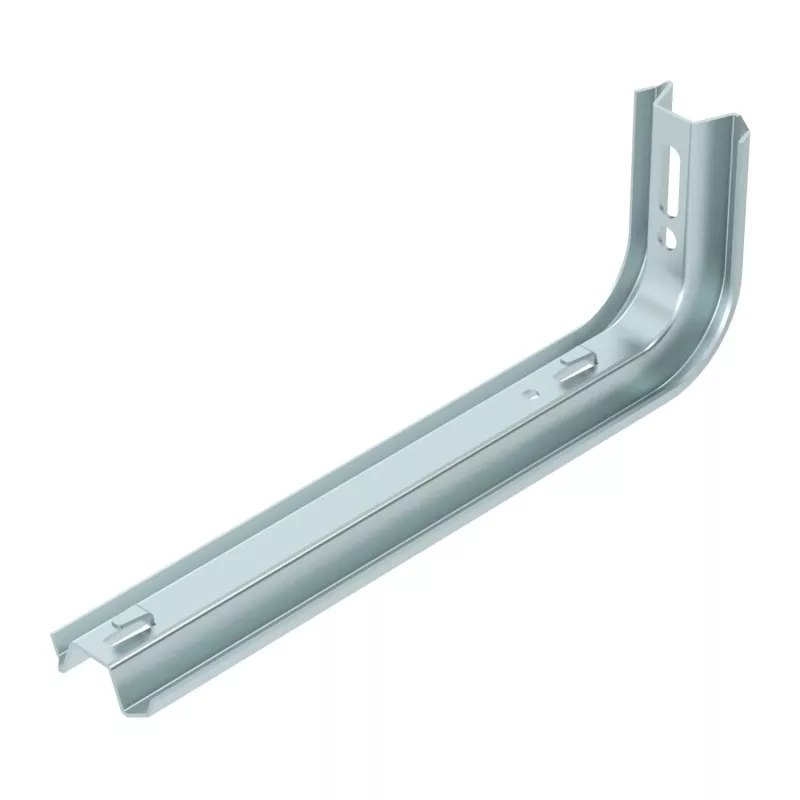

OBO Bettermann draagarmconsole TPSAG 345 FS voor 300 mm gaasgoot 6366066

In industrial and commercial buildings, electricians and installers need a reliable way to support wire mesh cable trays along walls and ceilings. The OBO Bettermann TPSAG 345 FS cantilever bracket provides a sturdy mounting solution for 300 mm wide wire mesh cable trays, ensuring secure cable routing in demanding environments.

Key specifications

• Type: Cantilever bracket
• Material: Steel
• Surface finish: Hot-dip galvanised
• Suitable for cable tray width: 300 mm
• Cantilever projection length: 345 mm
• Profile dimensions (W x H): 40 x 20 mm (C-profile)
• Permissible load: 0.6 kN
• Mounting type: Wall or ceiling
• Number of mounting holes: 2
• Mounting hole diameter: 11 mm
• Corrosion protection class: Medium to High (C3-C4)
• System compatibility: OBO Bettermann wire mesh cable tray systems
• Standard: DIN EN 10346 (steel), DIN EN ISO 1461 (galvanisation)
• Colour: Metallic grey
• Weight: 0.65 kg

Why choose it

The hot-dip galvanised steel construction offers excellent corrosion resistance, making it suitable for both indoor and outdoor installations in medium to high corrosivity environments. Its C-profile design provides high load-bearing capacity while keeping the bracket lightweight and easy to handle.

Ideal use cases

• Supporting wire mesh cable trays in industrial plants
• Routing cables along walls in commercial buildings
• Ceiling installations where space is limited
• Outdoor installations requiring corrosion protection

Good to know

The bracket is designed for use with OBO Bettermann wire mesh cable tray systems and requires appropriate wall or ceiling anchors for mounting. It is supplied as a single unit.
