Beregeningsbesturing RainPoint HTV145FRF met Wi‑Fi-connectiviteit

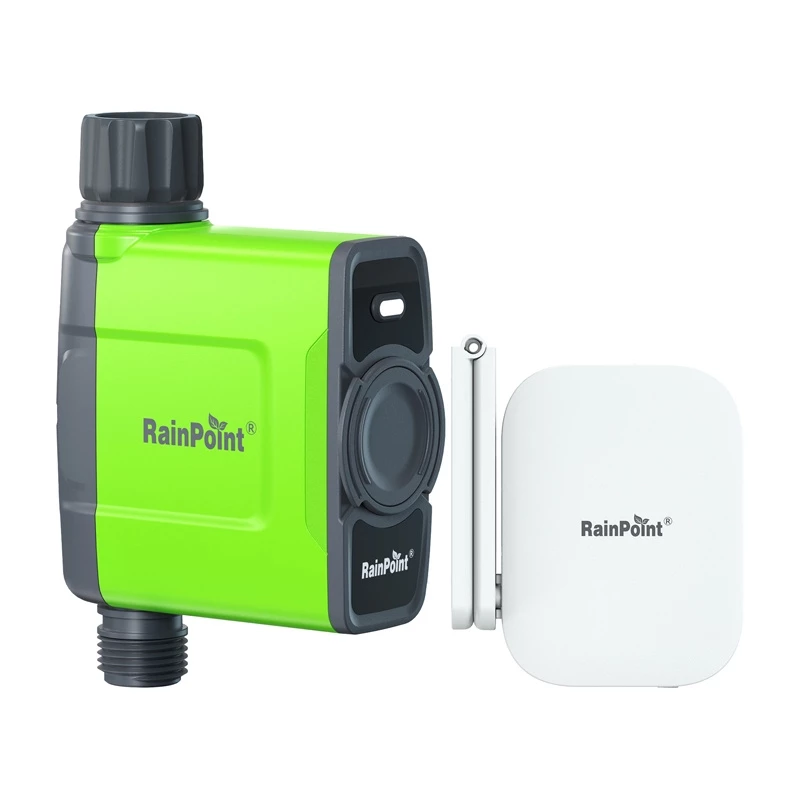

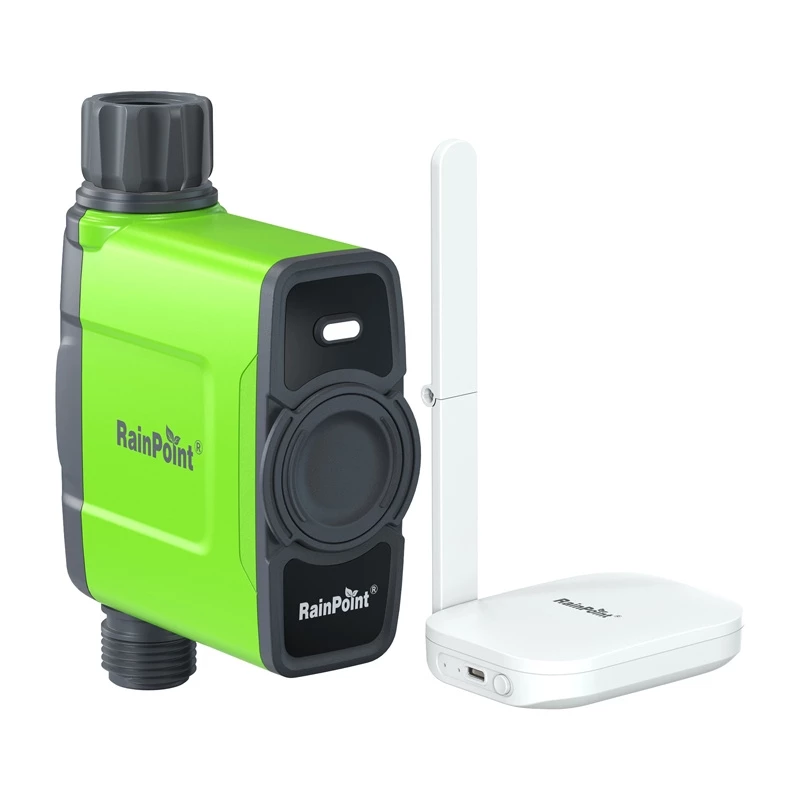

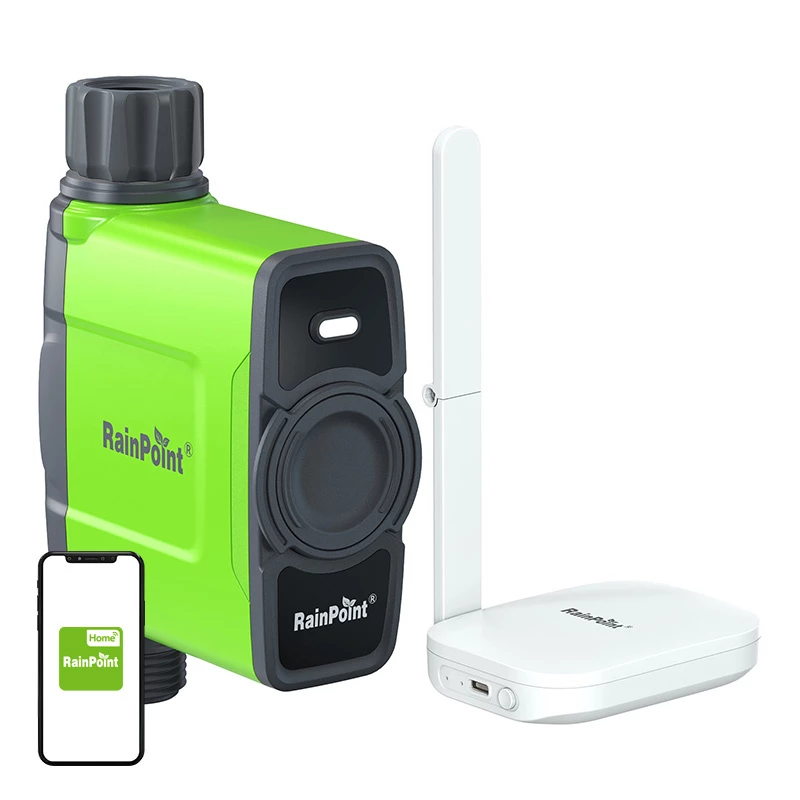

RainPoint HTV145FRF is a single‑zone irrigation controller with built‑in Wi‑Fi gateway for remote management via the RainPoint Home app. The unit supports voice control with Amazon Alexa and Google Assistant, includes a flow meter for real‑time water monitoring, and offers automatic rain delay. The IP65 rated housing, brass inlet and integrated filter provide weather resistance for outdoor installation. The package contains the 1‑zone controller, a Wi‑Fi gateway, a USB‑C cable, a user manual and a quick start guide.

Advantages

The controller provides three watering modes and five frequency options, enabling precise scheduling for flower beds, vegetable plots or lawns. Remote access through the RainPoint Home app allows multiple daily schedules and manual run times from 1 minute up to 12 hours. A Wi‑Fi gateway extends the connection up to about 250 m in open space, and compatibility with voice assistants enables simple start/stop commands. The built‑in flow meter helps monitor and optimize water consumption.

Suitable for

• Small residential gardens and lawns
• Flower beds and decorative plantings
• Vegetable beds and small allotments
• Automated single‑zone irrigation systems

Key specifications

• Manufacturer: RainPoint
• Model: HTV145FRF+HWG023WBRF
• Application: RainPoint Home
• Zone count: 1
• Range between gateway and controller: up to 250 m (open area)
• Range between gateway and router: 220 m
• Operating pressure: 0.5–8 bar
• Water flow rate: 5–35 l/min
• Operating temperature (controller): 3°C–50°C
• Operating temperature (gateway): 3°C–40°C
• Power (controller): 4× AA alkaline batteries (not included)
• Power (gateway): USB‑C plug adapter
• Wi‑Fi: 2.4 GHz
• Ingress protection: IP65
• Water inlet: BSP for 3/4" or 1" taps

How to use

Install the controller at the irrigation water inlet and connect the brass inlet to a compatible 3/4" or 1" tap using the BSP thread. Place the Wi‑Fi gateway within range of both the router and the controller (up to approx. 220 m to the router and 250 m to the controller in open space). Power the controller with four AA alkaline batteries and power the gateway with the supplied USB‑C adapter. Download the RainPoint Home app, follow the in‑app setup to add the gateway and controller, configure schedules or manual runs, enable rain delay if required, and pair with Amazon Alexa or Google Assistant for voice control.

Recommendations

Use the RainPoint Home app to create watering schedules that match plant types and seasonal needs; monitor flow meter readings regularly to detect leaks or unusual consumption. Install the controller and gateway where they are sheltered from direct mechanical impact, keep the filter clean, and replace batteries before prolonged periods of inactivity.
