OBO Bettermann kleinverdeler SDB 09 PS, 9 module-eenheden, opbouw, IP65, grijs 2008808

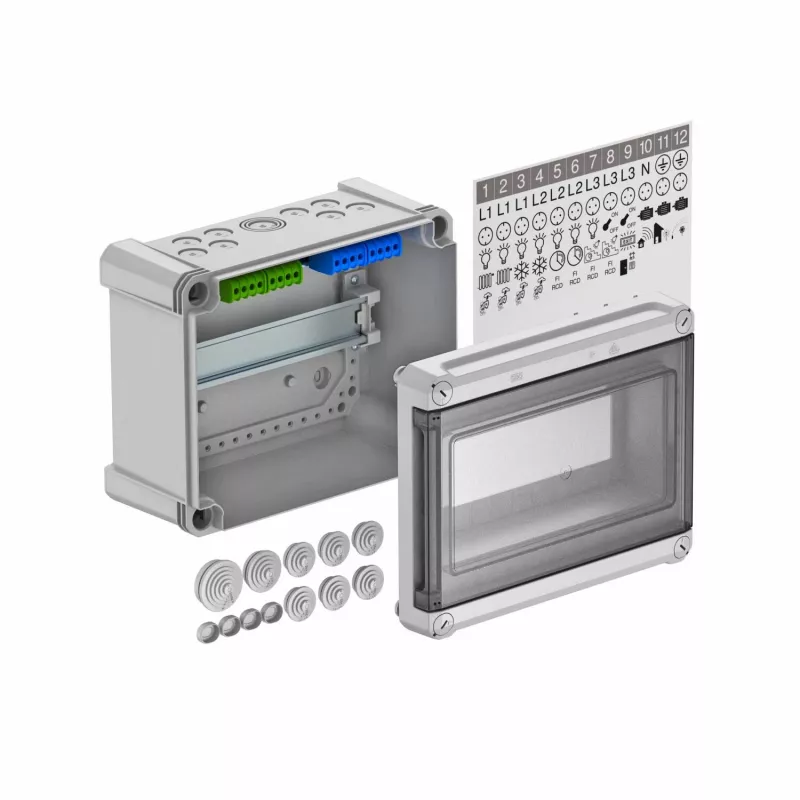

Small distribution board for surface mounting, providing 9 module units in a single row. The transparent door allows quick visual inspection of installed devices.

Advantages

Polystyrene housing offers high impact resistance (IK08) and protection against dust and water jets (IP65). Halogen-free material and pre-punched metric knockouts simplify installation.

Suitable for

• Residential and commercial electrical distribution
• Indoor and outdoor applications requiring IP65 protection
• Installations up to 400 V AC and 63 A

Key specifications

• Number of module units: 9 (1 row)
• Protection class: IP65
• Impact resistance: IK08
• Housing material: Polystyrene (PS)
• Door: Transparent polystyrene
• Colour: Grey (RAL 7035)
• Rated voltage: up to 400 V AC
• Rated current: up to 63 A
• DIN rail: 35 mm included
• N/PE terminals included
• Operating temperature: -25 °C to +40 °C
• Standards: DIN VDE 0603-1, EN 61439-3

Recommendations

Verify cable entry positions before mounting; knockouts are pre-punched for metric glands.
