OBO BETTERMANN LK4 80x120 bedradingsgoot, steengrijs, 2m 6178061

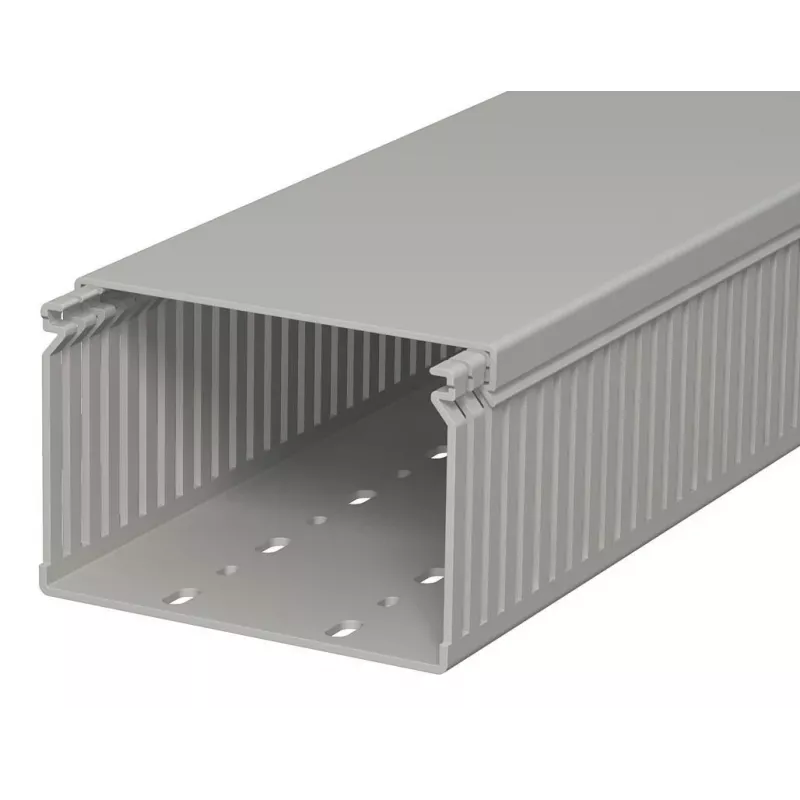

Control cabinet builders and electrical installers use the OBO BETTERMANN LK4 80x120 wiring duct to route and protect cables in structured installations. This 2-meter section in stone grey (RAL 7030) has a slotted side wall design for easy cable entry and breakout, with a snap-on cover to keep wiring tidy and accessible.

Key specifications

• Series: LK4
• Material: PVC (Polyvinyl Chloride)
• Colour: Stone Grey (RAL 7030)
• Width: 80 mm
• Height: 120 mm
• Length: 2000 mm
• Slot width: 4.5 mm
• Slot spacing: 6.5 mm
• Cover included: Yes
• Halogen-free: No
• Temperature resistance: -5 to +60 °C
• Flammability rating: UL94 V-0
• Mounting: Screw-on via pre-punched holes
• UV resistant: No

Why choose it

The LK4 duct provides high cable capacity in a compact footprint, making it suitable for dense control cabinet wiring. The slotted walls allow cables to exit at any point without cutting, and the included cover snaps on securely while remaining easy to remove for maintenance.

Ideal use cases

• Control cabinet cable management
• Electrical installation trunking
• Routing power and signal cables in industrial panels

Good to know

This duct is made of PVC and is not halogen-free. It is designed for indoor use and is not UV resistant. The base has pre-punched holes for screw mounting.
