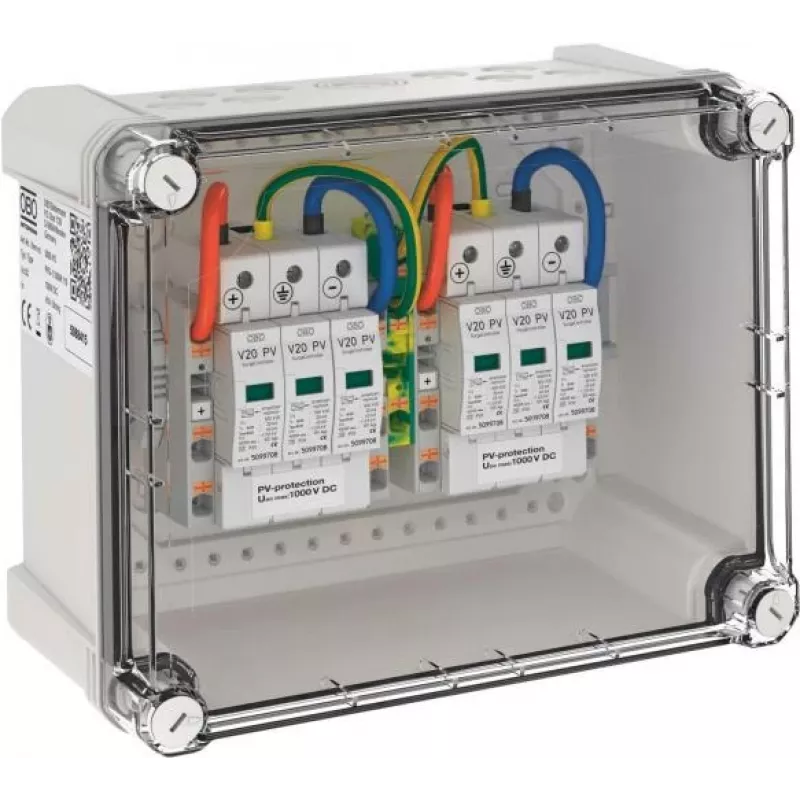

OBO PVG-C1000K 110 PV generator-aansluitkast 2x1 string 1000V DC IP65

Photovoltaic installations demand reliable, safe, and efficient connection of solar strings to inverters. The OBO PVG-C1000K 110 generator connection box solves this by providing a robust, pre-wired enclosure that consolidates two PV strings and feeds them to two MPP trackers of a central inverter. This eliminates messy field wiring, reduces installation time, and enhances system protection with integrated surge arresters and a DC disconnector.

Who is it for

This connection box is ideal for solar installers, EPC contractors, and system integrators working on residential, commercial, or industrial PV systems up to 1000 V DC. It suits projects where two strings need to be combined and connected to a dual-MPPT inverter, ensuring compliance with safety standards and long-term reliability.

Main features

• Pre-wired for 2 PV strings and 2 MPP trackers
• Integrated Type 2 DC surge protection (3-pole per string)
• Built-in 2-pole DC disconnector per string (30 A rated)
• IP65 weatherproof enclosure with UV-resistant polycarbonate housing
• MC4 connectors for quick, tool-free installation
• Maximum system voltage 1000 V DC, total input current 30 A

Specifications

• Product type: Photovoltaic (PV) Generator Connection Box
• Number of PV strings: 2
• Number of MPP trackers supported: 2
• Max. system voltage (Uoc max): 1000 V DC
• Max. input current per string (Isc max): 15 A
• Total max. input current: 30 A
• Surge protection device: Type 2 DC surge arrester, 3-pole per string (+/GND/-)
• Rated discharge current (In): 20 kA (8/20 µs)
• Max. discharge current (Imax): 40 kA (8/20 µs)
• Short-circuit current rating (Isccr): 10 kA
• Integrated DC disconnector: Yes, 2-pole per string
• Rated current of DC switch: 30 A
• Protection class: IP65
• Housing material: UV-resistant Polycarbonate (PC)
• Input connection type: MC4 connectors
• Output connection type: MC4 connectors
• Operating temperature range: -25°C to +60°C
• Mounting type: Wall mounting

Tips

Ensure proper cable sizing according to local regulations and the maximum current of 15 A per string. Mount the box in a shaded, accessible location to prolong component life. Use the integrated DC disconnector for safe maintenance and emergency isolation. Regularly inspect surge protection modules and replace if the status indicator shows failure.
