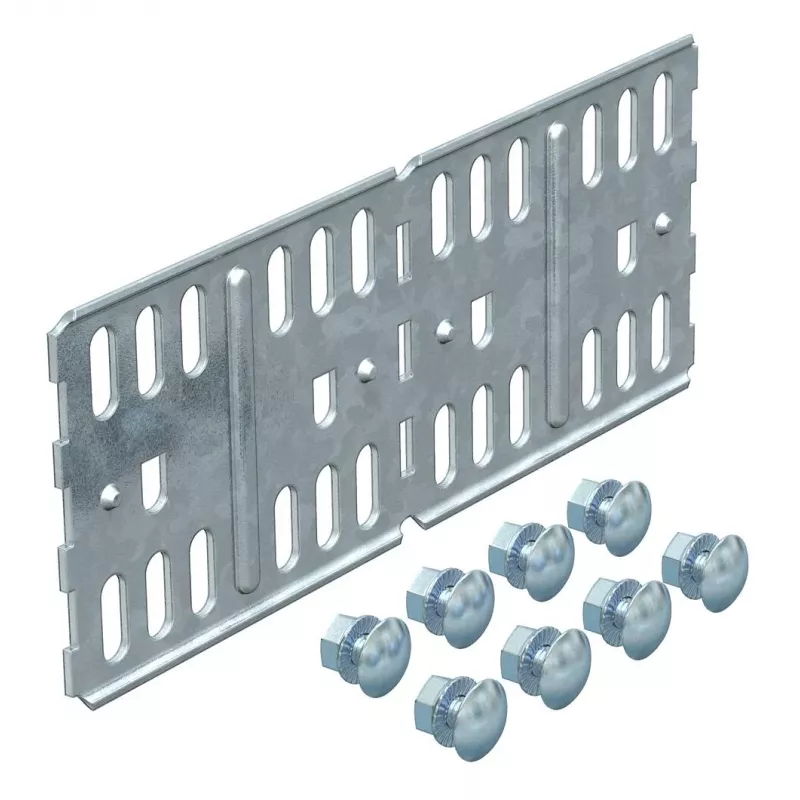

OBO Bettermann RLVL 85 langs- en hoekverbinder 85x200 (6067123)

Electricians and panel builders installing cable tray systems in industrial or commercial buildings use the OBO Bettermann RLVL 85 connector to join cable tray sections end-to-end or at an angle. This stainless steel connector fits trays with 85 mm side height and provides a secure screw connection.

Key specifications

• Type: Longitudinal and angle connector
• Material: Stainless steel 1.4301 (A2)
• Surface finish: Untreated / pickled
• Compatible cable tray side height: 85 mm
• Length: 200 mm
• Width: 85 mm
• Profile height: 20 mm
• Connection method: Screw connection
• Mounting holes: Pre-punched for M6 screws (screws not included)
• Adjustability: Angle adjustable via slotted holes
• Corrosion resistance: High (V2A equivalent)
• Standards compliance: DIN EN 61537
• System compatibility: OBO Bettermann RLVL system
• Application environment: Indoor and outdoor
• Number of pieces per unit: 1

Why choose it

The RLVL 85 connector is made from stainless steel 1.4301, offering high corrosion resistance for long-term reliability in both indoor and outdoor installations. Its slotted holes allow angle adjustment, making it versatile for straight runs or changes in direction. Pre-punched mounting holes speed up installation.

Ideal use cases

• Joining cable tray sections in straight runs
• Creating angle connections at tray corners or bends
• Industrial facilities, commercial buildings, and outdoor installations
• Projects requiring compliance with DIN EN 61537

Good to know

The connector is supplied as a single piece. Mounting screws are not included; use M6 screws appropriate for the tray material and installation conditions. The untreated pickled surface is standard for stainless steel and provides a clean finish.
