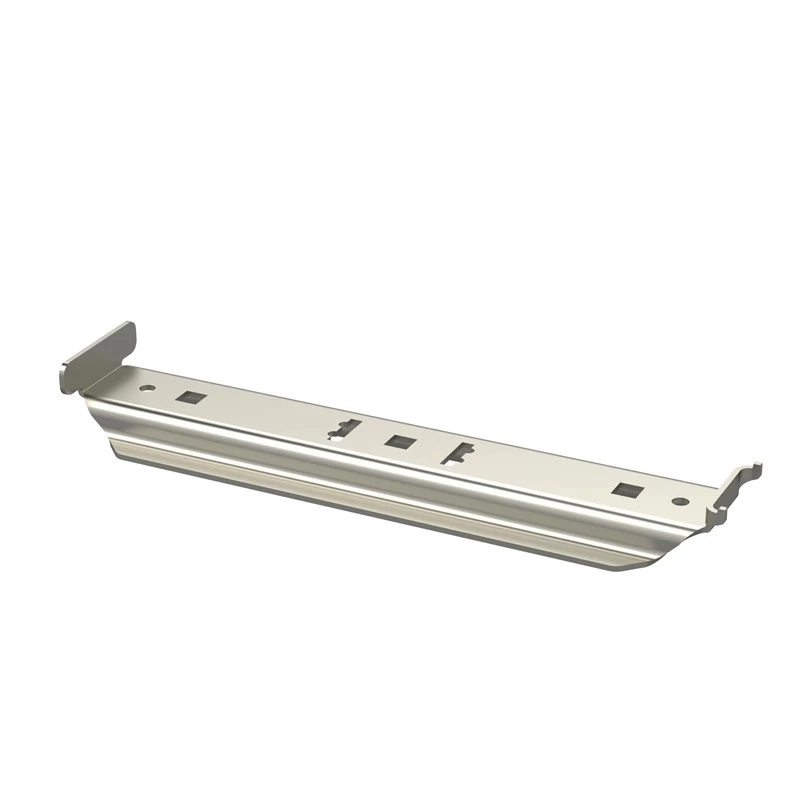

OBO Bettermann SUPPORT RMK-60-400 10 PG wandbeugel, 60 mm profiel, 400 mm uitval, staal, thermisch verzinkt

The OBO Bettermann SUPPORT RMK-60-400 10 PG is a robust wall-mounted support bracket designed for cable management systems. Engineered for reliability, this bracket provides secure support for cable trays and ladders, ensuring organized and safe cable routing in industrial, commercial, and infrastructure projects.

Advantages

Hot-dip galvanized finish offers excellent corrosion protection (class C3) for indoor and protected outdoor use. The steel construction delivers high load capacity up to 0.7 kN (approx. 70 kg). Pre-drilled mounting holes (M10/M12) simplify installation. Compatible with OBO Bettermann cable tray systems such as RKS-Magic and SKS-Magic.

Suitable for

• Wall mounting of cable trays and ladders in electrical installations
• Supporting cable runs in data centers, industrial plants, and commercial buildings
• Use in environments requiring medium corrosion resistance (C3)

Key specifications

• Product Type: Support Bracket
• Mounting Type: Wall Mounting
• Material: Steel
• Surface Finish: Hot-dip galvanized
• Profile Height: 60 mm
• Cantilever Length: 400 mm
• Max Load Capacity: 0.7 kN (approx. 70 kg)
• Compatibility: OBO Bettermann Cable Trays & Ladders (RKS-Magic, SKS-Magic)
• Corrosion Protection Class: C3 (Medium)
• Standard Compliance: DIN EN 10346
• Mounting Hole Diameter: M10/M12 (pre-drilled)
• Colour: Metallic Grey

Recommendations

For optimal performance, ensure the wall surface is suitable for the load and use appropriate fasteners (not included). Always follow local installation guidelines and safety standards.
