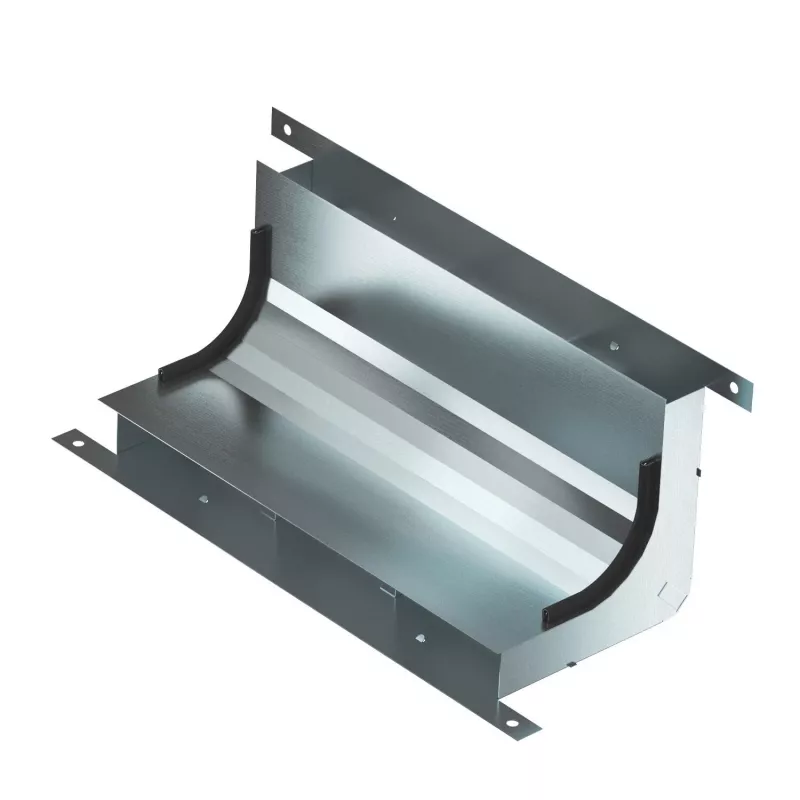

OBO Bettermann verticale bocht 3-kamer voor EÜK-2 KV3 35038-2 (7400662)

Underfloor cable management systems often struggle with tight bends and multi-compartment routing. This vertical bend solves that by providing a 90-degree change of direction for three separate cable runs within the OBO Bettermann EÜK-2 KV3 channel system. It is made for installations where cables must transition vertically while staying organized and protected.

Who is it for

Electrical installers and building contractors working with OBO Bettermann underfloor channels. It suits projects that require a reliable, corrosion-resistant bend for a 350 mm wide, 38 mm high channel with three compartments.

Main features

• Three compartments for separated cable routing
• 90-degree vertical bend for floor channel systems
• Hot-dip galvanized steel for corrosion protection
• Compatible with EÜK-2 KV3 series, 350 mm channel width

Specifications

• Product type: Vertical bend
• Application: Underfloor cable management
• System series: OBO Bettermann EÜK-2 KV3
• Number of compartments: 3
• Compatible channel width: 350 mm
• Compatible channel height: 38 mm
• Bend angle: 90°
• Bend radius: 100 mm
• Material: Steel
• Surface finish: Hot-dip galvanized
• Colour: Silver-grey

Tips

Verify that your existing channel is the EÜK-2 KV3 series with a 350 mm width before ordering. This bend is for vertical transitions; for horizontal changes, a different component is required.
