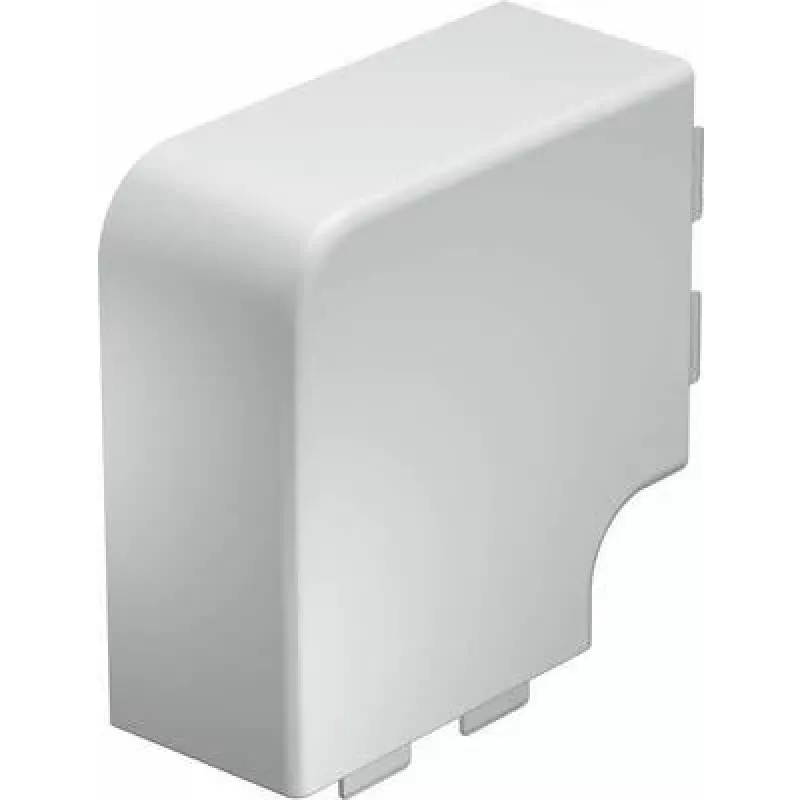

OBO BETTERMANN vlakke hoekafdekking WDK/HF 60110 reinwit (6192939)

Electricians and panel builders working with OBO Bettermann WDKHF cable ducts will find this flat angle cover essential for creating clean 90-degree internal corners on flat surfaces. It snaps securely onto the duct, maintaining a neat appearance while protecting cables at bends.

Key specifications

• Compatible with WDKHF cable duct system, duct dimensions 60 x 110 mm (H x W)
• Material: PC/ABS blend, halogen-free and PVC-free
• Colour: Pure White (RAL 9010)
• Mounting: Snap-on / clip-on, no tools required
• Angle: 90-degree flat angle for internal corners
• Temperature resistance: -5 to +60 °C
• Flame retardant, self-extinguishing
• Impact resistance (system): IK07
• Protection class (system): IP30
• RoHS compliant

Why choose it

This cover ensures a professional finish by seamlessly matching the duct profile and colour. The halogen-free and PVC-free construction supports safer installations, while the snap-on design speeds up assembly and reduces labour time. Its flame-retardant properties add an extra layer of safety in electrical installations.

Ideal use cases

• Routing cables around internal corners in offices, workshops, and industrial control panels
• Creating neat cable management on flat walls or ceilings where ducts change direction
• Retrofitting existing WDKHF duct runs to improve aesthetics and cable protection

Good to know

The cover is part of the OBO Bettermann WDKHF system, ensuring compatibility with other components. It is supplied untreated for a clean, consistent appearance. For best results, align the cover with the duct and press firmly until it clicks into place.
