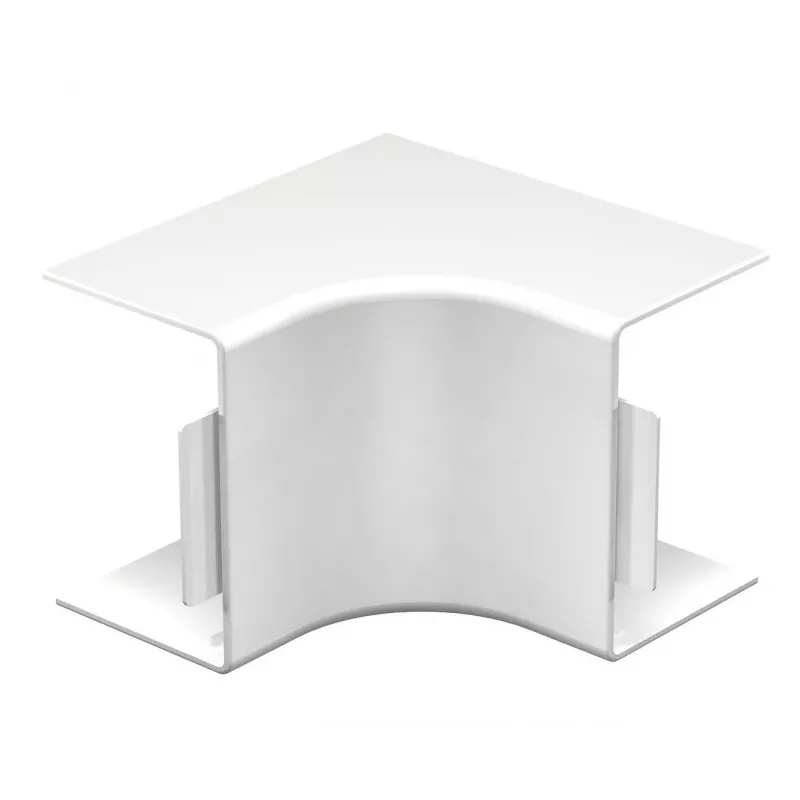

OBO BETTERMANN WDK binnenhoekafdekking halogeenvrij 60x90mm zuiverwit (6175598)

When cable duct routes meet at a 90-degree internal corner, the joint must be closed cleanly to keep the installation safe and visually tidy. The OBO BETTERMANN WDK Internal Corner Cover solves this by providing a halogen-free, clip-on cover that matches the WDK duct system perfectly.

Who is it for

Electricians and installers working with OBO BETTERMANN WDK cable ducts in indoor environments, especially where fire safety and low smoke emission are required.

Main features

• Designed for 90° internal corners of WDK ducts
• Compatible with duct dimensions 60 x 90 mm
• Halogen-free material (PC/ABS) for safety in case of fire
• Pure white (RAL 9010) finish for a clean look
• Clip-on/snap-on mounting for quick installation
• Self-extinguishing with low smoke emission

Specifications

• Fitting type: Internal corner cover
• Compatible duct system: OBO BETTERMANN WDK
• Compatible duct dimensions (H x W): 60 x 90 mm
• Material: PC/ABS (Polycarbonate/Acrylonitrile Butadiene Styrene)
• Halogen-free: Yes
• Colour: Pure White (RAL 9010)
• Mounting method: Clip-on / Snap-on
• Fire behaviour: Self-extinguishing, low smoke emission
• Lead-free: Yes
• RoHS compliance: Yes
• REACH compliance: Yes
• Temperature resistance: -25 to +60 °C
• Application: Indoor cable routing
• Surface finish: Smooth

Tips

Ensure the duct ends are cut cleanly and deburred before snapping on the cover for a secure fit. For outdoor or harsh environments, verify suitability with OBO BETTERMANN.
