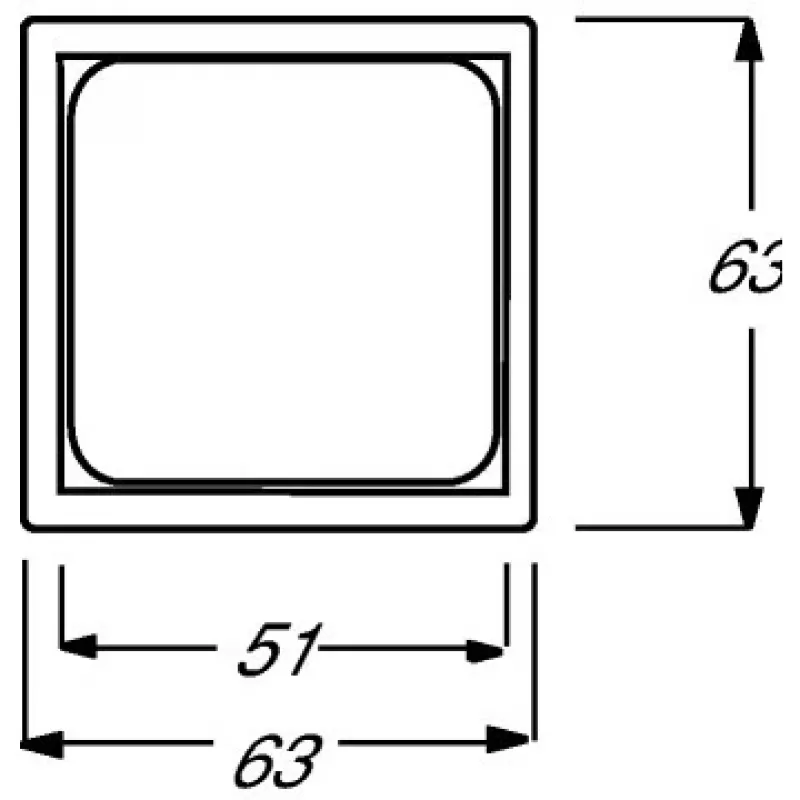

Opbouwframe schroefloos Busch-Jaeger 1746/10-84 wit, 63×63 mm, venster 51×51 mm

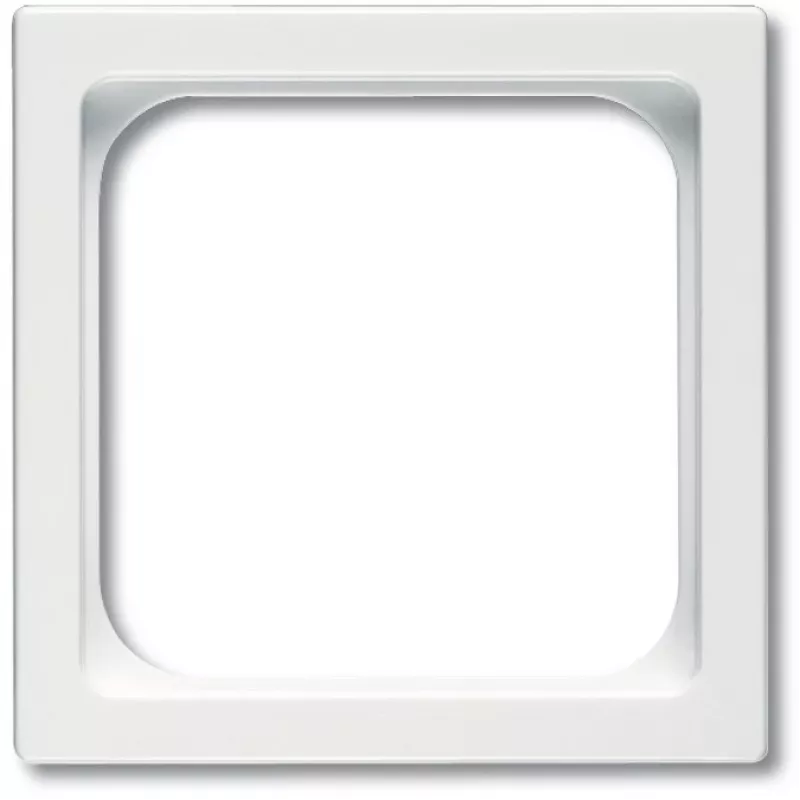

Busch-Jaeger 1746/10-84 is a screwless white wall plate cover sized 63×63 mm with a 51×51 mm window, intended for use with compatible Busch-Jaeger modules and telecommunication inserts using standard 50×50 mm cover plates. Supplied as a single piece, the cover plate creates a flush, neat finish for switches, sockets or communication modules in residential and commercial interiors.

Advantages

The screwless design conceals fixing points for a clean appearance. The 63×63 mm outer dimension with a 51×51 mm usable window fits common modular inserts and simplifies alignment during installation. Made to match Busch-Jaeger mounting standards, the cover plate is compatible with a range of module brands and reduces visible gaps around installed devices.

Suitable for

Key specifications

How to use

Remove the existing cover plate if present, align the Busch-Jaeger 1746/10-84 over the installed module or insert so the 51×51 mm window matches the module face. Snap or secure the plate according to the module manufacturer’s mounting method until it sits flush with the wall. Ensure cables and connectors remain accessible through the window before final seating.

Recommendations

Use this cover plate with modules that follow Busch-Jaeger mounting dimensions or with telecommunication inserts using 50×50 mm cover plates (for example AMP, Brand-Rex, Rutenbeck, BTR, Telegärtner) to ensure correct fit. Verify module compatibility and orientation before installation to avoid forcing the plate into place.
