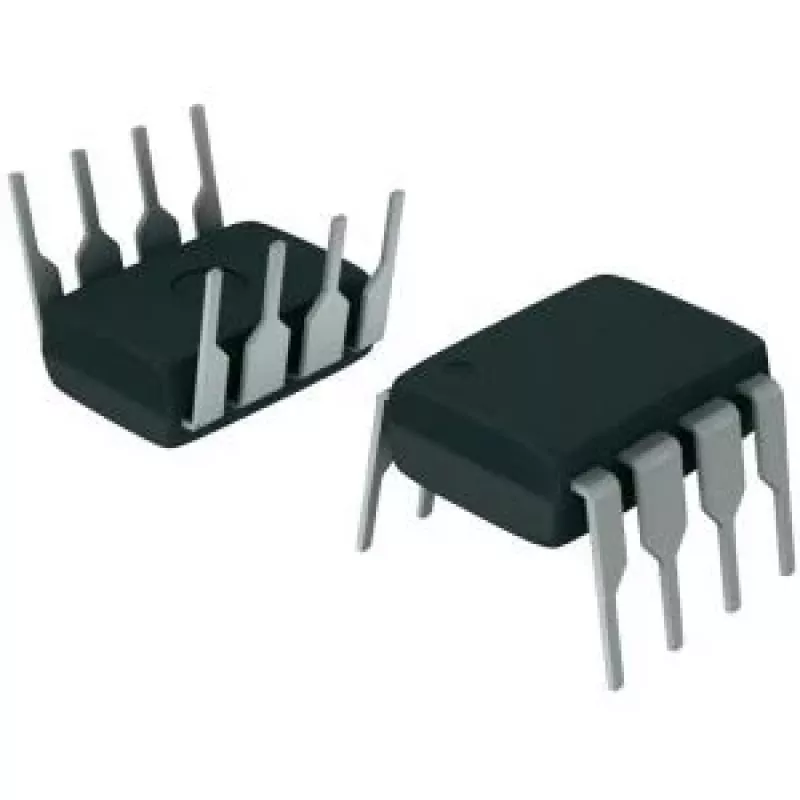

Operationele versterker Texas Instruments OPA2277PA, dubbele precisie-operationele versterker, PDIP-8

The Texas Instruments OPA2277PA is a dual precision operational amplifier in a PDIP-8 package designed for applications that require high DC accuracy and low noise. This dual op-amp provides low offset voltage, low drift, and a stable input stage suitable for precision signal conditioning, filtering and instrumentation circuits. The device is intended for use in analog front ends and sensor interfaces where signal integrity and minimal error over time and temperature are important.

Advantages

The OPA2277PA offers low input offset voltage and low offset drift, contributing to accurate low-frequency performance and long-term stability. Low noise and a well-matched dual channel configuration make it suitable for differential and single-ended signal paths. The PDIP-8 package facilitates through-hole prototyping and repair, while precision internal design reduces the need for external trimming in many measurement and filtering applications.

Suitable for

• Precision signal conditioning and low-frequency amplification
• Sensor interfaces and transducer signal processing
• Instrumentation and data acquisition front ends
• Active filtering and low-noise preamplifiers

Key specifications

• Dual operational amplifier in PDIP-8 package
• Precision low input offset voltage and low offset drift
• Low noise suitable for low-frequency signal paths
• Rail-to-rail output not specified (use within recommended supply range)
• Designed for single-supply or split-supply operation within manufacturer supply range

How to use

Install the OPA2277PA into a compatible PDIP-8 socket or solder it into a through-hole PCB footprint, observing correct pin orientation. Provide the recommended supply voltages and decouple the power rails with bypass capacitors close to the package to maintain stability and minimize noise. Configure the amplifier in the desired topology (inverting, non-inverting, differential, or active filter) following standard op-amp design practices; consult the device’s data sheet for recommended external component values and compensation methods for specific bandwidth and stability requirements.

Recommendations

For best precision performance, use proper PCB layout techniques: short input traces, solid ground plane, and local decoupling. Keep input source impedances balanced where possible and avoid large DC offsets at the inputs. Verify thermal conditions and follow the recommended supply range to maintain low drift and noise characteristics.
