Oplader Einhell CE-BC 6 M 12 V

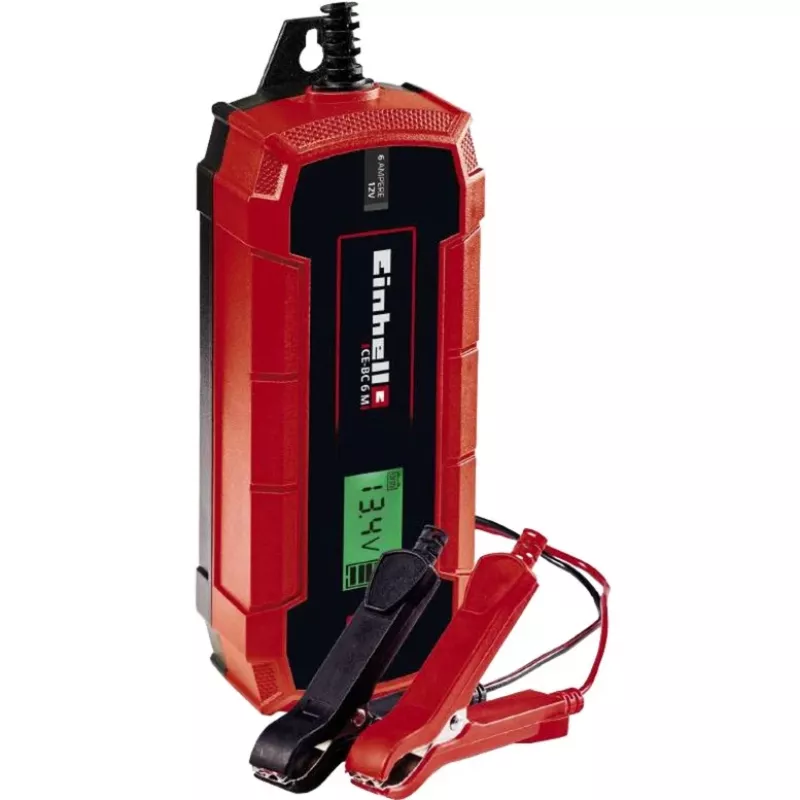

The Einhell CE-BC 6 M battery charger is an intelligent charger for 12 V vehicle batteries. Optimized for modern high-performance batteries, it uses a microprocessor controller to manage a multi-stage charging cycle, automatically adjusting to battery voltage and condition. The charger supports gel, AGM and low- or zero-maintenance lead-acid batteries and provides functions for trickle charging, reconditioning deeply discharged batteries, a winter charge mode for temperatures below 5 °C, and a supply mode to operate as a power source. Safety features include automatic protection against overcharging, short circuits and reversed polarity. An LCD indicates battery voltage, charge status and selected mode, while fully insulated clamps and a suspension eyelet on the housing enable safe connection and convenient wall mounting.

Advantages

The CE-BC 6 M delivers fast but low-stress charging to extend battery life while preserving full performance. Its microprocessor-controlled charging adapts to battery type and condition for optimal results, and the trickle charge function maintains batteries during long idle periods to prevent deep discharge. Additional modes—recondition, winter charge and supply—expand usability, and integrated protections guard the charger and battery against common faults. The compact, lightweight design and clear LCD make operation straightforward.

Suitable for

• 12 V car batteries (lead-acid, AGM, gel)
• Motorcycle and scooter batteries
• Seasonal vehicles and equipment that remain idle for long periods
• Situations requiring battery reconditioning or a temporary power supply

Key specifications

• Brand: EINHELL
• Model: CE-BC 6 M (MPN 1002235)
• EAN: 4006825640328
• Input voltage: 220–240 V AC, 50 Hz
• Battery voltage: 12 V
• Supported battery types: Gel, AGM, low- and zero-maintenance lead-acid
• Functions: Multi-stage microprocessor charging, trickle charge, recondition mode, winter charge mode, supply mode
• Protections: Overcharge, short-circuit, reversed polarity
• Indicators: LCD for voltage, charge status and mode
• Weight: 597 g
• Package dimensions (W×D): 77 × 153 mm

How to use

Connect the charger to a 220–240 V AC outlet before attaching the fully insulated clamps to the battery poles (observe correct polarity). The CE-BC 6 M automatically detects the battery voltage and condition and selects the appropriate charging program; use the display to verify the selected mode. For maintenance during long storage, select the trickle charge function; use the recondition mode only for deeply discharged batteries and follow the display prompts. The winter charge mode should be used when ambient temperatures fall below 5 °C. If required, switch to supply mode to use the charger as a temporary power source. After charging is complete or when disconnecting, first unplug the charger, then remove the clamps from the battery poles.

Recommendations

Always check the battery manufacturer’s specifications before charging, avoid connecting clamps to corroded terminals, and store the charger in a dry place. Do not expose the device to temperatures outside the specified winter mode threshold when performing normal charging.
