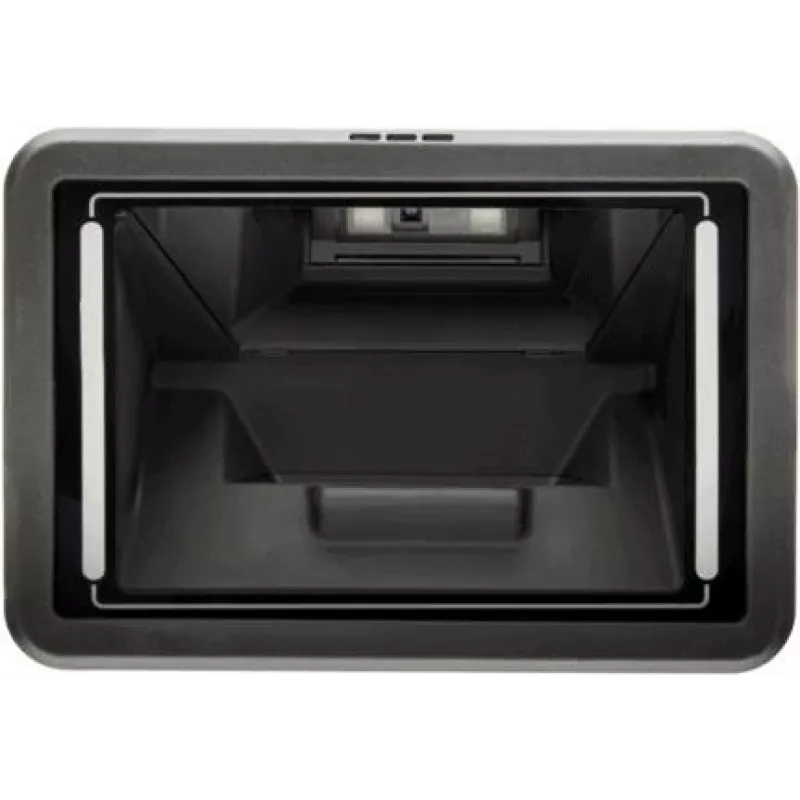

Opticon M-11 vast gemonteerde 1D/2D CMOS barcodescanner, zwart

In busy retail checkouts, warehouse sorting lines, and kiosk applications, a slow or unreliable barcode reader creates bottlenecks and frustrates both staff and customers. The Opticon M-11 fixed mount scanner eliminates those delays by delivering fast, accurate decoding of virtually any 1D or 2D barcode—from traditional UPC codes to dense QR and Data Matrix symbols—in a compact, rugged housing that can be mounted exactly where it’s needed.

Who is it for

This scanner is built for system integrators, kiosk manufacturers, and retail or logistics operations that require a dependable, hands-free scanning solution. It suits self-service checkouts, access control points, production line tracking, and any environment where items are presented to a fixed scanner rather than a handheld device.

Main features

• High-resolution 1280 x 800 pixel CMOS imager for crisp image capture and reliable decoding of damaged or poorly printed codes.
• Comprehensive symbology support: reads all common 1D codes (UPC/EAN, Code 39, Code 128, GS1 DataBar, Codabar, Interleaved 2 of 5) and 2D codes (QR Code, Data Matrix, PDF417, Aztec Code, MaxiCode, Micro QR Code, Composite Codes).
• Flexible connectivity via USB (HID/VCP) or RS-232, making integration with existing POS or industrial systems straightforward.
• Durable IP54-rated housing protects against dust and water splashes, while the scanner withstands drops from 1.5 m onto concrete.
• Wide operating temperature range from -20°C to 50°C allows use in cold storage or hot manufacturing areas.
• Compact and lightweight design with ABS plastic housing, available in black to blend into any setup.

Specifications

• Scanner type: Fixed mount 1D/2D imager
• Image sensor: CMOS, 1280 x 800 pixels
• Light source: Aiming 610 nm LED, Illumination 660 nm LED
• Scan angle: Horizontal 40°, Vertical 26°
• Minimum print contrast: 25%
• Interfaces: USB (HID/VCP), RS-232
• Input voltage: 5V DC
• Current consumption: Max 150 mA (operating), 30 mA (standby)
• Operating temperature: -20°C to 50°C
• IP rating: IP54
• Drop resistance: 1.5 m onto concrete
• Housing material: ABS plastic
• Colour: Black

Tips

For best performance, mount the M-11 at a slight angle to avoid direct reflections from glossy barcode surfaces. Use the RS-232 interface in legacy systems or where longer cable runs are required, and take advantage of the USB HID mode for plug-and-play operation with modern POS software. Regularly clean the scanner window with a soft, lint-free cloth to maintain optimal reading accuracy.
