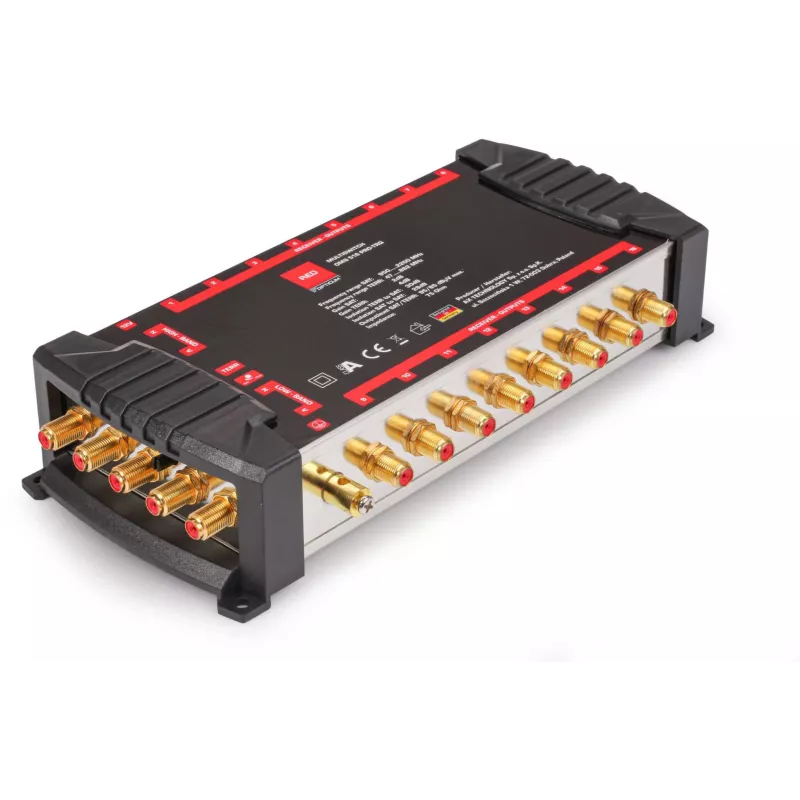

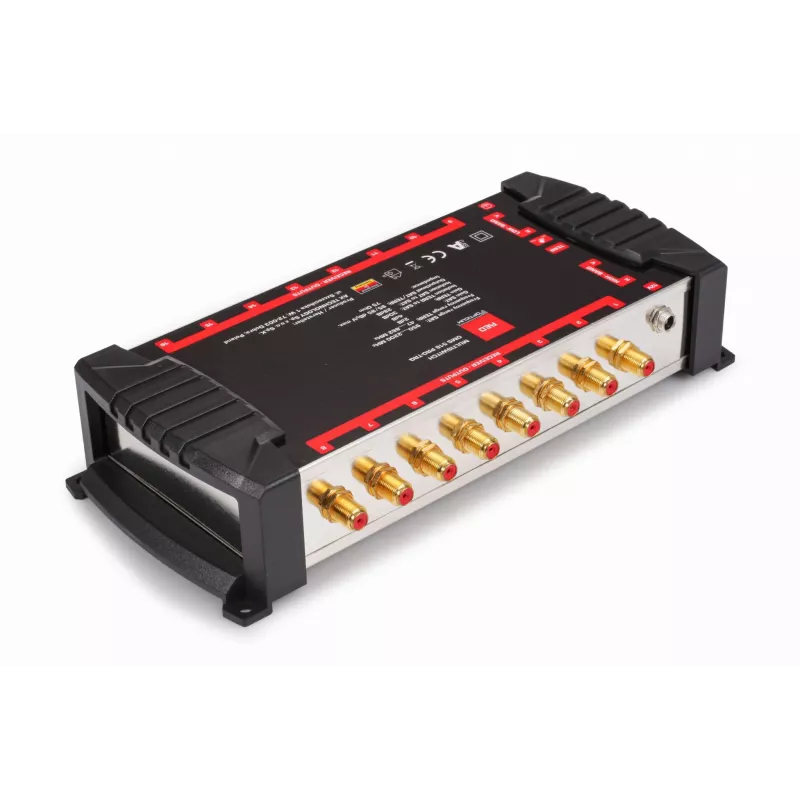

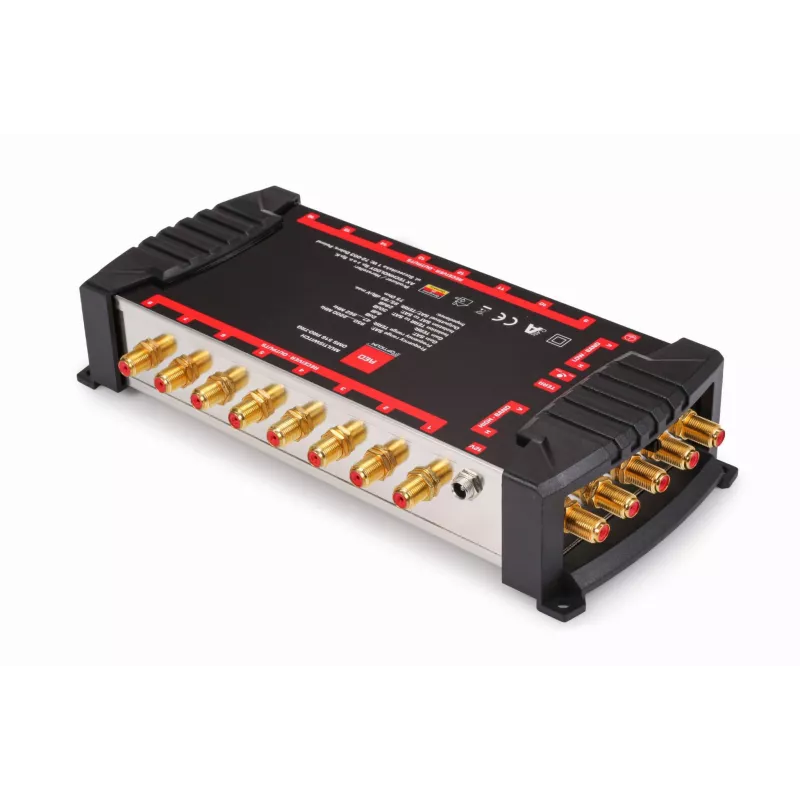

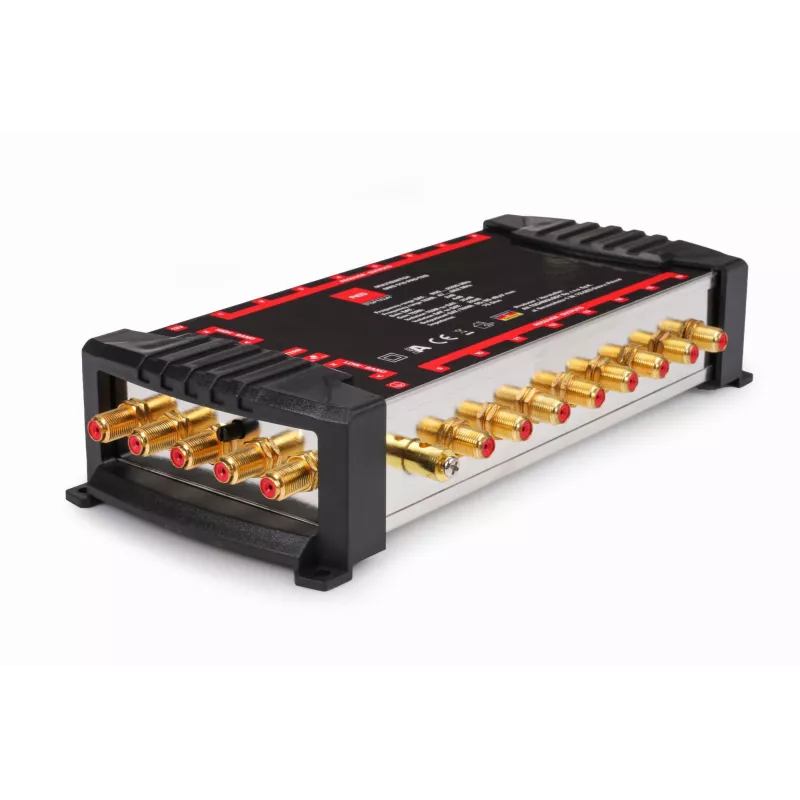

OPTICUM OMS 5/16 PRO-TRQ Multiswitch (Platinum Line) 16 uitgangen

The OPTICUM OMS 5/16 PRO-TRQ Multiswitch from the Platinum Line is a high-performance distribution solution for satellite and terrestrial TV signals. Designed for professional installations, it combines 4 satellite inputs and 1 terrestrial input to feed up to 16 subscribers, making it ideal for multi-dwelling units, hotels, and commercial buildings.

Advantages

Supports DiSEqC 2.0 switching commands and provides excellent isolation between inputs (>30 dB) to prevent interference. The passive terrestrial path ensures reliable reception of DVB-T/T2 signals without additional amplification. External power supply included for easy setup.

Suitable for

• Satellite TV distribution systems with Quattro LNB
• Terrestrial TV signal integration
• Small to medium-sized residential or commercial buildings

Key specifications

• Number of SAT Inputs: 4
• Number of TER Inputs: 1
• Number of Subscriber Outputs: 16
• SAT Input Frequency Range: 950 - 2150 MHz
• TER Input Frequency Range: 47 - 862 MHz
• SAT Output Frequency Range: 950 - 2150 MHz
• TER Output Frequency Range: 47 - 862 MHz
• SAT Gain (Trunk): 0 dB (typical)
• TER Gain (Trunk): -20 dB (passive, typical)
• SAT Output Level (Max): 90 dBµV
• TER Output Level (Max): 85 dBµV
• Isolation SAT-SAT: >30 dB
• Isolation SAT-TER: >30 dB
• Switching Commands: 13/18V, 0/22kHz, DiSEqC 2.0
• LNB Power Supply: 18V / 13V (selectable by receiver)

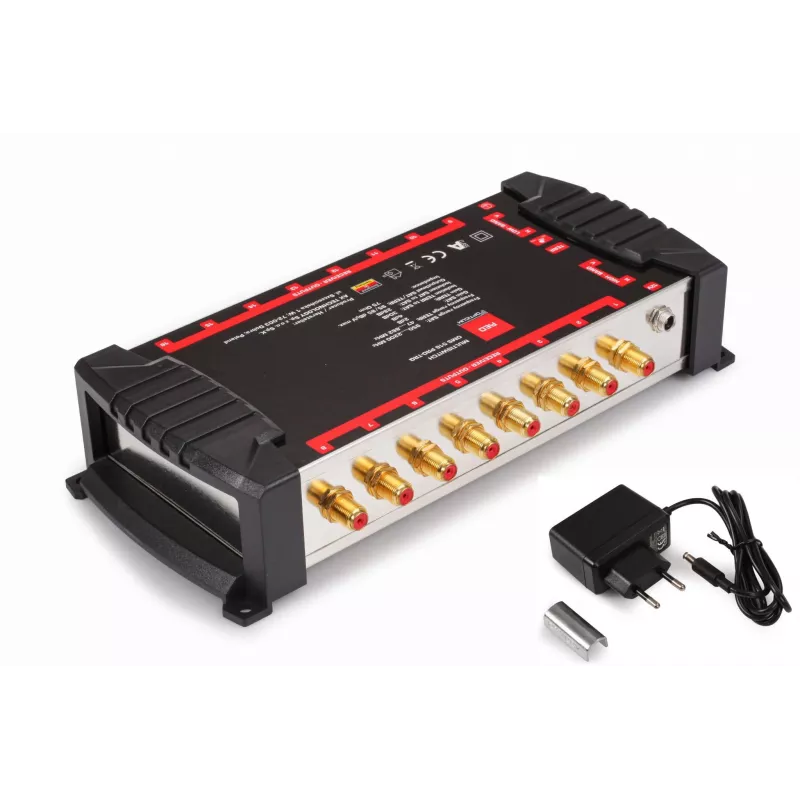

• Power Supply: External AC Adapter (included)
• Power Consumption (Multiswitch only): < 5W
• LNB Type Compatibility: Quattro LNB
• Terrestrial Path: Passive
• Housing Material: Metal

Recommendations

For optimal performance, use with a Quattro LNB and ensure proper grounding. The multiswitch is designed for indoor installation only.
