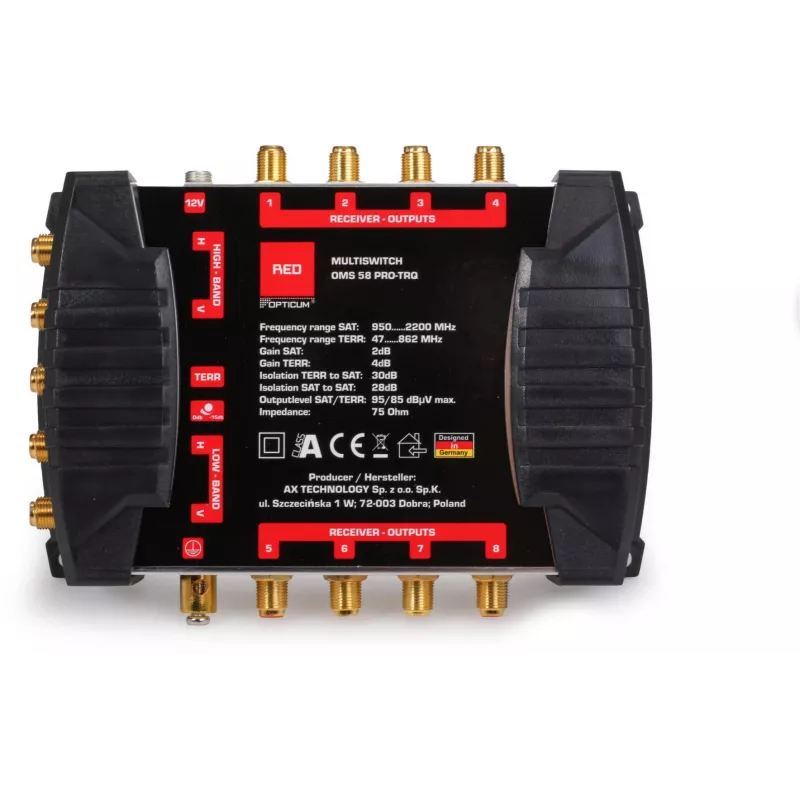

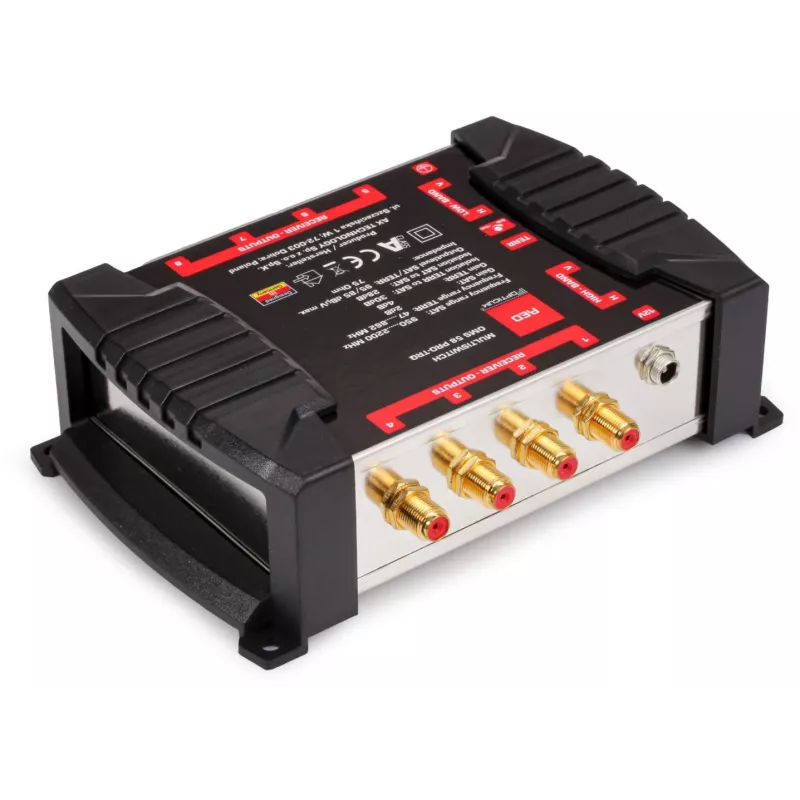

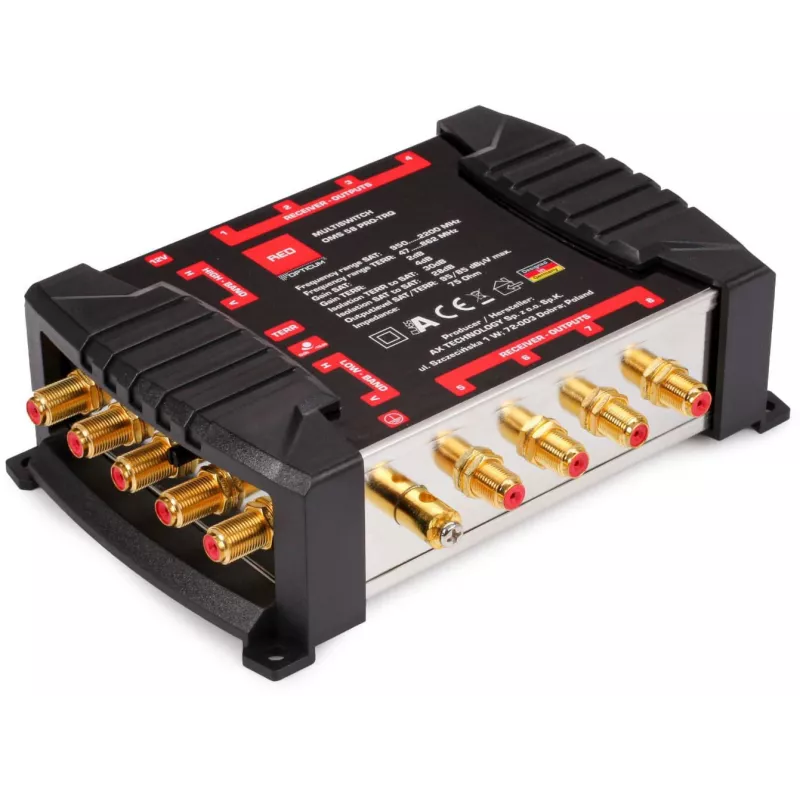

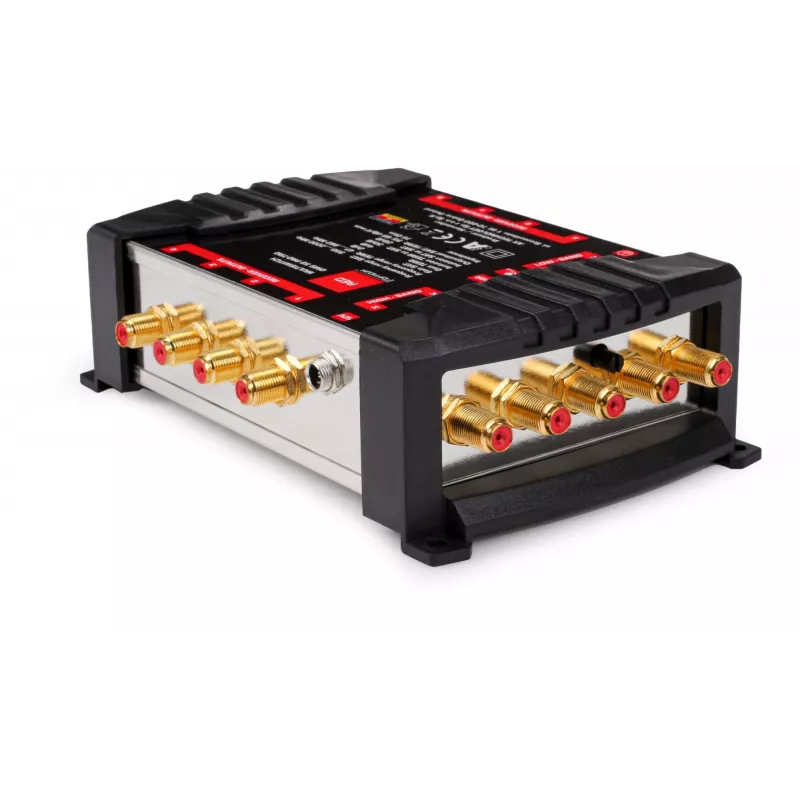

Opticum OMS 5/8 PRO-TRQ multiswitch 5 in 8 out (Platinium Line)

Satellite installers and MDU technicians rely on the Opticum OMS 5/8 PRO-TRQ to distribute signals from a Quattro LNB and a terrestrial antenna to up to eight subscriber outlets. This multiswitch combines four satellite polarities with terrestrial TV in a single die-cast metal housing, making it a robust choice for apartment blocks and small hotels.

Key specifications

• 5 inputs: 4x SAT (950–2150 MHz) + 1x terrestrial (47–862 MHz)
• 8 subscriber outputs with F-type connectors
• Switching commands: 13/18 V, 0/22 kHz, DiSEqC 2.0
• SAT output gain 0 dB, terrestrial output gain -20 dB
• Max output level: 95 dBµV (SAT), 85 dBµV (TER)
• Isolation: SAT-SAT >30 dB, SAT-TER >30 dB, output-output >25 dB
• LNB power: 13/18 V DC, max 500 mA per line

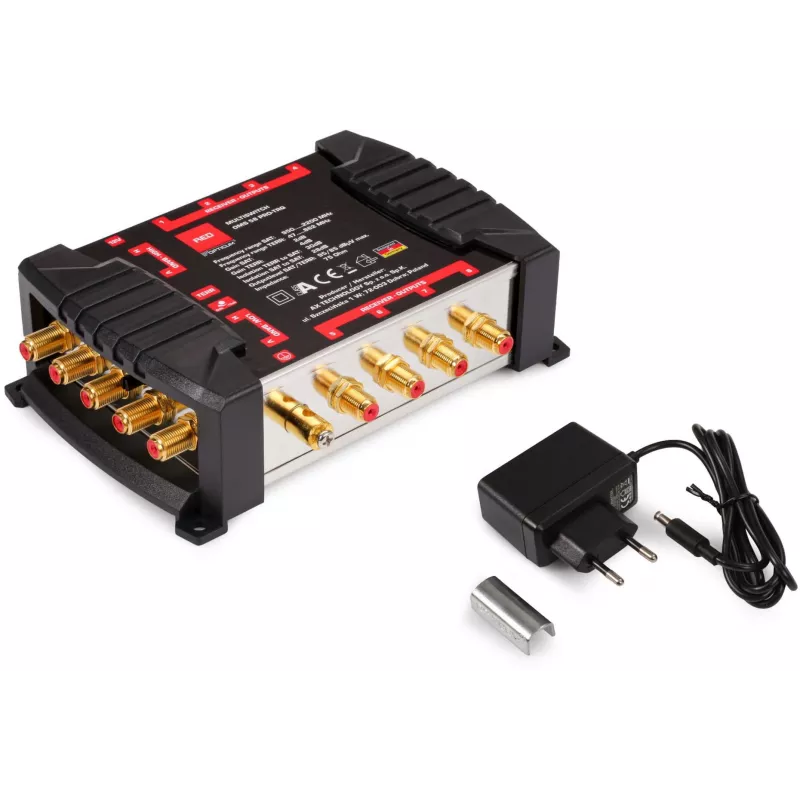

• Built-in AC power supply: 230 V / 50 Hz, consumption 5 W
• Operating temperature: -20°C to +50°C

Why choose it

The PRO-TRQ belongs to the Platinium Line, offering high isolation and stable gain for reliable multi-dwelling distribution. Its die-cast housing ensures durability, while the integrated power supply simplifies installation—no external PSU needed.

Ideal use cases

• Distributing satellite and terrestrial signals in apartment buildings
• Small hotel or office TV systems with up to 8 rooms
• Upgrading existing multiswitch installations to DiSEqC 2.0

Good to know

This multiswitch requires a Quattro LNB (not Quad) for full functionality. Terrestrial signals are attenuated by 20 dB to compensate for cable losses. Always use quality F-connectors and ensure proper grounding for outdoor installations.
