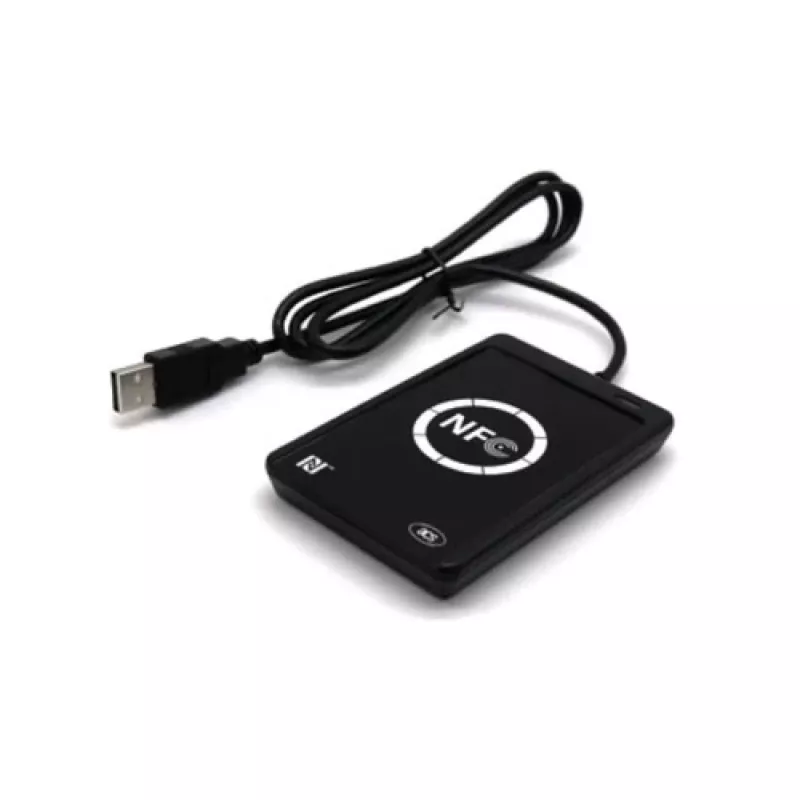

ORIGIN STORAGE USB contactloze smartcardlezer 13,56 MHz

The ORIGIN STORAGE USB Contactless Smartcard Reader is a high-performance RFID reader operating at 13.56 MHz. It supports multiple contactless standards including ISO 14443 A/B, ISO 15693, FeliCa, MIFARE, and NFC Forum Tag Types 1/2/3/4. With a USB 2.0 interface and CCID compliance, it offers plug-and-play compatibility across Windows, macOS, Linux, and Android. The integrated 1.2 m cable and compact ABS plastic housing make it ideal for access control, payment terminals, and identity verification.

Advantages

This reader delivers reliable contactless reading with LED indicators and an audible buzzer for successful transactions. Its bus-powered USB connection eliminates the need for external power supplies, simplifying installation. The CCID driver support ensures broad OS compatibility without additional software.

Suitable for

• Access control systems
• Contactless payment terminals
• Identity verification and authentication
• NFC-enabled applications
• Public transport ticketing

Key specifications

• Product Type: Contactless Smartcard Reader / RFID Reader
• Interface: USB 2.0
• Operating Frequency: 13.56 MHz
• Supported Standards: ISO 14443 A/B, ISO 15693, FeliCa, MIFARE, NFC Forum Tag Types 1/2/3/4
• Host Connector: USB Type-A
• Power Source: USB Bus-Powered
• LED Indicators: Power, Status (Read/Write)
• Buzzer: Yes
• Operating System Compatibility: Windows, macOS, Linux, Android
• Driver Support: CCID compliant
• Cable Length: 1.2 m (integrated)
• Housing Material: ABS Plastic
• Color: Black
• Certifications: CE, FCC, RoHS, REACH
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Operating Humidity: 10% to 90% RH (non-condensing)

Recommendations

For optimal performance, use with CCID-compatible operating systems. Ensure the reader is placed within range of contactless cards or NFC devices. No additional drivers required for most modern OS.
