ORNO eengezinswoning audio-deurintercomset, 2-draads, SAGITTA (OR-DOM-SG-918)

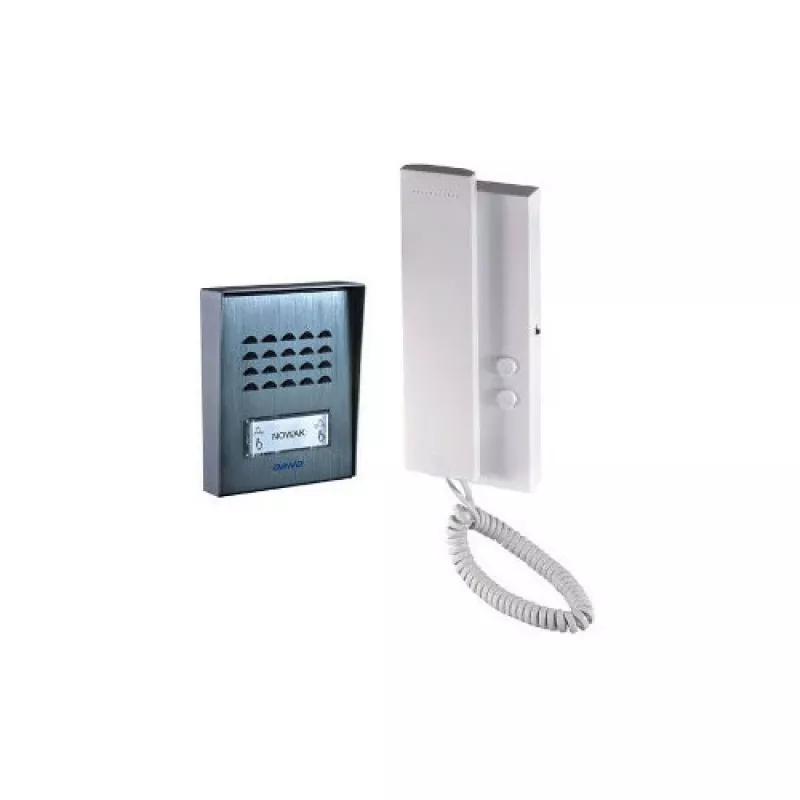

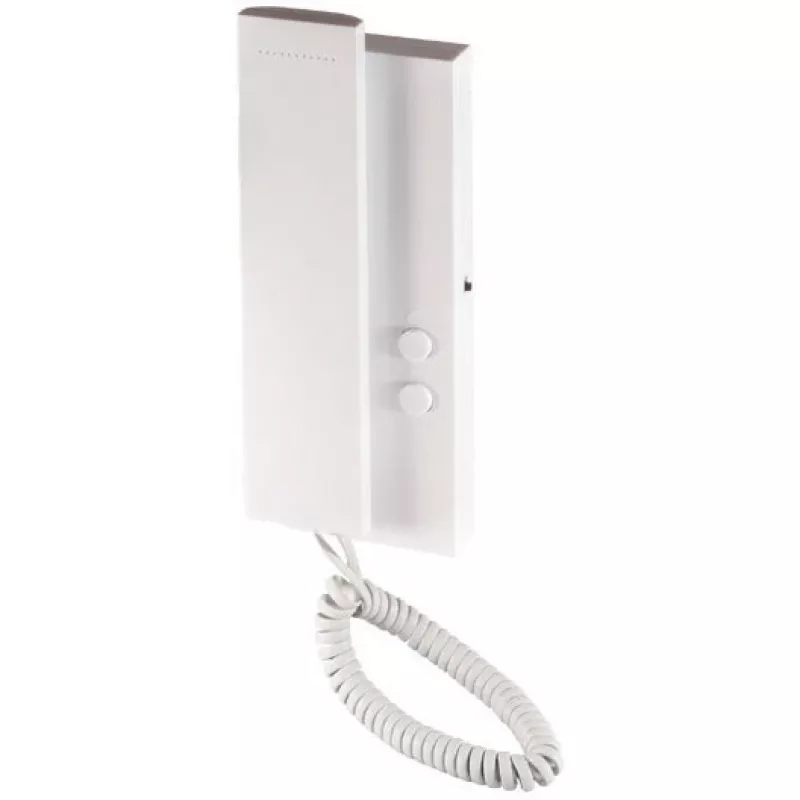

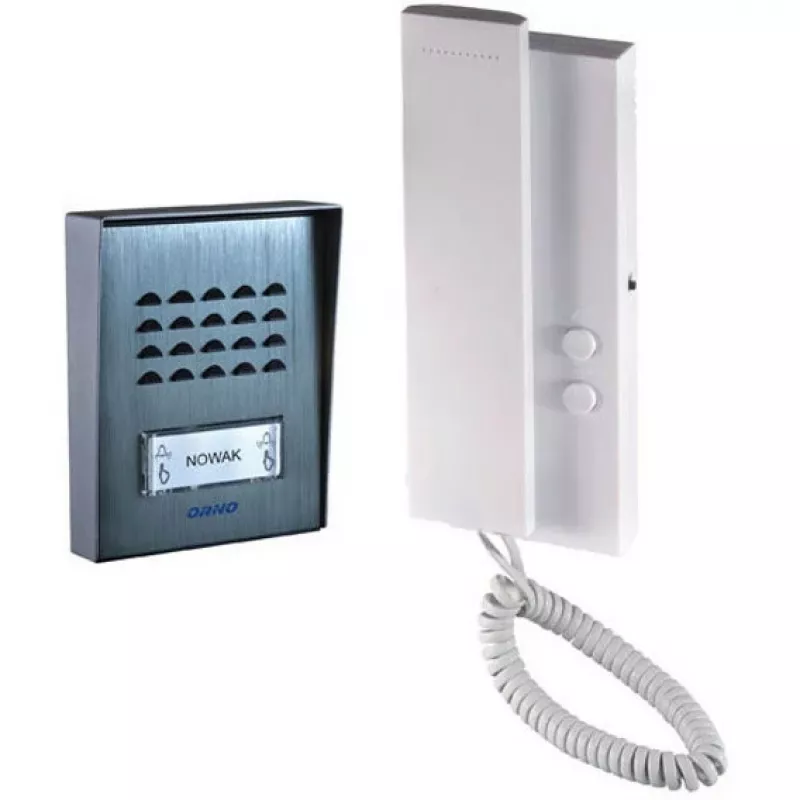

The ORNO Single-Family Audio Intercom Set SAGITTA (OR-DOM-SG-918) is a reliable and easy-to-install 2-wire intercom system designed for single-family homes. It includes an outdoor panel with a backlit nameplate and call button, and an indoor unit with volume adjustment and door release. The set operates on 12V DC via the included power adapter and supports cable runs up to 100m with 0.5mm² cable.

Advantages

Simple 2-wire connection reduces installation complexity. The outdoor panel is weather-resistant (IP44) and made of durable aluminum alloy and plastic. The indoor unit features a sleek white design with intuitive controls.

Suitable for

• Single-family homes requiring a basic audio intercom
• Surface mount installations on walls or gates
• Replacement or upgrade of existing 2-wire systems

Key specifications

• Intercom Type: Audio Intercom System
• Number of Families: Single-family
• Wiring System: 2-wire
• Power Supply: 12V DC (adapter included)
• Outdoor Panel: Surface mount, aluminum alloy/plastic, IP44, 110x140x35 mm
• Indoor Unit: Surface mount, white, 90x210x40 mm
• Max Cable Length: 100m (0.5mm² cable)
• Operating Temperature: Outdoor -20°C to +50°C, Indoor 0°C to +45°C
• Door Release Output: Relay output

Recommendations

For best performance, use a twisted-pair cable of at least 0.5mm². Ensure the outdoor panel is mounted in a sheltered location to prolong its lifespan.
