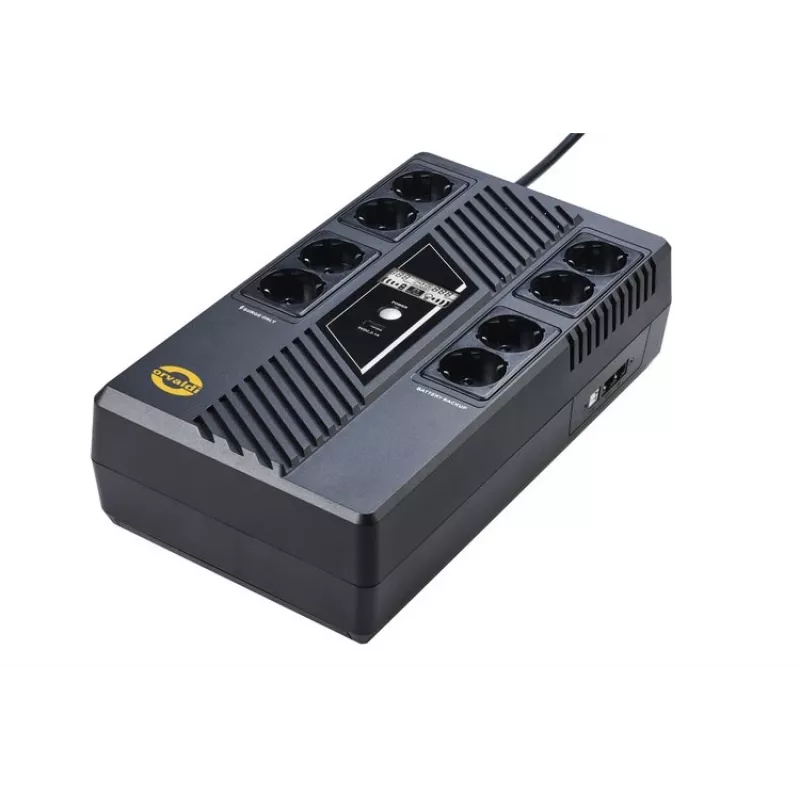

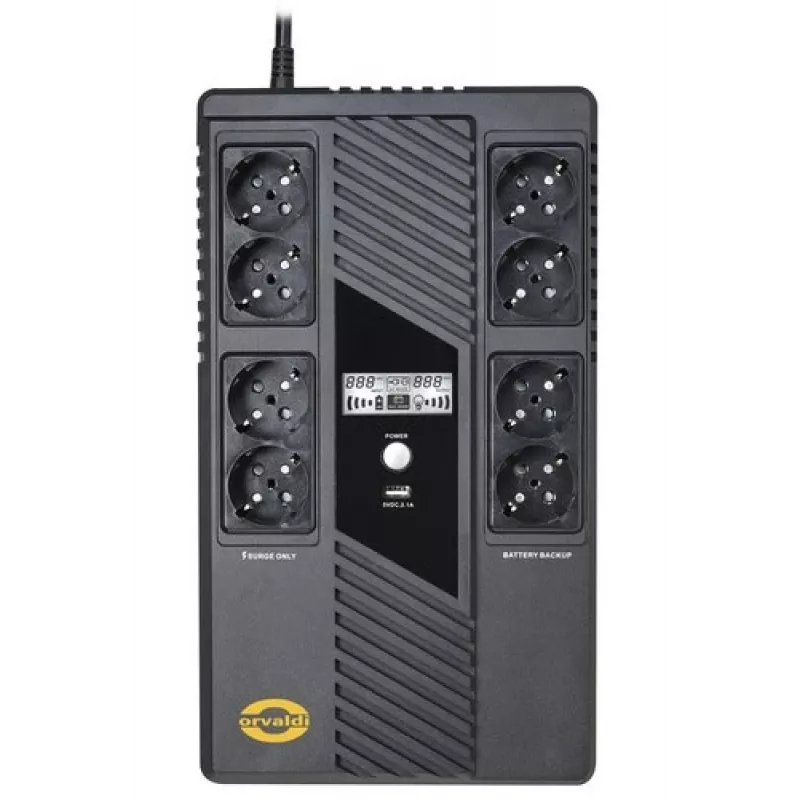

ORVALDI USV AM-1000LCD USB line-interactive 1000VA 600W 8x Schuko-stopcontacten LCD-display

The ORVALDI UPS AM-1000LCD is a line-interactive uninterruptible power supply designed to protect your critical equipment from power outages, surges, and fluctuations. With 1000VA / 600W capacity, it provides reliable battery backup for computers, networking devices, and home electronics. The LCD display shows real-time status, and the USB and RJ45 ports enable communication and surge protection for data lines.

Advantages

Line-interactive topology with Automatic Voltage Regulation (AVR) ensures stable output voltage without switching to battery for minor fluctuations, extending battery life. The LCD screen provides clear information on input voltage, battery level, and load. Four battery backup outlets keep essential devices running during outages, while four surge-only outlets protect less critical equipment.

Suitable for

• Home offices and small businesses
• Desktop computers, monitors, and peripherals
• Network equipment (routers, switches, modems)
• Gaming consoles and entertainment systems
• Security systems and DVRs

Key specifications

• UPS Type: Line-Interactive
• Capacity: 1000 VA / 600 W
• Output Waveform: Simulated Sine Wave
• Input Voltage: 230V AC
• Output Voltage: 230V AC
• Output Frequency: 50/60 Hz (Auto-sensing)
• Number of Output Outlets: 8 (4 battery backup + 4 surge protection)
• Outlet Type: Schuko (Type F)
• Communication Ports: USB Type-B, RJ45 (In/Out)
• Display: LCD
• Battery Type: Sealed Lead Acid (12V/9Ah x1)
• Typical Runtime: 3 min at full load, 10 min at half load
• Recharge Time: 4-6 hours to 90%
• Surge Protection: Yes (power and phone/network line)
• Audible Alarms: On Battery, Low Battery, Overload, Fault

Recommendations

For optimal performance, connect only critical devices to battery backup outlets. Ensure the UPS is plugged into a grounded wall outlet. Do not overload the UPS; total connected load should not exceed 600W. Periodically test the UPS and replace the battery every 3-5 years.
