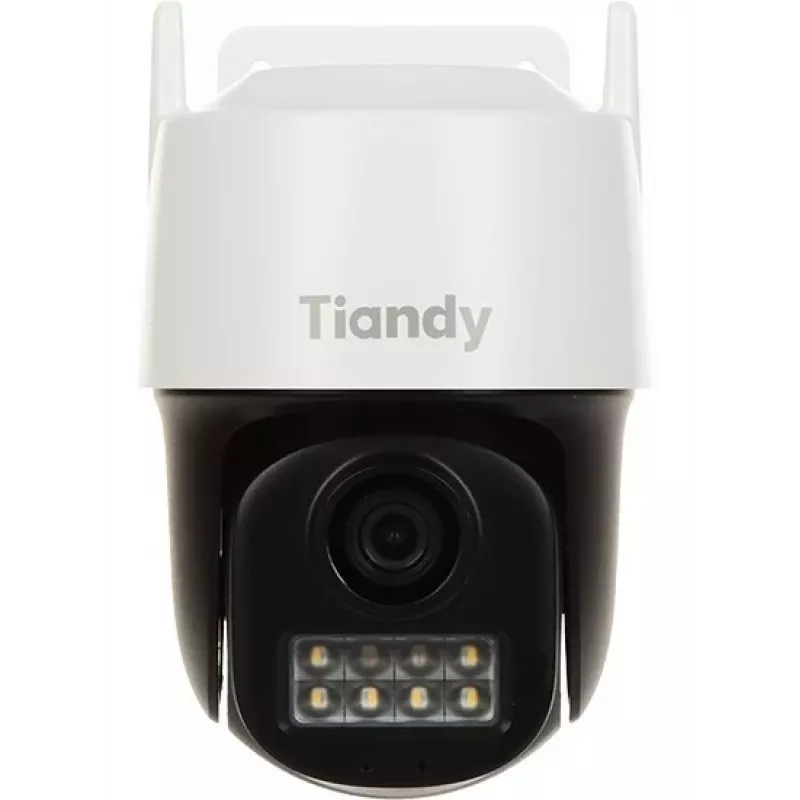

OUTDOOR EDGE outdoor PTZ IP-camera TC-H333N 4 mm

The OUTDOOR EDGE TC-H333N stands out with its 20x optical zoom and 360° endless pan, delivering detailed surveillance over large areas. Equipped with a 1/2.8" progressive scan CMOS sensor, it captures 3MP resolution at 2048x1536, ensuring clear images even in challenging lighting conditions. With a minimum illumination of 0.002 lux in colour mode and IR illumination up to 150m, it maintains visibility in near-total darkness. The camera's IP66-rated housing withstands harsh weather, while PoE+ or AC24V power options simplify installation.

Highlights

• 20x optical zoom (4.7–94mm, F1.6–F3.5) for close-up detail at distance
• 360° endless pan and -15° to 90° tilt with auto flip for comprehensive coverage
• Super WDR (120dB) and 3D DNR for balanced exposure and noise reduction
• H.265/H.264/MJPEG compression to optimise bandwidth and storage
• Smart features: tripwire, intrusion, cross counting, object left/lost
• MicroSD slot supports up to 256GB for local recording

In daily use

Install the TC-H333N on a wall or ceiling in an outdoor location. Connect it to your network via the RJ45 Ethernet port and power it using PoE+ (802.3at) or AC24V. Configure motion detection or smart events to trigger recording or alerts. The camera's audio input/output and alarm interfaces allow integration with external microphones, speakers, or sensors. Its operating temperature range of -40°C to 65°C ensures reliable performance in extreme climates.

Full specifications

• Sensor: 1/2.8" Progressive Scan CMOS
• Max resolution: 3MP (2048x1536)
• Optical zoom: 20x, focal length 4.7–94mm, aperture F1.6–F3.5
• Pan/tilt: 360° endless pan, -15° to 90° tilt (auto flip)
• IR distance: up to 150m
• Min illumination: 0.002 lux (colour), 0 lux with IR
• WDR: 120dB Super WDR
• Noise reduction: 3D DNR
• Video compression: H.265, H.264, MJPEG
• Weather resistance: IP66
• Power: PoE+ (802.3at) or AC24V
• Audio: 1 input / 1 output
• Alarm: 2 inputs / 1 output
• Local storage: MicroSD card slot (up to 256GB)
• Network: 1x RJ45 10M/100M Ethernet
• Smart features: tripwire, intrusion, cross counting, object left/lost
• Operating temperature: -40°C to 65°C

Final note

The TC-H333N combines long-range zoom, robust build, and intelligent analytics for demanding outdoor surveillance.
