OXT mini rolluikcontroller ZigBee Tuya

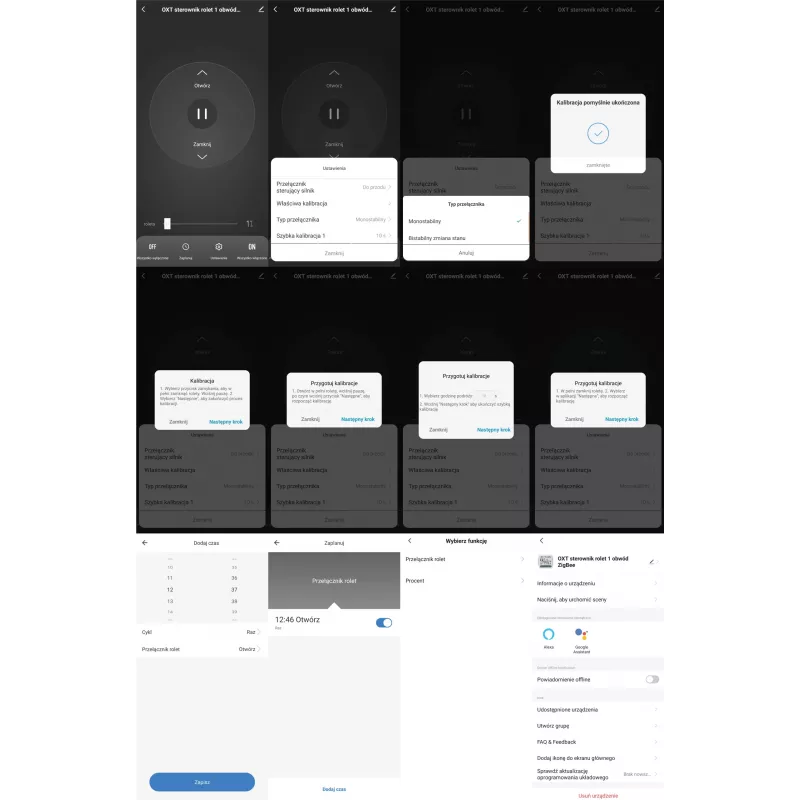

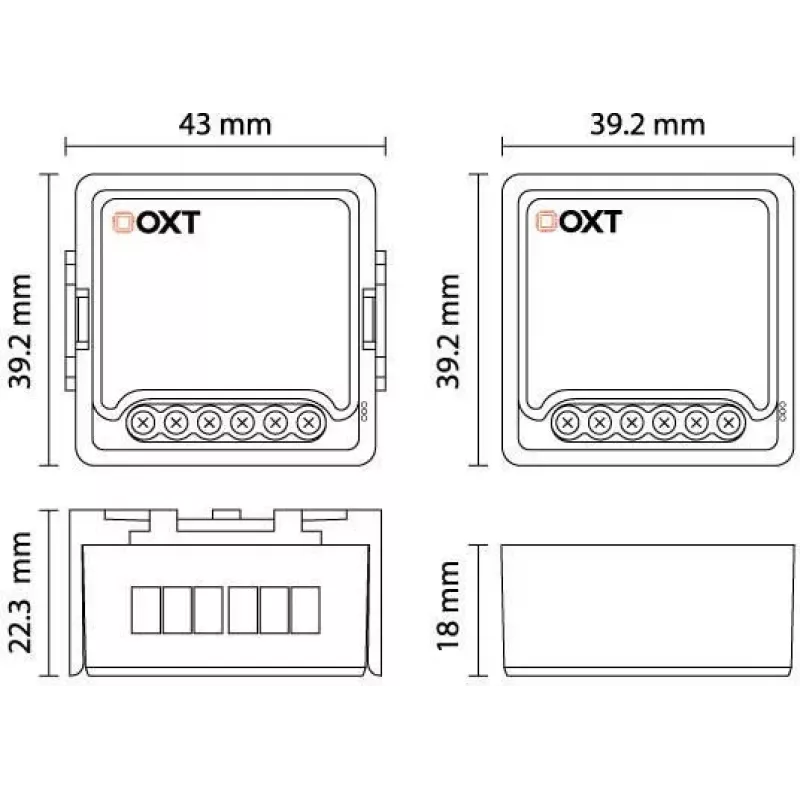

The OXT Mini Roller Shutter Controller is a compact ZigBee 3.0 smart switch designed to automate and control AC motors for roller shutters, blinds, and awnings. Compatible with the Tuya Smart / Smart Life ecosystem, it enables remote control via smartphone app, voice assistants (Amazon Alexa, Google Assistant), and manual wall switches. The module fits behind standard in-wall switch boxes, making it ideal for retrofitting existing installations without visible changes.

Advantages

Seamless integration with Tuya-based smart home systems; supports percentage control, schedules, and scenes. Compact design fits in standard junction boxes. Low standby power consumption (<0.5W). Fire-retardant PC V0 housing ensures safety. Easy installation with clear wiring instructions.

Suitable for

• Residential and commercial roller shutter automation
• Smart home retrofitting projects
• Integration with ZigBee 3.0 gateways and Tuya Smart Life app

Key specifications

• Wireless Protocol: ZigBee 3.0
• Input Voltage: AC 100-240V, 50/60Hz
• Max Load Current: 3A
• Max Load Power: 600W (Resistive)
• Motor Type: AC Motors
• Control: App, Voice, Manual Switch
• Operating Temperature: -10°C to 40°C
• Housing Material: PC V0 Fire-retardant
• Certifications: CE, RoHS
• Standby Power: <0.5W
• Wireless Frequency: 2.4 GHz
• Channels: 1

Recommendations

Requires a ZigBee 3.0 gateway/hub (e.g., Tuya ZigBee Hub) for full functionality. Ensure compatibility with your existing roller shutter motor (AC type). Professional installation recommended for electrical safety.
