OXT T250G ZigBee garagedeursensormodule met magneetcontact voor TUYA Smart Life

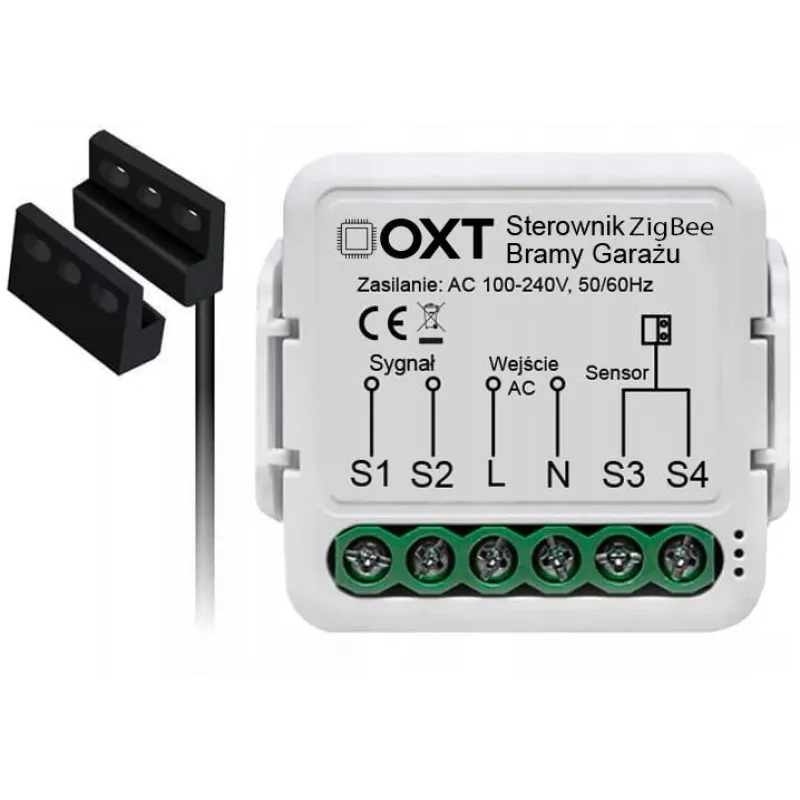

The OXT T250G is a smart garage door sensor module that integrates a ZigBee 3.0 wireless controller and a wired magnetic contact sensor. Designed for use with TUYA Smart and Smart Life platforms, it enables remote monitoring and control of your garage door via smartphone. The module connects to your existing garage door opener's push button terminals and provides dry contact relay pulses to open or close the door. The included magnetic sensor (5m cable) reports door status (open/closed) in real time. Compatible with Amazon Alexa and Google Assistant for voice control. Requires a ZigBee gateway (TUYA compatible).

Advantages

Easy retrofit installation without modifying existing wiring. Reliable ZigBee 3.0 mesh network ensures stable communication. Real-time door status alerts and history log. Voice control integration with popular smart assistants. Compact ABS plastic housing.

Suitable for

• Smart home automation systems using TUYA Smart or Smart Life
• Garage door remote control and status monitoring
• Integration with voice assistants (Alexa, Google Assistant)

Key specifications

• Connectivity: ZigBee 3.0 (IEEE 802.15.4)
• Smart Platform: TUYA Smart / Smart Life
• Power Supply: 5V DC via Micro USB (adapter included, AC 100-240V input)
• Output: Dry contact relay, momentary pulse (max 3A @ 250V AC / 30V DC)
• Sensor: Wired magnetic contact, cable length 5m
• Operating Temperature: -10°C to +50°C
• Operating Humidity: 10% to 90% RH (non-condensing)
• Material: ABS Plastic
• Security: AES-128 Encryption
• Required Hub: ZigBee Gateway (TUYA compatible)

Recommendations

Ensure your ZigBee gateway is within range and paired with the TUYA Smart app. For best performance, place the sensor on the door frame and magnet on the door. The module is intended for indoor use only.
