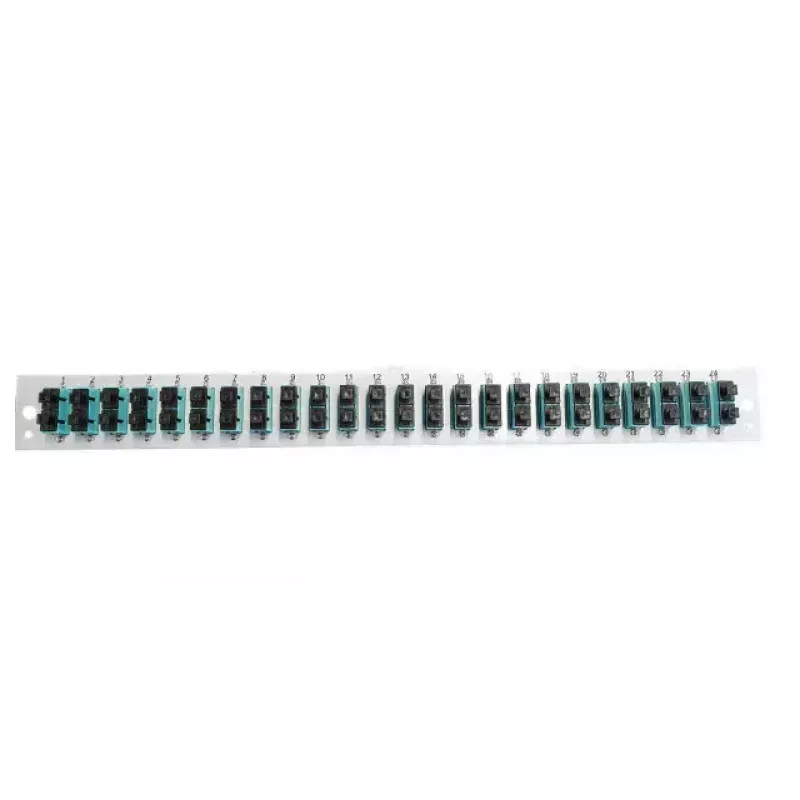

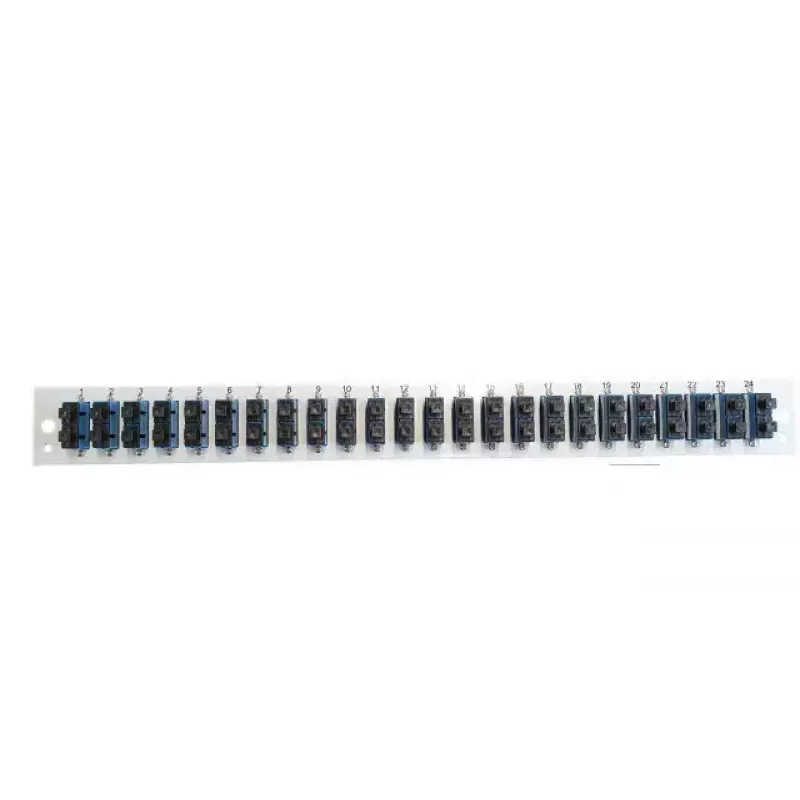

Patchpaneel-accessoire EFB Elektronik SB-FP-24SC-D-V-OS2 — 1U rackmontage, 432×13×43,5 mm, grijs

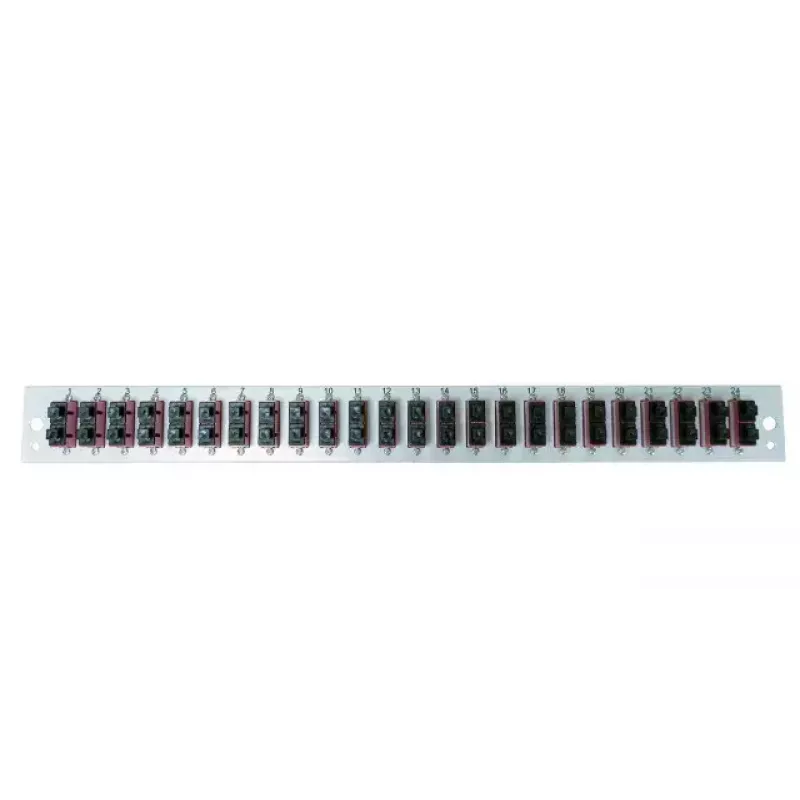

Front panel designed for 19" splice boxes with 24 SC duplex adapter positions, compatible with fiber categories OM3, OM4 and OS2. The EFB Elektronik SB-FP-24SC-D-V-OS2 is a 1U rack-mount accessory with a grey finish and compact depth, intended to organise and protect fibre connections in server racks and communication cabinets.

Advantages

The panel provides a standard 19" rack mounting and occupies 1U of rack space, allowing neat front-facing termination of up to 24 SC duplex connectors. Its shallow depth (13 mm) minimises space usage while the metal construction offers mechanical protection for splice and adapter interfaces. Colour and dimensions match common rack components for straightforward integration.

Suitable for

• Organising and protecting fibre patching in telecom and data centre racks
• Mounting on 19" splice boxes requiring SC duplex adapters
• Environments using OM3, OM4 multimode or OS2 singlemode fibre

Key specifications

• Manufacturer: EFB Elektronik
• Model / MPN: SB-FP-24SC-D-V-OS2
• Adapter type: 24 × SC duplex positions
• Compatible fibre categories: OM3, OM4, OS2
• Mounting: 19" rack, 1U
• Dimensions (W×D×H): 432 mm × 13 mm × 43.5 mm
• Colour: Grey
• EAN: 4049759258634

How to use

Install the panel in a standard 19" rack or splice box slot using the 1U mounting height. Fit the SC duplex adapters and route pre-terminated patch cords or spliced fibres through the rear opening to the internal splice area. Secure fibres and splices according to installer practice, then connect patch cords to the front-facing SC duplex adapters for patching and testing.

Recommendations

Ensure compatibility of fibre type (OM3/OM4 multimode or OS2 singlemode) before installation. Follow EFB Elektronik installation guidelines and standard fibre handling practices to avoid bending or damaging fibres; maintain proper strain relief and label connections for future maintenance.
